3D Scanners

SIMSCAN 3D Scanner

SIMSCAN, the only hand-sized portable 3D scanner in the market so far, is a disruptive innovation of the traditional 3D scanners’ structure and a revolutionary product in 3D optical metrology industry.

No matter in narrow spaces, or under huge objects, SIMSCAN performs high-quality 3D scanning without any restriction of working environment. Metrology-grade measurement system helps capture every detail and construct 3D model in a very short time. Designed under minimalism, the metal shell enables SIMSCAN to achieve a balance between weight and performance.

Scan mode Ultra-fast scanning 11 blue laser crosses
Hyperfine scanning  7 blue parallel laser lines
Deep hole scanning 1 extra blue laser line
Laser lines in total 30
Accuracy Up to 0.020 mm
Scanning rate Up to 2,020,000 measurements/s
Scanning area Up to 410 mm × 400 mm
Laser class CLASS Ⅱ (eye-safe)
Resolution Up to 0.025 mm
Volume accuracy 0.020 mm + 0.040 mm/m
Volumetric accuracy

(With MSCAN-L15)
0.020 mm + 0.015 mm/m
Stand-off distance 300 mm
Depth of field 250 mm
Output formats pj3,asc,igs,txt,mk2,umk,stl,ply,obj
Operating temperature range -10~40°C
Interface mode USB 3.0
Dimensions 203 mm × 80 mm × 44 mm
Weight 570 g
Patents CN204329903U, CN104501740B, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204902785U, CN106403845B, CN110030946B, CN111833392A, CN212300269U, CN211904059U, CN211696268U, CN306053019S, CN212606697U, CN111932465A, CN111694665A, CN306321502S

Autoscan K Series Automatic 3D Scanning Systems

AutoScan-K series, an automatic 3D inspection system, can realize non-contact and non-destructive inspection using machine vision technology. While ensuring extra-high accuracy, it can effectively carry out online batch scanning and inspection. Featuring 24-hour constant operation, AutoScan-K 3D system helps enterprises reduce manufacturing costs, accelerate product time-to-market and increase return on investment.

Equipped with multiple working modes, AutoScan-K 3D system can adapt to the measurement in various industrial scenarios. Meanwhile, based on cutting-edge machine vision algorithms, it can precisely control the movements of the robot, thus realizing efficient and automatic batch inspection.

Type AutoScan-KM II AutoScan-KM AutoScan-K20
Scan mode Ultra-fast scanning 13 blue laser crosses 11 blue laser crosses 7 red laser crosses
Hyperfine scanning 7 blue parallel laser lines 5 blue parallel laser lines
Large area scanning 11 parallel infrared laser lines
Deep hole scanning 1 extra blue laser line 1 extra red laser line
Laser lines in total 45 41 20
Accuracy 0.020 mm
Scanning rate Up to 1,650,000 measurements/s Up to 1,350,000 measurements/s Up to 650,000 measurements/s
Scanning area Up to 1440 mm × 860 mm Up to 550 mm × 600 mm
Photogrammetry system Standard configuration Built-in
Scanning area 3760 mm × 3150 mm 2500 mm × 3000 mm
Depth of field 2500 mm
Laser class CLASS Ⅱ (eye-safe)
Resolution 0.010 mm
Volumetric accuracy Work alone Up to 0.010 mm + 0.030 mm/m 0.020 mm + 0.035 mm/m
Work with 1m reference bar Up to 0.010 mm + 0.020 mm/m 0.020 mm + 0.020 mm/m
Work with MSCAN-L15 Up to 0.010 mm + 0.015 mm/m 0.020 mm + 0.015 mm/m
Depth of field 925 mm 620 mm
Output formats .stl, .ply, .obj, .igs, .stp, .wrl, .xyz, .dae, .fbx, .ma, .asc or customized
Operating temperature range -10 ~ 40°C
Interface mode USB 3.0
Patents CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1

Autoscan T Series Automatic 3D Scanning System

AutoScan-T42 automated 3D system is a new upgrade for intelligent automatic inspection. It is specially designed for automated quality control in shop-floor conditions, facilitating enterprises to achieve the optimum matching between cost and efficiency.

AutoScan-T42 conducts non-destructive scanning without attaching markers. Its seamless connection with production line greatly contributes to the reduction the workload. The military-grade manufacturing quality presents strong anti-interference and high adaptation to complex and harsh workshop environment. It can be extensively used in national defense, energy, 5G, mold manufacturing, etc., users can easily operate the system owing to one-click start, offline programming, and compatibility with 3D software.

Type AutoScan-T42 AutoScan-T30 AutoScan-T22
Scan mode Ultra-fast scanning 17 blue laser crosses 11 blue laser crosses 7 red laser crosses
Hyperfine scanning 7 blue parallel laser lines
Deep hole scanning 1 extra blue laser line
Laser lines in total 42 30 22
Accuracy 0.025 mm 0.030 mm
Measurement rate up to 1,900,000 measurements/s 1,200,000 measurements/s 480,000 measurements/s
Scanning area 310 mm × 350 mm 275mm×250mm
Laser class CLASS Ⅱ (eye-safe)
Resolution 0.020 mm
Volumetric accuracy 9.1m³ 0.064 mm
16.6m³ 0.078 mm
Volumetric accuracy

(With MSCAN-L15 photogrammetry system)
0.044 mm + 0.015 mm/m
Part size range (recommended) 200 ~ 6000 mm
Stand-off distance 300 mm
Depth of field 320 mm
Output formats .stl, .ply, .obj, .igs, .stp, .wrl, .xyz, .dae, .fbx, .ma, .asc or customized
Operating temperature range -10 ~ 40°C
Interface mode USB 3.0
Patents CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN211121096U, US10309770B2, KR102096806B1

AXE-B11 3D Scanner

AXE-B11 3D scanner opens up a new 3D experience to large-scale 3D measurement without an extra device.

The 11 crossed blue lasers greatly increase the measurement rate to 1,300,000 measurements/s. And the single blue laser line can rapidly obtain 3D data of deep hole and inaccessible positions of complex objects.

The built-in photogrammetry function can scan large-scale objects with ultra-high accuracy individually (volumetric accuracy up to 0.020 mm/m and accuracy up to 0.020 mm).

Type AXE-B11
Laser source 11 blue laser crosses + 1 extra blue laser line
Deep hole scanning Support
Accuracy 0.020 mm
Measurement rate 1,300,000 measurements/s
Scanning area Up to 550 mm × 600 mm
Scanning area (photogrammetry) 2500 mm × 3000 mm
Laser class CLASS Ⅱ(eye-safe)
Resolution 0.025 mm
Volumetric accuracy

(without extra device)
0.020 mm + 0.035 mm/m
Stand-off distance 300 mm
Depth of field 500 mm
Depth of field (photogrammetry) 2500 mm
Output formats .stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customized
Operating temperature range -10 ~ 40°C
Interface mode USB 3.0
Patents CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN206905709U, CN107202554B, US20200225030A1, US10309770B2, KR102096806B1



AXE-B17 3D Scanner

AXE-B17 3D scanner utilizes optical measurement technology with a scanning speed of 2,000,000 measurements/s, quickly capturing 3D data of the object and getting precise deviations on the geometric surface.

With global initiative built-in photogrammetry system, AXE-B17 outputs ultra-large scanning area and metrology-grade measurement accuracy. Getting rid of limitations like size, shape, material and complexity of the object, AXE-B17 can freely choose working modes of efficient high-speed scanning and accurate deep hole scanning. It achieves ultra-high precision 3D inspection of medium to large-sized projects without the aid of extra devices.

Laser source: 17 blue laser crosses (+1 extra bule laser line)
Deep hole scanning: Support
Accuracy: 0.020 mm
Measurement rate: 2,000,000 measurements/s
Scanning area: 860mm × 600mm
Laser class: CLASS Ⅱ (eye-safe)
Resolution: 0.025 mm
Stand-off distance: 300mm
Depth of field: 500mm
Interface mode: USB 3.0

HSCAN771 Handheld 3D Scanner

HSCAN, a metrology-grade 3D scanner, adopts multiple beam lasers to obtain 3D point cloud from object surface and friendly-use to operator.

HSCAN 3D scanner can work with photogrammetry system (MSCAN) while scanning large volumes to improve volumetric accuracy.

This 3D scanner can be conveniently carried to workshop and stable in different environments to perform high accurate 3D scanning.

Weight 0.9kg
Dimension 315*165*105mm
Laser source 7 red laser crosses

(+1 extra red laser)

Scan deep hole support
Measurement rate 480,000 measures/s
Scan area 275mm×250mm
Laser class CLASS Ⅱ(eye safe)
Resolution 0.05mm
Accuracy Up to 0.03mm
Volumetric accuracy 0.02mm+0.06mm/m
Volumetric accuracy

(with MSCAN)
0.02mm+0.025mm/m
Stand-off distance 300mm
Depth of field 250mm
Output format . ply、.xyz、.dae、.fbx、.ma、.obj、.asc、.stl or customized
Work temperature -10~40℃
Interface mode Gigabit Lan
Rapid calibration Complete calibration within 60s
Patents CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN303453606S, US10309770B2, KR102096806B1

iReal 2E Color 3D Scanner

iReal 2E color 3D scanner maximizes the performance in depth of field, scanning area, algorithm, texture reproduction and detail capturing, specially designed for medium to large-sized objects and human body 3D scanning.

iReal 2E adopts the infrared VCSEL structured light technology to bring you the safest and most comfortable 3D scanning experience. Without attaching markers, a quick texture capturing and geometry acquisition can be achieved. Mixed alignment modes meet various scanning situations.

With the advantages of cutting-edge algorithm functions, easy-to-use software, ergonomic design, portable and durable, iReal 2E creates an efficient, accurate and rich texture 3D color measurement solution.

Type iReal 2E
Light source Infrared VCSEL structured light
Visibility Invisible
Safety CLASS І (eye-safe)
Technology Infrared linear-array structured light
Color reproduction 24 bit
Alignment mode without markers Texture/feature/mixed alignments
Human body scanning Invisible light/hair/dark environment scanning; automatically remove the layers of body shaking
Optimal scanning distance  350 mm ~ 650 mm
Effective working range  250 mm ~ 1000 mm
Scanning area  Up to 850 mm x 800 mm
Measurement rate Up to 1,500,000 points/s
Point distance 0.200 mm ~ 3 mm
Point accuracy (single frame) Up to 0.100 mm
Alignment accuracy Up to 0.300 mm/m
Output formats OBJ, STL, PLY, ASC, SK
3D printing Support
Work temperature 5 ~ 40℃
Interface mode USB 3.0
Weight 850 g
Dimensions 140 mm × 94 mm × 258 mm
Configuration 3 sets of invisible light sources; 3 camera groups; 3 sets of auxiliary lights

KSCAN20 3D Scanner

KSCAN20 3D scanner is a professional 3D scanner with the widest applications. It redefines what the portable 3D scanners are.

KSCAN20 3D scanner integrates built-in photogrammetry system and dual laser scan mode which are global initiative technologies.

Benefitting from red and blue laser scan mode, KSCAN20 delivers high efficiency by 650,000 measurements/s and ultra-high detail capturing with 10μm resolution and 0.020 mm accuracy. The built-in photogrammetry system greatly expands the scan area to 2500 mm × 3000 mm and improves volumetric accuracy to 0.035 mm/m.

The probing function of the KSCAN20 3D scanner and working with our 3D software ScanViewer conducts comprehensive and effective 3D digitization solutions for various industries.

Scan mode Standard mode R Hyperfine mode B
Laser source 7 red laser crosses

(+ 1 extra red line)
5 blue parallel laser lines
Accuracy 0.020 mm
Built-in photogrammetry Support
Hyperfine scanning Support
Volumetric accuracy (based on part size) 0.020 mm + 0.035 mm/m 0.010 mm + 0.035 mm/m
Volumetric accuracy with high-precision reference bar  0.020 mm/m
Resolution 0.050 mm 0.010 mm
Measurement rate 650,000 measurements/s
Laser class CLASS Ⅱ

(eye-safe)
Scanning area Up to 550 mm × 600 mm
Scanning area (photogrammetry) 2500 mm × 3000 mm
Stand-off distance 500 mm 180 mm
Depth of field 620 mm 200 mm
Depth of field (photogrammetry) 2500 mm
Single point repeatability 0.030 mm
Tracking frequency (portable CMM) 60 hz
Edge accuracy 0.030 mm
Pipe inspection in software Support YBC/LRA data
Output formats .stl, .ply, .obj, .igs, .stp, .wrl, .xyz, .dae, .fbx, .ma, .asc or customized
Interface mode USB 3.0
Operating temperature range -10 ~ 40 °C
Patents CN204902790U, CN206905709U, CN107202554, CN204902785U, CN106403845, WO2018049843, CN106500627, WO2018072434, CN106500628 , WO2018072433, CN206132003U, CN104501740,US10309770B2

KSCAN-Magic Composite 3D Scanner

KSCAN-Magic composite 3D scanner opens up the first introduction of infrared laser + blue laser technology with five standard working modes: global initiative infrared laser large area scanning, blue laser crosses fast scanning, blue parallel laser fine scanning, single blue laser deep hole scanning, built-in photogrammetry system.

KSCAN-Magic series have a revolutionary breakthrough in performance. Its unparalleled scanning speed, accuracy, detail, scanning area, and depth of field greatly optimize the 3D measurement workflows and accelerate the product time-to-market. To obtain data on hard-to-reach or complex surfaces, KSCAN-Magic series can be equipped with portable CMM K-Probe, providing a comprehensive 3D digital solution for precision measurement.

Scan mode Ultra-fast scanning 11 blue laser crosses

(+ 1 extra blue laser line)
Hyperfine scanning  7 blue parallel laser lines
Large area scanning 11 parallel infrared laser lines
Deep hole scanning Support
Laser lines in total 41
Accuracy 0.020 mm
Scanning rate Up to 1,350,000 measurements/s
Scanning area Up to 1440 mm × 860 mm
Photogrammetry system Standard configuration Built-in
Scanning area 3760 mm × 3150 mm
Depth of field 2500 mm
Laser class CLASS Ⅱ (eye-safe)
Resolution  Up to 0.010 mm
Volume accuracy Work alone Up to 0.010 mm + 0.030 mm/m
Work with 1m reference bar Up to 0.010 mm + 0.020 mm/m
Work with MSCAN-L15 Up to 0.010 mm + 0.015 mm/m
Stand-off distance 300 mm
Depth of field 925 mm
Portable CMM K-Probe Optional Support
Single point repeatability 0.030 mm
Tracking frequency 60 hz
Intelligent edge inspection module Optional Support
Edge accuracy 0.030 mm
Pipe inspection module Optional Support
Output formats YBC / LRA / compensation value
Output formats .stl, .ply, .obj, .igs, .stp, .wrl, .xyz, .dae, .fbx, .ma, .asc or customized
Operating temperature range -10~40°C
Interface mode USB 3.0
Patents CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1

MSCAN-L15 PHOTOGRAMMETRY SYSTEM

MSCAN-L15 photogrammetry system is tailored to deliver high-precision geometric measurements of large-scale workpieces. With a large shooting area and wide depth of field, MSCAN-L15 performs volumetric accuracy of 0.015 mm/m for large-scale projects and parts from 2 m to 10 m.

Compatible with 3D inspection devices, MSCAN-L15 can fulfill stricter measurement accuracy requirements. Unique HDR mode makes strong environment adaptability. Due to the ergonomic design, it creates great portability and can be held for a long time.

MSCAN-L15 ensures precise, efficient and easy-to-use 3D solutions for large-scale projects in 3D inspection, product development, quality control, etc.

Type MSCAN-L15
Volumetric accuracy 0.015 mm/m
Volumetric accuracy (work with 3D scanners) PRINCE335 PRINCE775 0.020 mm + 0.015 mm/m (Standard mode R)

0.010 mm + 0.015 mm/m (Hyperfine mode B)
KSCAN20 0.020 mm + 0.015 mm/m (Standard mode R)

0.010 mm + 0.015 mm/m (Hyperfine mode B)
HSCAN331 HSCAN771 0.020 mm + 0.015 mm/m
AXE-G7 AXE-B11 0.020 mm + 0.015 mm/m
TrackScan-P22 0.044 mm + 0.015 mm/m
Device type Industrial camera and lens(not DSLR)
Weight ≤0.58 KG
Obtain mark point position Real-time calculate & display
Interface mode Gigabit Lan
Depth of field 6.5 m
Shooting area Up to 9.4 m x 6.9 m

PRINCE 335 Handheld 3D Scanner

High-efficiency and ultra-high detail are unique advantages of the PRINCE 3D scanner.

Benefiting from red and blue laser working mode, PRINCE 3D laser scanner is easy to scan large planes even small coins. It reaches 480,000 measurements/s under red laser scan mode and 0.020 mm resolution to capture tiny details with blue laser scan mode.

This 3D scanner can be widely used to industrial design, reverse engineering, quality control, quality inspection, culture relic 3D digitalization, 3D film, 3D game, VR/AR, etc.

Mode Standard mode R Hyperfine mode B
Weight 0.95kg
Dimensions 315*165*105 mm
Laser source 3 red laser crosses

(+1 extra red laser)
5 blue parallel laser lines
Deep hole scanning Support
Hyperfine scanning Support
Measurement rate 265,000 measurements/s 320,000 measurements/s
Camera frame rate 60 fps 120 fps
Laser class CLASSⅡ (eye-safe)
Resolution 0.050 mm 0.020 mm
Accuracy 0.030 mm
Volumetric accuracy

(without extra device)
0.020 mm + 0.08 mm/m 0.01 mm + 0.08 mm/m
Volumetric accuracy

(with MSCAN)
0.020 mm + 0.025 mm/m 0.010 mm + 0.025 mm/m
Stand-off distance 300 mm 150 mm
Depth of field 250 mm 100 mm
Scanning area 225 mm ~ 250mm 200 mm ~ 200mm
Output formats .ply、.xyz、.dae、.fbx、.ma、.obj、.asc、.stl or customized
Operating temperature range -10 ~ 40℃
Interface mode Gigabit Lan
Patents CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN209310754U, US10782126, KR102073205B1, US10309770B2, KR102096806B1

TrackScan-P42 3D System

TrackScan-P42 3D system adopts intelligent optical tracking measurement technology and high-quality optical equipment. It carries out ultra-high precision dynamic 3D measurement without markers. This 3D system is widely applied to quality control, product development, reverse engineering, etc.

By freely switching multiple working modes, TrackScan-P42 caters to different scanning situations. 17 crossed blue laser lines enable ultra-fast scanning rate and smooth experience. 7 parallel blue laser lines work for detail capturing. Single blue laser line aims to fast collecting 3D data of deep holes and dead angle positions.

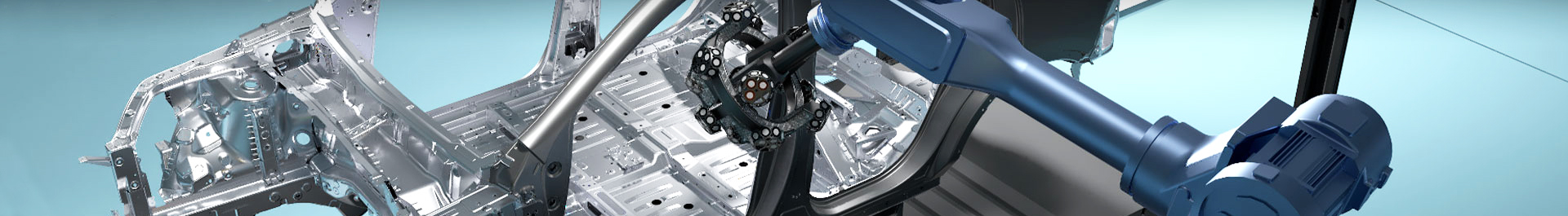

The equipped wireless portable CMM T-Probe delivers flexible measurement, and precisely captures high-precision 3D data of gaps, hole positions, grooves and complex surface. By working with robot-arm, TrackScan-P42 can also realize intelligent online automated 3D inspection





Scan mode Ultra-fast scanning 17 blue laser crosses
Hyperfine mode B 7 blue parallel laser lines
Deep hole scanning Deep hole scanning
Laser lines in total 42
Accuracy 0.025 mm
Measurement rate 1,900,000 measurements/s
Scanning area 310 mm x 350 mm
Laser class ClassⅡ (eye-safe)
Resolution 0.020 mm
Volumetric accuracy 9.1 m³ 0.064 mm
16.6 m³ 0.078 mm
Volumetric accuracy

(With MSCAN-L15 photogrammetry system )
0.044 mm + 0.015 mm/m
Portable CMM T-Probe Optional Support
Single point repeatability 0.030 mm
Part size range (recommended) 200 ~ 6000 mm
Stand-off distance 300 mm
Depth of field 320 mm
Output formats .stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customized
Operating temperature range -10 ~ 40 °C
Interface mode USB 3.0

About Company

Our clients range from FTSE companies, to large organisations and some small local businesses who are striving to expand.

To see a detailed list of our works and the progress please see our project page.

Cape Town Office

25 Mail Street, Western Province Park, Epping, Cape Town, 7460
+27 21 534 5351
FAX: +27 21 534 3374

Johannesburg Office

Corner of Atlas and Templehof South Road, Bonaero Park, Johannesburg
+27 11 970 7005
FAX: +27 86 678 9360
