Product Brands & Models 3DeVOK MT
Light Sources 34 Blue Laser Lines 22 Infrared Laser Lines [invisible] Infrared VCSEL Structured Light [invisible]
Class of Lasers Class Ⅱ (Eye-safe) Class Ⅰ (Eye-safe)
Scan Mode Blue Line Laser

(Supports markerless scanning)		 Infrared Line Laser

(Supports markerless and invisible-light scanning)		 Infrared Linear-array Structured Light-Speckle

(Supports markerless, invisible light scanning, partial fine scanning, and rapid scanning at ultra-long-distance range and ultra-large FoV)
Basic Accuracy✱ Up to 0.04 mm
Volumetric Accuracy✱ Up to 0.04 mm + 0.06 mm/m
Point Distance 0.05 – 5 mm 0.1 – 5 mm Regular Scan: 0.2-5 mm

Fine Scan: 0.1-5 mm
Alignment Mode Hybrid Alignment (Marker&Texture&Geometric features), Marker Alignment, Texture Feature Alignment and Geometric Feature Alignment Hybrid Alignment (Marker&Texture&Geometric features), Texture Feature Alignment and Geometric Feature Alignment
Ability to Capture Texture Yes
Scanning Distance 150 – 1000mm 150 – 1500mm
Field of View 140 mm × 140 mm – 490 mm × 490 mm 50 mm × 75 mm – 1100mm × 1000mm
Scanning Speed Up to 3,300,000 Points/s Up to 2,450,000 Points/s Up to 4,500,000 Points/s
Output Formats *.obj, *.stl, *ply, *.asc, *.mk2,*.txt,*.epj,*.apj,*.spj,*.map, *sk
The Ability for 3D Printing Supports .stl, .obj and other formats
Working Temperature Range 0 – 40 ℃
Working Humidity Range 10% – 90% RH (Non-condensing)
Interface USB 3.0
Scanner Dimensions & Weight Dimensions: 215 mm × 73 mm × 53 mm; Weight: 640 g
Power Source DC: 12 V, 5.0 A
Certifications CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC
Recommended Configurations for PC OS: Win10/Win11, 64-bit; CPU: i7-13650HX and above; RAM: 32GB and above;

Graphic Card: NVIDIA discrete graphics card, NVIDIA RTX3060 and above; Graphics memory: 6GB and above
✱ It is the results of the laboratory’s theoretical accuracy test, which belong to uncertainty errors.

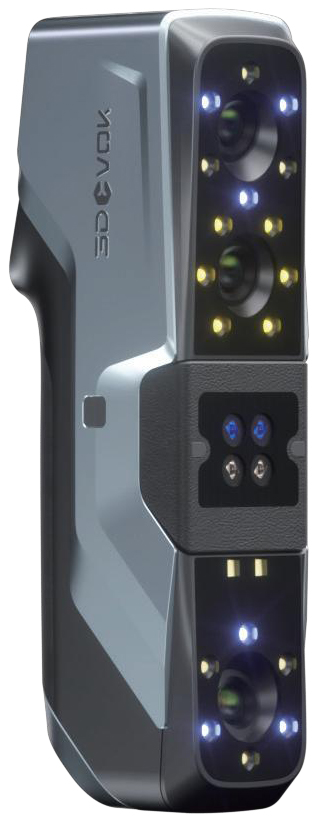

The 3DeVOK MT is a professional and versatile 3D scanner that stands out for its exceptional performance. Based on industrial-grade 3D scanning technology, it incorporates both lasers and speckles to offer you a magic tool. With professional scanning software, flexible parameter settings, intuitive interaction, and reliable performance, it significantly enhances work efficiency. It is an excellent solution for scanning objects of almost any kind, making it ideal for artistic design, reverse engineering, 3D measurement, 3D visualization, 3D printing, research, education and more.

Key Features: Efficient scanning with 34 blue laser lines, Marker-free scanning with laser modes, Smart combination of large-area infrared speckle and partial fine scanning, Advanced hybrid alignment, Invisible light scanning, Easy scanning for black and reflective objects without spray, Outdoor scanning.

3 Types of Light Sources
Accuracy 0.04mm
Resolution 0.05mm
Scanning Speed 4,500,000 points/s
Scanning Area 1100mm×1000mm
Scanning Distance 1500mm

Industrial & Automotive Parts / Product Design
Marker Alignment with 34-line blue laser & 22-line infrared laser
High Data Quality: Accuracy reaching 0.04mm, resolution up to 0.05mm
Strong Material Adaptability: Capture black and reflective surfaces without scanning spray
Fast Scanning: Frame rates up to 70 FPS while a maximum single-frame scanning area of 490mm×490mm
Efficient Operation: Marker distance of 10-12cm, reducing marker usage
Real-time Scanning: New real-time mesh display algorithm for easy monitoring of scan results
3D Data Compatibility: Support export of formats like asc and.stl, compatible with mainstream CAD and reverse engineering software
Recommended Object Size: 0.05–5 m
Applications: CAD design, reverse engineering, automotive customization, 3D printing, virtual simulation, and more
