Autoscan K

3D Scanners

Autoscan K

Type AutoScan-KM II AutoScan-KM AutoScan-K20
Scan mode Ultra-fast scanning 13 blue laser crosses 11 blue laser crosses 7 red laser crosses
Hyperfine scanning 7 blue parallel laser lines 5 blue parallel laser lines
Large area scanning 11 parallel infrared laser lines
Deep hole scanning 1 extra blue laser line 1 extra red laser line
Laser lines in total 45 41 20
Accuracy 0.020 mm
Scanning rate Up to 1,650,000 measurements/s Up to 1,350,000 measurements/s Up to 650,000 measurements/s
Scanning area Up to 1440 mm × 860 mm Up to 550 mm × 600 mm
Photogrammetry system Standard configuration Built-in
Scanning area 3760 mm × 3150 mm 2500 mm × 3000 mm
Depth of field 2500 mm
Laser class CLASS Ⅱ (eye-safe)
Resolution 0.010 mm
Volumetric accuracy Work alone Up to 0.010 mm + 0.030 mm/m 0.020 mm + 0.035 mm/m
Work with 1m reference bar Up to 0.010 mm + 0.020 mm/m 0.020 mm + 0.020 mm/m
Work with MSCAN-L15 Up to 0.010 mm + 0.015 mm/m 0.020 mm + 0.015 mm/m
Depth of field 925 mm 620 mm
Output formats .stl, .ply, .obj, .igs, .stp, .wrl, .xyz, .dae, .fbx, .ma, .asc or customized
Operating temperature range -10 ~ 40°C
Interface mode USB 3.0
Patents CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1

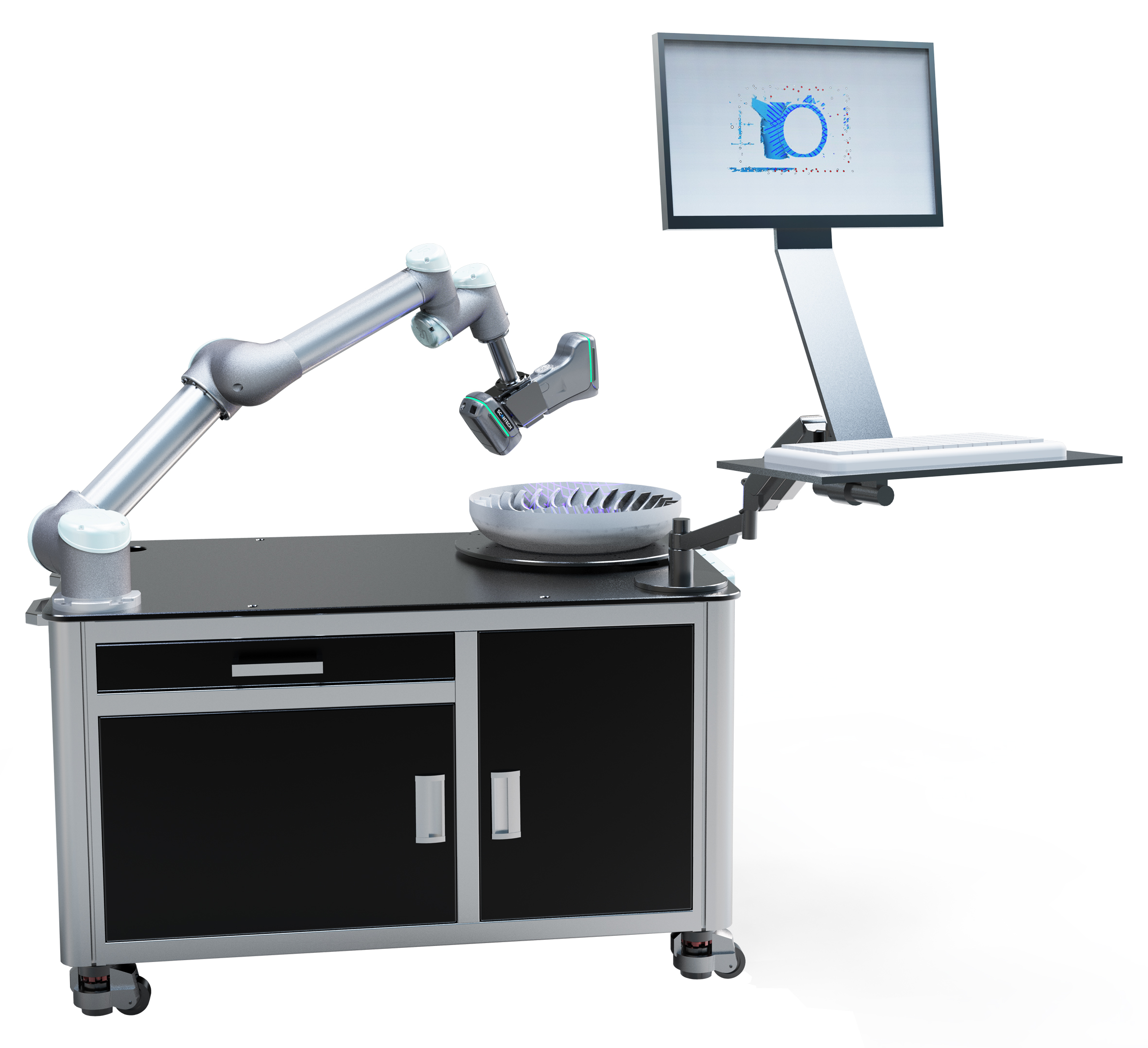

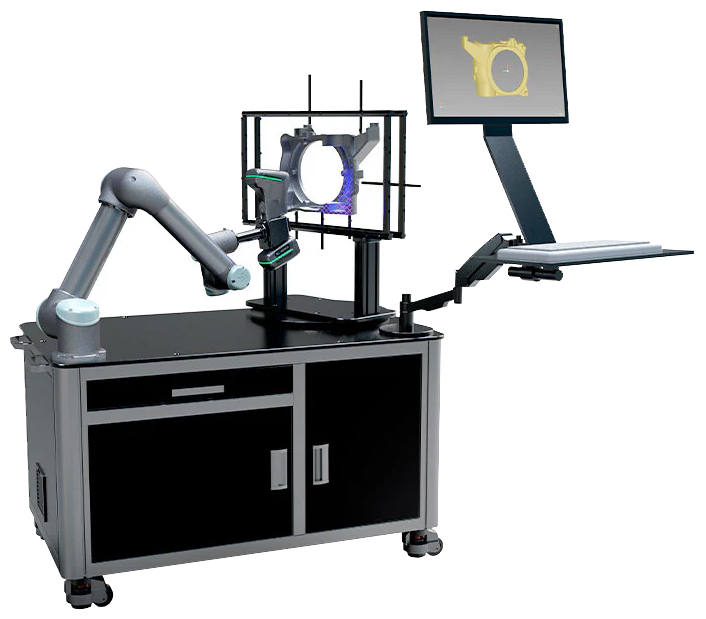

AutoScan-K series, an automatic 3D inspection system, can realize non-contact and non-destructive inspection using machine vision technology. While ensuring extra-high accuracy, it can effectively carry out online batch scanning and inspection. Featuring 24-hour constant operation, AutoScan-K 3D system helps enterprises reduce manufacturing costs, accelerate product time-to-market and increase return on investment.

Equipped with multiple working modes, AutoScan-K 3D system can adapt to the measurement in various industrial scenarios. Meanwhile, based on cutting-edge machine vision algorithms, it can precisely control the movements of the robot, thus realizing efficient and automatic batch inspection.
