KSCAN Magic
| Scan mode | Ultra-fast scanning | 11 blue laser crosses (+ 1 extra blue laser line) |
|||
| Hyperfine scanning | 7 blue parallel laser lines | ||||
| Large area scanning | 11 parallel infrared laser lines | ||||
| Deep hole scanning | Support | ||||
| Laser lines in total | 41 | ||||
| Accuracy | 0.020 mm | ||||
| Scanning rate | Up to 1,350,000 measurements/s | ||||
| Scanning area | Up to 1440 mm × 860 mm | ||||
| Photogrammetry system | Standard configuration | Built-in | |||
| Scanning area | 3760 mm × 3150 mm | ||||
| Depth of field | 2500 mm | ||||
| Laser class | |||||
| Resolution |
Up to 0.010 mm |
||||
| Volume accuracy | Work alone | Up to 0.010 mm + 0.030 mm/m | |||
| Work with 1m reference bar | Up to 0.010 mm + 0.020 mm/m | ||||
| Work with MSCAN-L15 | Up to 0.010 mm + 0.015 mm/m | ||||
| Stand-off distance | 300 mm | ||||
| Depth of field | 925 mm | ||||
| Portable CMM K-Probe | Optional | Support | |||
| Single point repeatability | 0.030 mm | ||||
| Tracking frequency | 60 hz | ||||
| Intelligent edge inspection module | Optional | Support | |||
| Edge accuracy | 0.030 mm | ||||
| Pipe inspection module | Optional | Support | |||
| Output formats | YBC / LRA / compensation value | ||||
| Output formats | .stl, .ply, .obj, .igs, .stp, .wrl, .xyz, .dae, .fbx, .ma, .asc or customized | ||||
| Operating temperature range | -10~40°C | ||||
| Interface mode | USB 3.0 | ||||
| Patents | CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1 | ||||

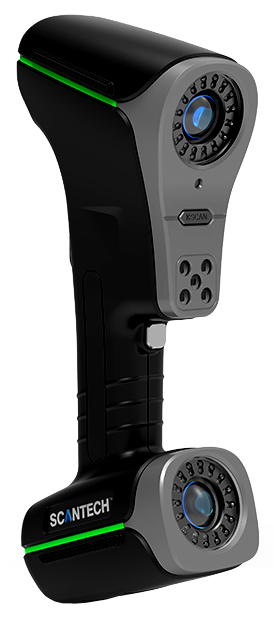

KSCAN-Magic composite 3D scanner opens up the first introduction of infrared laser + blue laser technology with five standard working modes: global initiative infrared laser large area scanning, blue laser crosses fast scanning, blue parallel laser fine scanning, single blue laser deep hole scanning, built-in photogrammetry system.
KSCAN-Magic series have a revolutionary breakthrough in performance. Its unparalleled scanning speed, accuracy, detail, scanning area, and depth of field greatly optimize the 3D measurement workflows and accelerate the product time-to-market. To obtain data on hard-to-reach or complex surfaces, KSCAN-Magic series can be equipped with portable CMM K-Probe, providing a comprehensive 3D digital solution for precision measurement.
