MSCAN-L15
| Type | MSCAN-L15 | ||
|---|---|---|---|
| Volumetric accuracy | 0.015 mm/m | ||
| Volumetric accuracy （work with 3D scanners） | PRINCE335 PRINCE775 | 0.020 mm + 0.015 mm/m （Standard mode R） 0.010 mm + 0.015 mm/m （Hyperfine mode B） |
|
| KSCAN20 | 0.020 mm + 0.015 mm/m （Standard mode R） 0.010 mm + 0.015 mm/m （Hyperfine mode B） |
||
| HSCAN331 HSCAN771 | 0.020 mm + 0.015 mm/m | ||
| AXE-G7 AXE-B11 | 0.020 mm + 0.015 mm/m | ||
| TrackScan-P22 | 0.044 mm + 0.015 mm/m | ||
| Device type | Industrial camera and lens（not DSLR) | ||
| Weight | ≤0.58 KG | ||
| Obtain mark point position | Real-time calculate & display | ||
| Interface mode | Gigabit Lan | ||
| Depth of field | 6.5 m | ||
| Shooting area | Up to 9.4 m x 6.9 m | ||

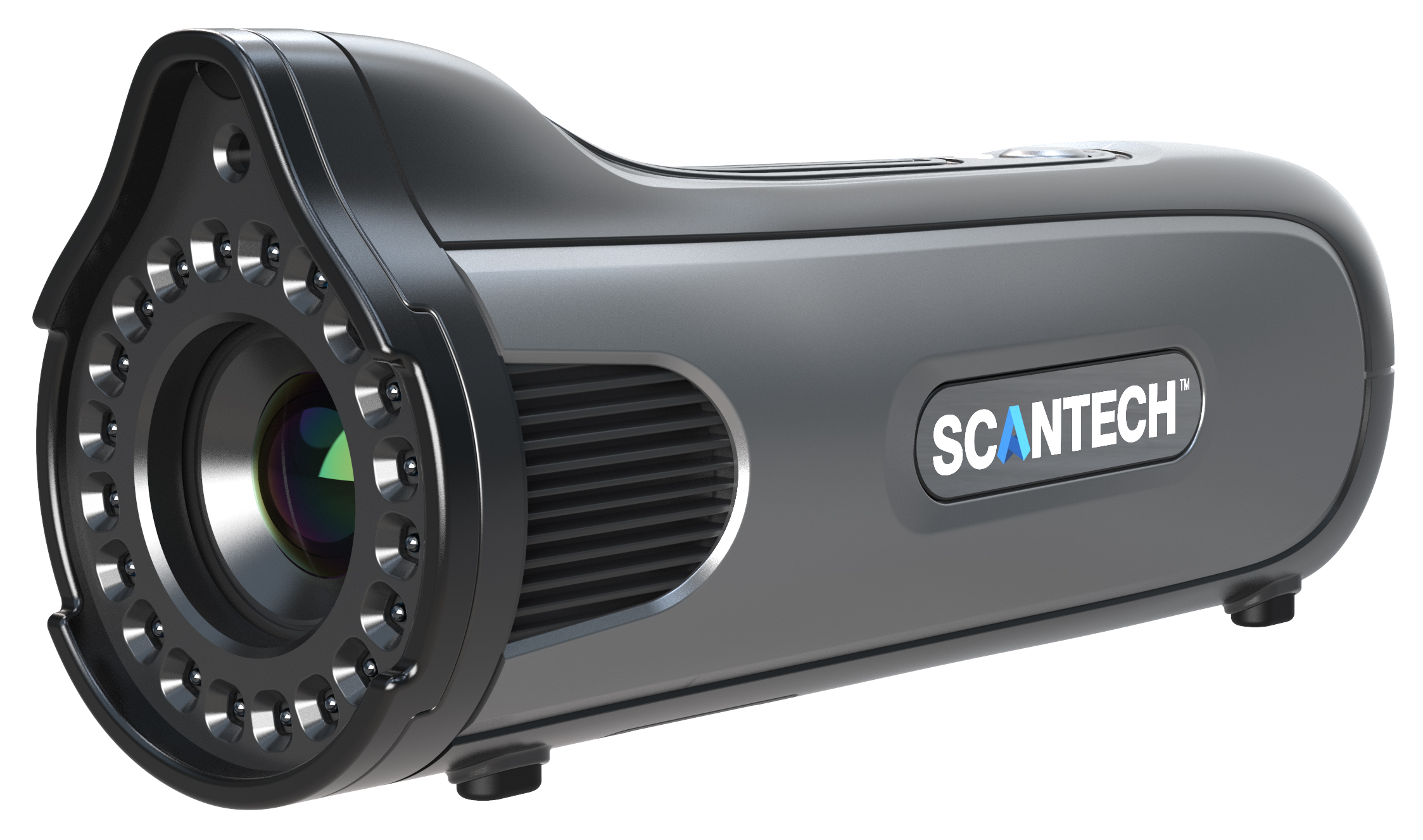

MSCAN-L15 photogrammetry system is tailored to deliver high-precision geometric measurements of large-scale workpieces. With a large shooting area and wide depth of field, MSCAN-L15 performs volumetric accuracy of 0.015 mm/m for large-scale projects and parts from 2m to 10m.
Compatible with 3D inspection devices, MSCAN-L15 can fulfill stricter measurement accuracy requirements. Unique HDR mode makes strong environment adaptability. Due to the ergonomic design, it creates great portability and can be held for a long time.
MSCAN-L15 ensures precise, efficient and easy-to-use 3D solutions for large-scale projects in 3D inspection, product development, quality control, etc.
