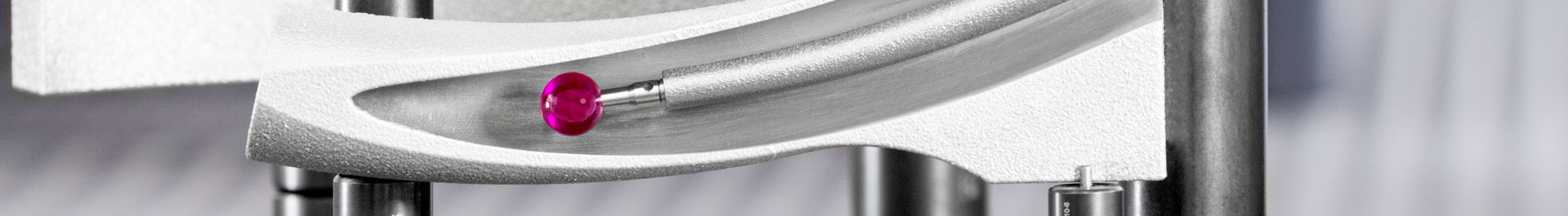

Styli and Probes

WD Hearn provide the full range of Renishaw, Zeiss and Faro Styli for all probing applications. Thread sizes ranging from M2 to M6 allows for replacement of any standard, and majority of specialised probing systems on either CMM, machine tool probe or articulated arm systems. We also have a range of styli material configurations, including standard ruby tips, silicon nitride or zirconia, with stainless steel, tungsten carbide or ceramic stems to suit any application.

Custom styli with specialised threads and lengths as well as additively manufactured styli for complex metrology applications are available on request.

If you are unsure of what styli you should be using for your application, feel free to contact us for some expert advice on styli selection and applications.

Zeiss Styli

Aside from the hundreds of available styli in the Zeiss range, Renishaw also supplies a wide variety of accessories for the Zeiss range of probe heads. This includes styli holders and extensions, knuckles, cubes, adaptors, as well as an assortment of other tools and accessories. We are pleased to announce the introduction of styli and adaptor plates for the Zeiss Vast XXT scanning sensor. TL1, TL2 and TL3 adaptor plates are available along with a vast selection of M3 styli designed specifically for these plates.









TP20 Probe

The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines. Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available. The stylus mounting thread accepts styli from the Renishaw M2 range.



Module Application guide Maximum extension on PH10 series head Weight (body and module)
LF The low force stylus module, identified by a green cap, is suited to applications that require low trigger force, e.g. rubber seals. 300 mm (11.81 in) 22 g (0.78 oz)

SF

EM1

EM2

The standard force stylus modules, identified by black caps, are suited to the majority of applications.

300 mm (11.81 in)

300 mm (11.81 in)*

300 mm (11.81 in)*

22 g (0.78 oz)

28 g (0.99 oz)

30 g (1.06 oz)

MF The medium force stylus module, identified by a grey cap, is for use where a higher trigger force than standard is required. 300 mm (11.81 in) 22 g (0.78 oz)
EF The extended force stylus module is identified by a brown cap. Typically, this stylus module will only be required with large stylus assemblies, and where spurious ‘air' triggers caused by machine vibration and acceleration, preclude the use of either SF, LF or MF modules. 300 mm (11.81 in) 22 g (0.78 oz)
6W The 6-way stylus module, identified by a blue cap, has been designed for applications requiring measurement in the –Z direction, for example when measuring the width of undercuts. 300 mm (11.81 in) 22 g (0.78 oz)

NOTE: Dependant on CMM used and operating conditions.

Module type and test stylus length

Trigger force XY**

Trigger force Z

Overtravel force XY

Overtravel force +Z

Overtravel force -Z

Overtravel displacement XY

Overtravel displacement +Z

Overtravel displacement ‑Z

LF

10 mm

0.055 N

0.65 N

0.09 N

1.15 N

-

±14°

3.1 mm

(0.12 in)

-

SF

EM1

EM2

10 mm

0.08 N

0.75 N

0.2 N to

0.3 N

3.5 N

-

±14°

4 mm

(0.16 in)

-

MF

25 mm

0.10 N

1.9 N

0.2 N to

0.4 N

7 N

-

±14°

3.7 mm

(0.15 in)

-

EF

50 mm

0.10 N

3.2 N

0.2 N to

0.5 N

10 N

-

±14°

2.4 mm

(0.09 in)

-

6W

10 mm

0.14 N

1.60 N

0.25 N

2.5 N

9 N

±14°

4.5 mm

(0.18 in)

1.5 mm

(0.06 in)

** Low force direction

Above data applies for test conditions as follows: Stylus length as stated above. Stylus velocity 480 mm/min (1.57 ft/min).

TP200 Probe

The TP200 probe uses micro strain gauge transducers to deliver excellent repeatability and accurate 3D form measurement even with long styli. The sensor technology gives sub-micron repeatability and eliminates the lobing characteristics encountered with kinematic probes. The solid state ASIC electronics within the probe ensure reliable operation over millions of trigger points. The TP200B uses the same technology as TP200 but has been designed to have higher tolerance to vibration. This helps to overcome the problem of 'air' trigger generation which can arise from vibrations transmitted through the CMM or when using long styli with faster positioning speeds.



Specification summary

TP200 TP200B

Principal application

DCC CMM where high accuracy is required.

As TP200 but where 'air' trigger events occur.

Sense directions

6-axis: ±X, ±Y, ±Z

6-axis: ±X, ±Y, ±Z

Unidirectional repeatability (2σ µm)

Trigger level 1:  0.40 µm (0.000016 in)

Trigger level 2:  0.50 µm (0.00002 in)

Trigger level 1:  0.40 µm (0.000016 in)

Trigger level 2:  0.50 µm (0.00002 in)

XY (2D) form measurement deviation

Trigger level 1:  ±0.80 µm (0.000032 in)

Trigger level 2:  ±0.90 µm (0.000036 in)

Trigger level 1:  ±1 µm (0.00004 in)

Trigger level 2:  ±1.2 µm (0.000047 in)

XYZ (3D) form measurement deviation

Trigger level 1:  ±1 µm (0.00004 in)

Trigger level 2:  ±1.40 µm (0.000056 in)

Trigger level 1:  ±2.50 µm (0.0001 in)

Trigger level 2:  ±4 µm (0.00016 in)

Repeatability of stylus change

With SCR200:  ±0.50 µm (0.00002 in) max.

Manual:  ±1 µm (0.00004 in) max.

With SCR200:  ±0.50 µm (0.00002 in) max.

Manual:  ±1 µm (0.00004 in) max.

Trigger force (at stylus tip)

XY plane (all modules):  0.02 N

Z-axis  (all modules):  0.07 N

XY plane (all modules):  0.02 N

Z-axis  (all modules):  0.07 N

Overtravel force (@ 0.50 mm displacement)

XY plane (SF / EO module):  0.2 N to 0.4 N

XY plane (LF module):  0.1 N to 0.15 N

Z-axis (SF / EO module):  4.90 N

Z-axis (LF module):  1.60 N

XY plane (SF / EO module):  0.2 N to 0.4 N

XY plane (LF module):  0.1 N to 0.15 N

Z-axis (SF / EO module):  4.90 N

Z-axis (LF module):  1.60 N

Weight (probe sensor and module)

22 g (0.78 oz)

22 g (0.78 oz)

Maximum extension (if on a PH10 PLUS series head)

300 mm (11.81 in)

300 mm (11.81 in)

Maximum recommended stylus length (M2 styli range)

SF / EO module:  50 mm (1.97 in) steel to 100 mm (3.94 in) GF

LF module:  20 mm (0.79 in) steel to 50 mm (1.97 in) GF

SF / EO module:  50 mm (1.97 in) steel to 100 mm (3.94 in) GF

LF module:  20 mm (0.79 in) steel to 50 mm (1.97 in) GF

Mounting method

M8 thread

M8 thread

Suitable interface

PI 200-3UCC

PI 200-3UCC

Stylus module changing rack

Automatic:  SCR200

Manual:  MSR1

Automatic:  SCR200

Manual:  MSR1

Stylus range

M2

M2

TP200 stylus modules

The stylus module is mounted on the TP200 / TP200B probe body via a highly repeatable magnetic kinematic joint, providing a rapid stylus changing capability and probe overtravel protection.

There are three modules available, with two different overtravel forces.

Module

SF (standard force) LF (low force) EO (extended overtravel)

Application

General use.

Small diameter stylus balls or where minimum force is essential.

Extra overtravel to enable the CMM to stop safely from higher probing speeds.

Comments

Styli up to 100 mm long and ball diameter > 1 mm.

Balls less than 1 mm diameter.

Same overtravel force as SF.

Extra 8 mm of overtravel in probe Z-axis.

SP25M Scanning Probe System

At only 25mm in diameter, the SP25M is the world’s most compact scanning system and comprises two sensors in a single housing. Users can switch between a choice of five scanning modules (which can carry M3 styli with lengths from 20 mm to 400 mm) and an adaptor module that is compatible with Renishaw's TP20 range of probe modules. This capability enables scanning and touch-trigger probing in a single probe system.  The SP25M's compact size and autojoint mounting makes it compatible with the PH10M PLUS / PH10MQ PLUS and PH6M probe heads. It can also be mounted on a multiwired extension bar. Together, these combinations permit excellent reach and access to part features.



Characteristic

Requirements

Probe attributes

Scanning with 3-axis measurement (X, Y, Z)

Touch-trigger probing using TP20 modules

Measurement range

±0.5 mm deflection in all directions in all orientations

Overtravel range



X, Y

±2 mm

+Z

1.7 mm

-Z

1.2 mm

Resolution

Capable of <0.1 μm

Spring rate

Nominally 0.6 N/mm - when using a module's shortest specified stylus

Nominally 0.2 N/mm - when using a module's longest specified stylus

Probe dimensions

Ø25 mm × length dependant on module used

Weight



SP25M body

65 g (2.29 oz)

SM25-1 scanning module

35 g (1.23 oz) (including SH25-1 but excluding stylus)

SM25-2 scanning module

40 g (1.41 oz) (including SH25-2 but excluding stylus)

SM25-3 scanning module

49 g (1.73 oz) (including SH25-3 but excluding stylus)

SM25-4 scanning module

71 g (2.50 oz) (including SH25-4 but excluding stylus)

SM25-5 scanning module

45 g (1.59 oz) (including SH25-5 but excluding stylus)

TM25-20 adaptor module

40 g (1.41 oz) (including TP20 STD module, but excluding stylus)

Effective stylus length range

(Always observe the specified stylus range for the scanning module being used. Use Renishaw's M3 range of styli.)



SM25-1 + SH25-1

EWL 20 mm - 50 mm (0.79 in - 1.97 in) using 20 mm - 50 mm stylus range

SM25-2 + SH25-2 / SH25-2A

EWL 50 mm - 105 mm (1.97 in - 4.14 in) using 20 mm - 75 mm stylus

SM25-3 + SH25-3 / SH25-3A

EWL 120 mm - 200 mm (4.73 in - 7.88 in) using 20 mm - 100 mm stylus

SM25-4 + SH25-4 / SH25-4A

EWL 220 mm - 400 mm (8.67 in - 15.75 in) using 20 mm - 200 mm stylus

SM25-5 + SH25-5

EWL 20 mm - 100 mm (0.79 in - 3.94 in) using 20 mm - 100 mm stylus

Mounting

Multiwired autojoint - compatible with PH10M PLUS / PH10MQ PLUS and PH6M probe heads, extension bars and ACR1 / ACR3 sensor changers

Crash protection



±X, ±Y, -Z

Via break out of module or stylus holder

+Z

Via integral bump-stop design

Signal outputs

Non-linear and non-orthogonal analogue outputs - rate gain and resolution are not fixed

Characteristic

Requirements

Signal outputs

Non-linear and non-orthogonal analogue outputs - rate gain and resolution are not fixed

Power supply

+12 V (±5%), -12 V (+10% / +8%), +5% (+10% / -13%) dc at probe

Probe calibration

Requires that non-linear, third order polynomial calibration method is used

Change rack options



FCR25

Three port unit which mounts on MRS

FCR25-L3

Three port standalone rack version

FCR25-L6

Six port standalone rack version

FCR25 TC

Three port unit which mounts on MRS and warms scanning module

FCR25 TC-L3

Three port standalone rack version

Interface options



UCC S3



UCC2-2 systems



OEM controller systems

AC3 interface card



Interface for TP20 also required if applicable
