Simscan E
 Type SIMSCAN-E
Scan mode Ultra-fast scanning 63 blue laser lines (Triple Cross Technology)
Hyperfine scanning 17 blue parallel laser lines
Deep hole scanning 1 extra blue laser line
Accuracy(1) Up to 0.020 mm
Scanning rate up to 6,300,000 measurements/s
Scanning area up to 700 mm × 600 mm
Laser class CLASSⅡ (eye-safe)
Resolution up to 0.020 mm
Volume accuracy(2) Standard 0.015 mm + 0.035 mm/m
Paired with MSCAN-L15 0.015 mm + 0.012 mm/m
Stand-off distance 300 mm
Depth of field 550 mm
Output formats .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Dimensions 203 mm × 80 mm × 44 mm
Weight 600 g
Operating temperature range -10°C‒40°C
Interface mode USB3-B
Wireless standard Wi-Fi 6, 802.11a/b/g/n/ac
Patents CN204329903U, CN104501740B, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204902785U, CN106403845B, CN110030946B, CN212300269U, CN211904059U, CN211696268U, CN306053019S, CN212606697U, CN306321502S

(1)  ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated.

(2)  ISO 17025 accredited: Based on VDI/VDE 2634 Part3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.

*Our company reserves the right to interpret and modify the parameters and images in this manual within the scope of law.

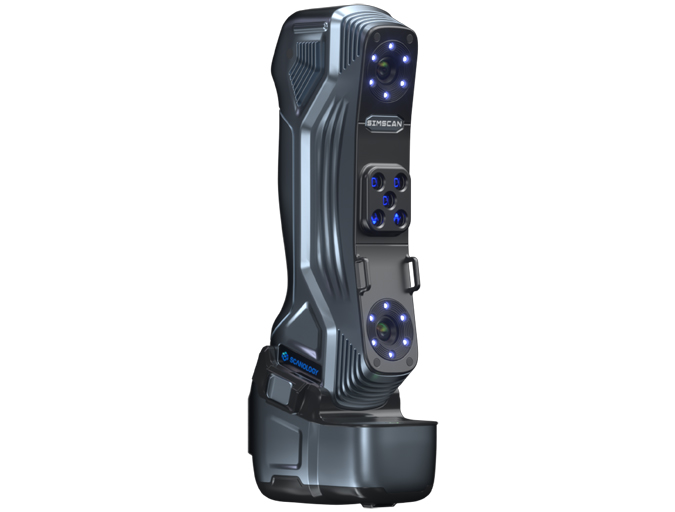

The SIMSCAN-E is an intelligent, wireless, and palm-sized 3D scanner that combines a lightweight design with exceptional performance. Featuring advanced edge computing and wireless data transfer, it sets a new standard for flexible, wireless and free 3D scanning.

With robust algorithm and high-definition industrial cameras, SIMSCAN-E can capture 3D data with remarkable precision and efficiency, measuring up to 6.3 million measurements/s. It boasts three scanning modes, ultra-fast, hyperfine, and deep hole. This versatility allows it to handle a wide range of tasks effortlessly, from scanning in tight spaces to measuring complex structures.

SIMSCAN-E combines a compact 203 × 80 × 44 mm full-metal design, lightweight 600 g build, and built-in wireless capabilities to deliver true one-handed portability.

Powered by its innovative algorithm and aerospace-grade components, its measurement accuracy is up to 0.020 mm, meeting the demands of industrial-grade high-precision 3D scanning and measurement. From product development to inspection, we help users track and record the data during the entire product lifecycle.

Flexible and lightweight, this portable 3D scanner supports instant scanning in various environments. Its short-distance camera design, with a steep view angle, greatly enhances the ability to scan hidden areas such as gaps, slots, deep holes, and channels. This significantly improves data integrity, providing more complete 3D data for further design, inspection, analysis, and more.

SIMSCAN-E Intelligent Wireless and Palm-Sized 3D Scanner
