| Type |

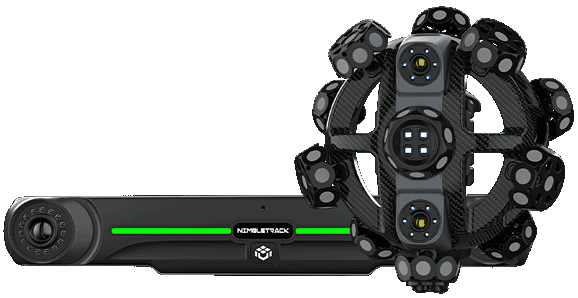

NimbleTrack-C |
| Scan mode |
Ultra-fast scanning |
17 blue laser crosses |
| Hyperfine scanning |
7 blue parallel laser lines |
| Deep hole scanning |
1 blue laser line |
| Accuracy for scanner-only mode(1) |
Up to 0.020 mm (0.0008 in) |
| Accuracy for system(1) |
Up to 0.025 mm (0.0009 in) |
| Tracking distance per i-Tracker |
3200 mm (126.0 in) |
Volumetric accuracy(2)
(Tracking distance 3.2 m) |
0.064 mm (0.0025 in) |
Volumetric accuracy
(With MSCAN photogrammetry system ) |
0.044 mm + 0.012 mm/m (0.0017 in + 0.00014 in/ft) |
| Hole position accuracy |
0.050 mm (0.0020 in) |
| Laser class |
Class II (eye-safe) |
| Resolution up to |
0.020 mm (0.0008 in) |
| Stand-off distance |
300 mm (11.8 in) |
| Depth of field |
400 mm (15.7 in) |
| Scanning area up to |
500 mm × 600 mm (19.7 in × 23.6 in) |
| Scanning frame rate |
120 fps |
| Measurement rate up to |
4,900,000 measurements/s |
| Dimension of i-Scanner |
238 mm × 203 mm × 230 mm (9.4 in × 8.0 in × 9.1 in) |
| Weight of i-Scanner |
1.3 kg (Net weight) (2.87 lb) |
| 1.4 kg (Battery and wireless module included) (3.09 lb) |
| Dimension of i-Tracker |
570 mm × 87 mm × 94 mm (22.4 in x 3.4 in x 3.7 in) |
| Weight of i-Tracker |
2.2 kg (Net weight) (4.85 lb) |
| 2.6 kg (Battery and wireless module included) (5.73 lb) |
| Size of protection case |
1000 mm × 425 mm × 280 mm (39.4 in × 16.7 in × 11.0 in) |
| Output format |
.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc. |
| Operating temperature range |
-10°C–40°C (14℉-104℉) |
| Operating humidity (Non-condensation) |
10-90% RH |
| Wireless operating mode |
i-Scanner, i-Tracker, i-Scanner + i-Tracker, i-Tracker + i-Probe, Wireless multi-tracker tacking, Edge Inspection |
| Wireless standard |
802.11a/n/ac |
| Interface mode |
USB 3.0, Network Interface |
| Patents |
CN109000582B, CN211121096U, CN210567185U, CN111678459B, CN114001696B, CN114554025B, CN114205483B, CN113514008B, CN114627249B, CN112867136B, CN218103220U, CN218103238U, CN307756797S,CN113340234B, CN112964196B, CN115289974B, CN113188476B, CN218411072U, CN115325959B, CN218584004U, CN115661369B, CN218734448U, CN115493512B, CN110992393B, CN116136396B,CN113432561B, CN219834226U, CN219829788U, CN116244730B, CN116206069B, US10309770B2, US10309770B2, US11060853B2, KR102096806B1, EP3392831B1, US11493326B2 |
