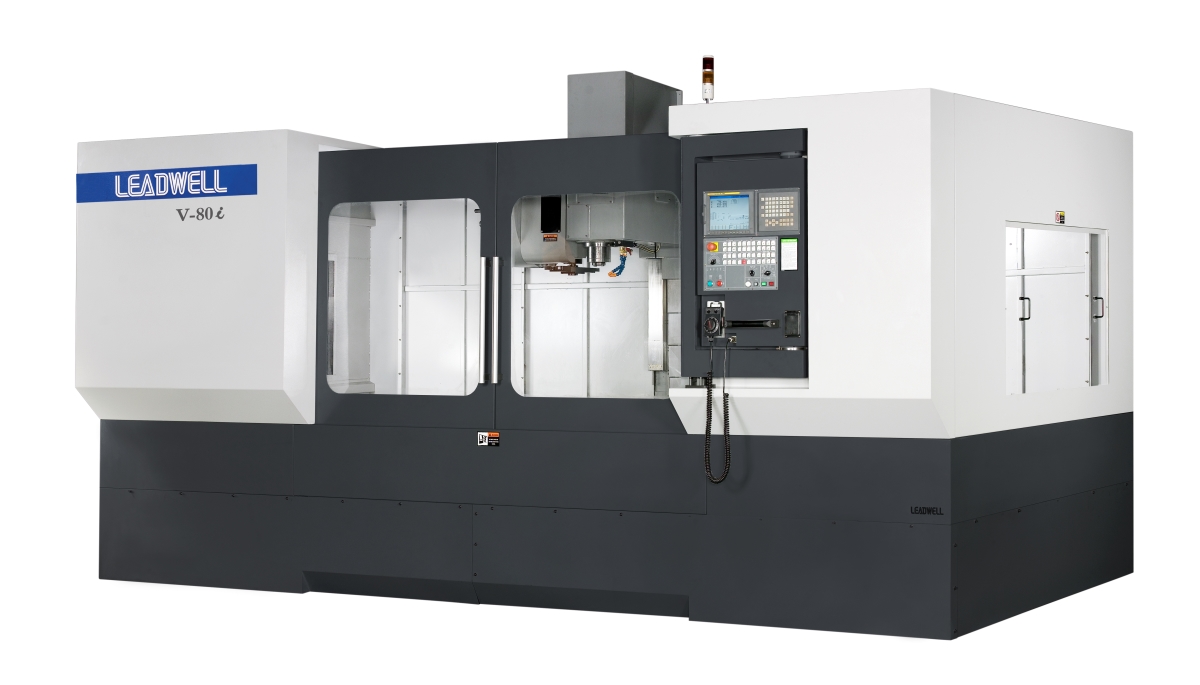

V-80i

Vertical Machining Centres

V-80i

Type Linear way
X-Axis Travel 2040mm
Y-Axis Travel 1000mm
Z-Axis Travel 720mm
Table size 2100x1000mm
Spindle nose No.40
Spindle taper 7/24
Spindle bearing inner diameter 70mm
Spindle speeds 8000/DDS 10000, 12000, 15000rpm
Tool change time 1.8/4sec
Rapid traverse X/Y/Z 24x24x20m/min
Max cutting feed rate 5m/min



  • Largest Linear Way Machining Center
  • Siemens 828D or Fanuc control
  • 10000rpm Ceramic Bearing Spindle
  • 8000rpm Steel Bearing Spindle (Optional) or 12000rpm Ceramic Bearing Spindle (Optional)
  • 30 position Servo Arm Type Tool Changer
  • 3C class ball screw/roller bearing linear guide way
  • Rigidity of the table increased on previous series by 50%
  • Chain Type Chip Conveyer (Option)
  • Explosion-proof screen windlow
  • User friendly ergonomic design
  • 36 m/min Rapid Traverse
  • LED Lighting
  • 4th axis preparation
  • Coolant Through Spindle preparation (Standard)
  • Coolant Through Spindle 25 Bar or 40 Bar Grundfos Pump (Optional)
  • Base Flushing
  • Coolant Gun
  • 17/22kw Spindle Motor Siemens , 18.5kw Fanuc
