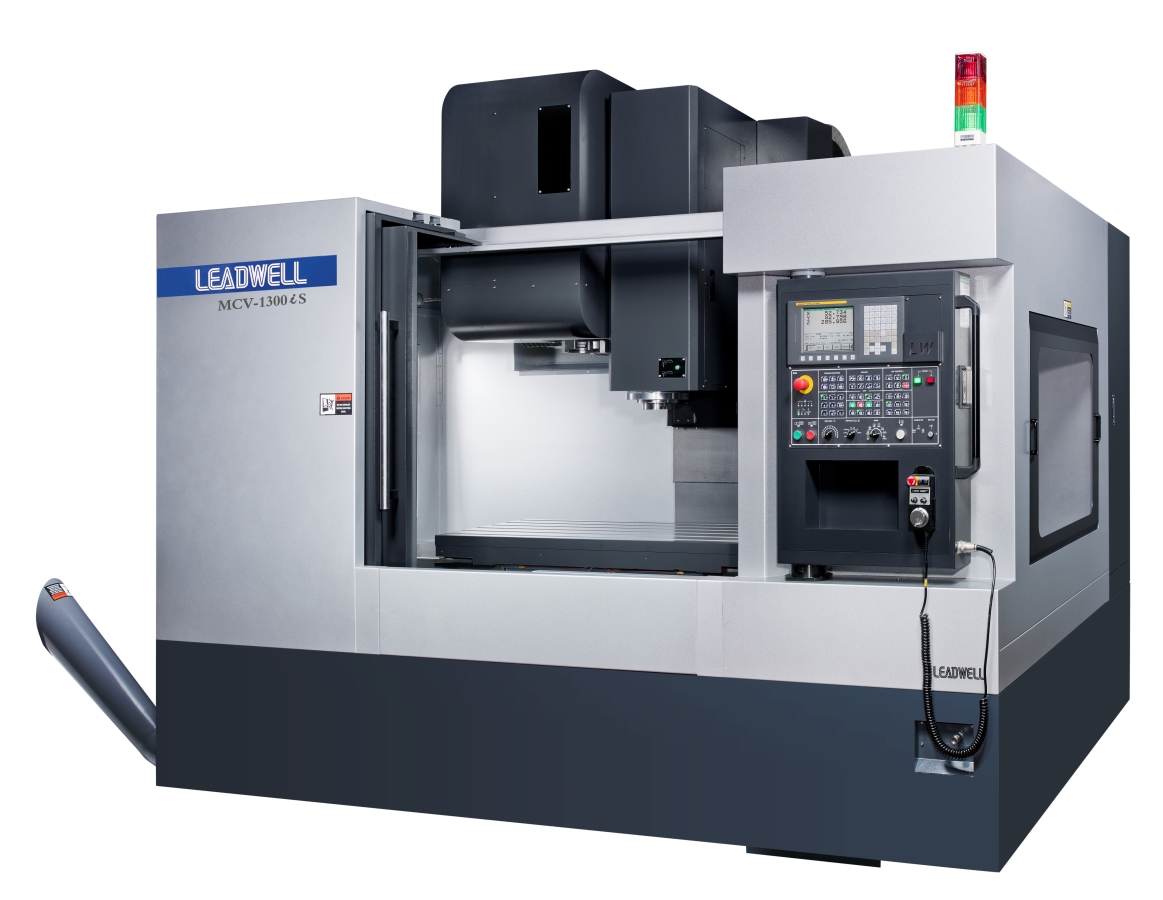

MCV-1300iS

Vertical Machining Centres

MCV-1300iS

Type Box way
X-Axis Travel 1300mm
Y-Axis Travel 635mm
Z-Axis Travel 610mm
Table size 1420x610mm
Spindle speeds 4000rpm, 6000rpm
Spindle motor 15/11kw
Tool storage capacity 24
  • Heavy-Duty Box Ways
  • Scraper/Chain type chip conveyor (OPT)
  • Cast Iron Construction
  • Rigid Tapping
  • Double Nut Designed Ball Screws
  • Swivel Operator Panel
  • Cartridge Type Spindle
  • Coolant Through Spindle(CTS) Option
  • Spindle Annular Coolant Jet with 8 Nozzles Option
  • Spindle probe Option
  • Machine in Action - Video Clip



Brochures

Product Enquiry
