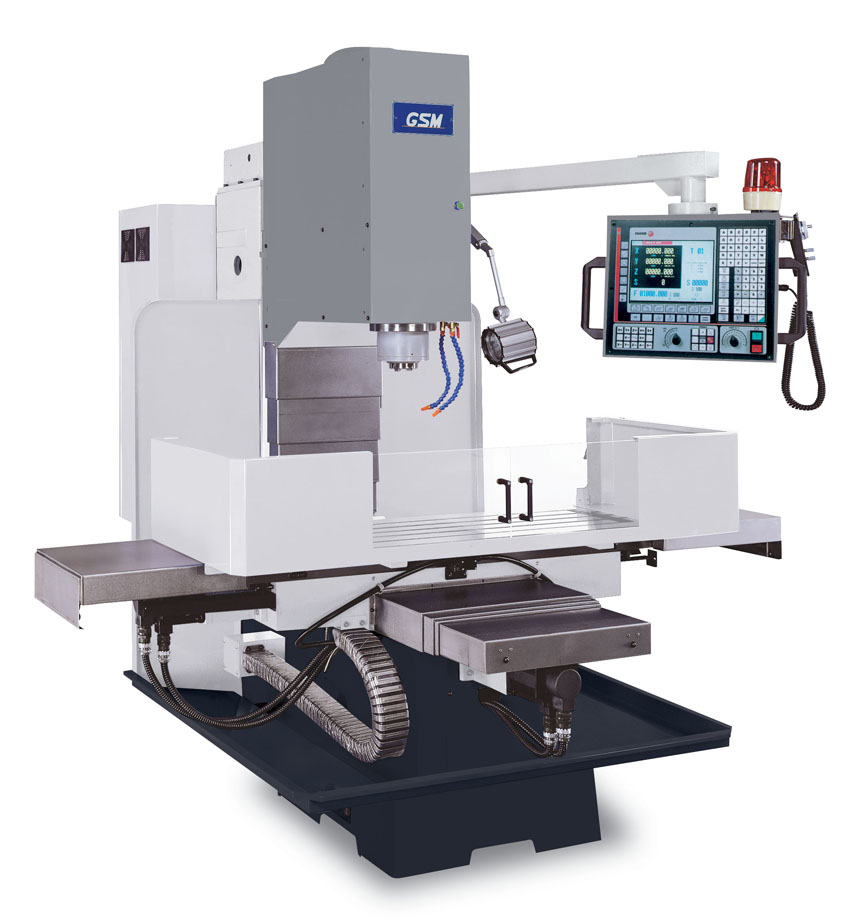

GSM 1500S

Vertical Machining Centres

GSM 1500S

TABLE
Worktable 450x1800mm
T-slot     16x5x60mm
Table load capacity     1000kgs
MOVEMENT
X axis travel              1500mm
Y axis travel             650mm
Z axis Travel               620mm
SPINDLE HEAD
Spindle taper         BT-40
Spindle speed  6000rpm, 8000, 10000, 12000rpm opt.
Feed Rate                 0-5m/min
Ballscrew diameter            Ø40m/min
Rapid travel              0-10m/min (0-20)
MOTORS
Spindle motor              10HP (15)
Tool storage capacity         20:24

  • This machine is constructed with heavy-duty Meehanite cast iron to ensure high rigidity, wear resistance, and no deformation.
  • The X, Y and Z axis slideways are coated with Turcite-B to assure smoothness and abrasion resistance.
  • The X, Y, and Z axis adopt high precision double nuts pre-loaded type ball screws.
  • P4-grade precision bearing is adopted for the main spindle.
