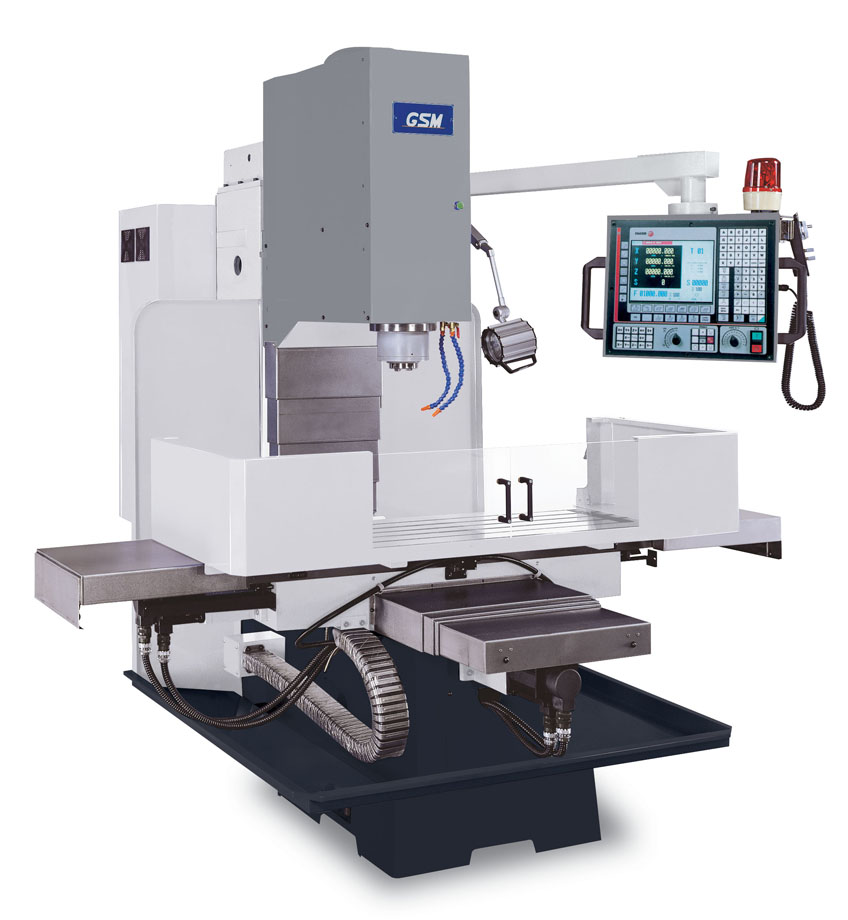

GSM 800S

Vertical Machining Centres

GSM 800S

TABLE
Worktable 355x1270mm
T-slot 16x3x64mm
Table load capacity 500kgs
MOVEMENT
X axis travel 800mm
Y axis travel 400mm
Z axis Travel 450mm
SPINDLE HEAD
Spindle taper BT-40
Spindle speed 6000rpm/ 8000, 10000, 12000rpm opt.
Feed Rate 0-5m/min
Ballscrew diameter Ø32m/min
Rapid travel 0-10m/m
MOTORS
Spindle motor 7.5HP
Tool storage capacity 16

  • This machine is constructed with heavy-duty Meehanite cast iron to ensure high rigidity, wear resistance, and no deformation.
  • The X, Y and Z axis slideways are coated with Turcite-B to assure smoothness and abrasion resistance.
  • The X, Y, and Z axis adopt high precision double nuts pre-loaded type ball screws.
  • P4-grade precision bearing is adopted for the main spindle.
