Vertical Machining Centres

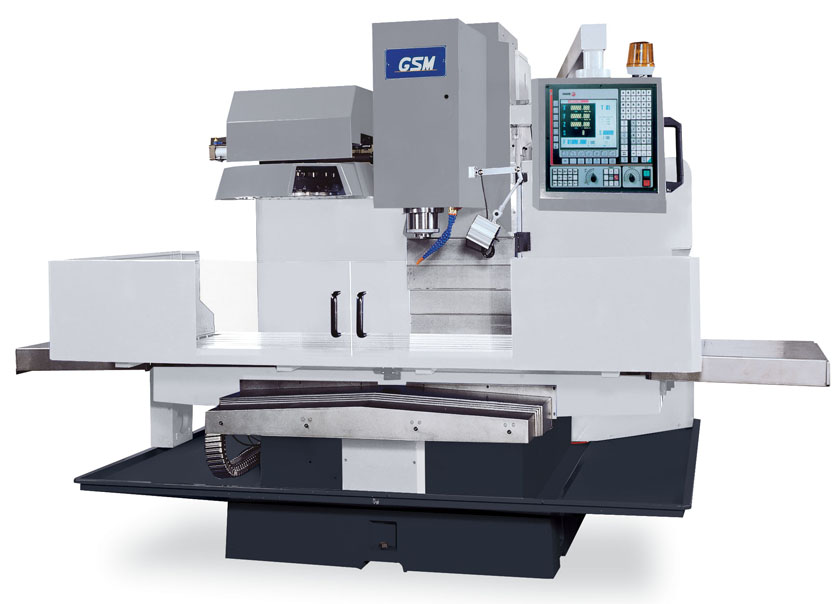

GSM 2000S
| Worktable | 813x2185mm |
| T-slot | 18 x 5 x 100mm |
| Table load capacity | 1800mm |
| X axis travel | 2000mm |
| Y axis travel | 850mm |
| Z axis Travel | 710mm |
| Spindle taper | BT-40 (CAT-40) |
| Spindle speed | 6000 / Op:(8000, 10000, 12000) rpm |
| Feed Rate | 0-5 m/min |
| Ballscrew diameter | Ø40 m/min |
| Rapid travel | 0-10 (0-20) m/min |
| Spindle motor | 15 (20) HP |
| Tool storage capacity | (20:24) |
| N.W. | 6800 kgs |
| G.W. | 7200 kgs |
| Packing measurement | 342x226x254 cm |
Features
- This machine is constructed with heavy-duty Meehanite cast iron to ensure high rigidity, wear resistance, and no deformation.
- The X, Y and Z axis slideways are coated with Turcite-B to assure smoothness and abrasion resistance.
- The X, Y, and Z axis adopt high precision double nuts pre-loaded type ball screws.
- P4-grade precision bearing is adopted for the main spindle.
