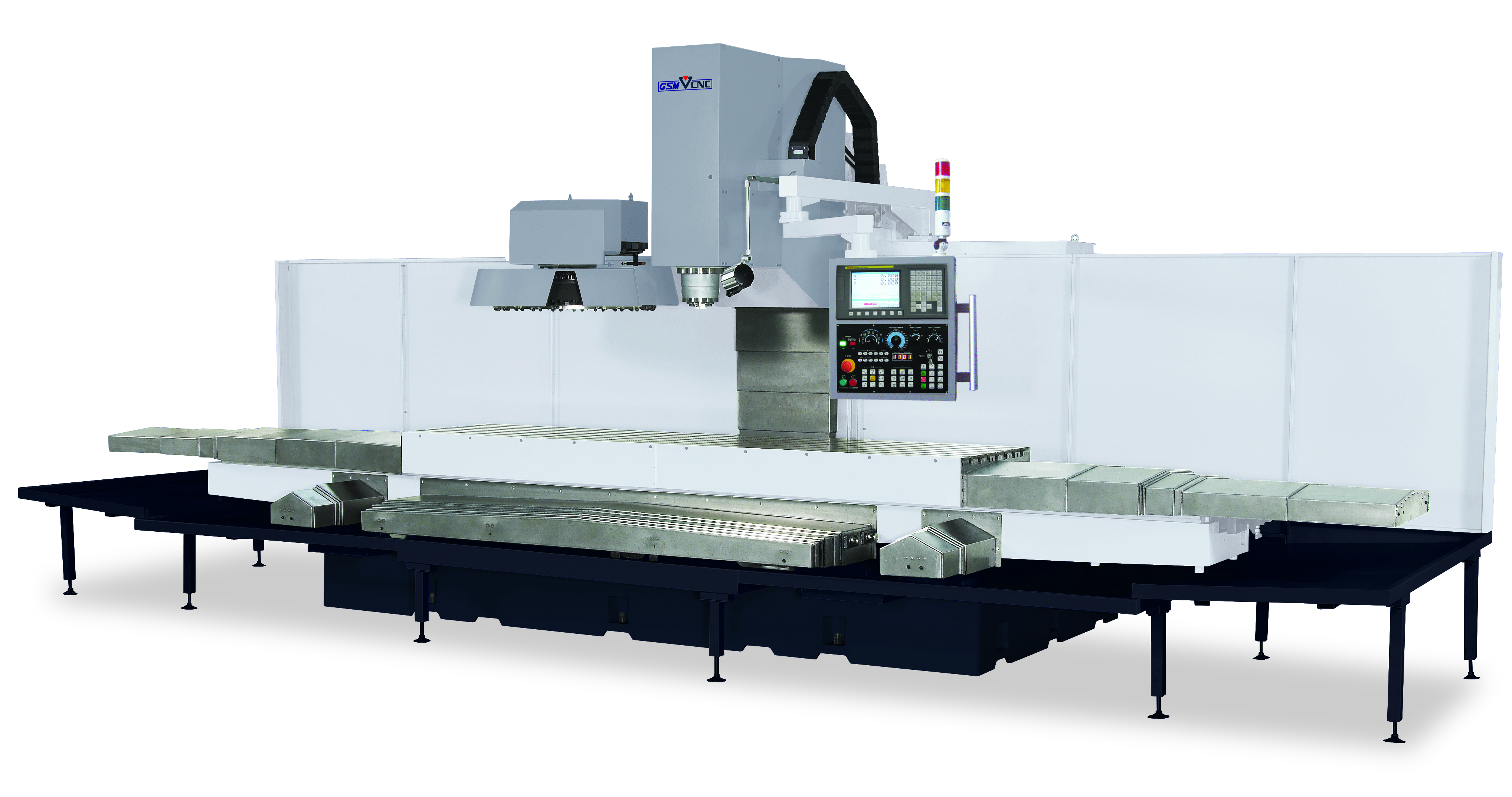

GSM 3000S

Vertical Machining Centres

GSM 3000S

Worktable 813x3200mm
T-slot 18x7x100mm
Table load capacity  2200kgs
X-Axis travel  3000mm
Y axis travel 900mm
Z axis Travel  750mm
Spindle taper BT-50 (CAT-50)
Spindle speed 6000rpm
Feed Rate 0-10m/min
Ballscrew diameter  80m/min
Rapid travel  0-10m/min













Feature

  • This machine is constructed with heavy-duty Meehanite cast iron to ensure high rigidity, wear resistance, and no deformation.
  • The X, Y and Z axis slideways are coated with Turcite-B to assure smoothness and abrasion resistance.
  • The X, Y, and Z axis adopt high precision double nuts pre-loaded type ball screws.
  • P4-grade precision bearing is adopted for the main spindle.

Taiwan machining. CNC vertical machining.Semi-Guarding.Full-Guarding.
