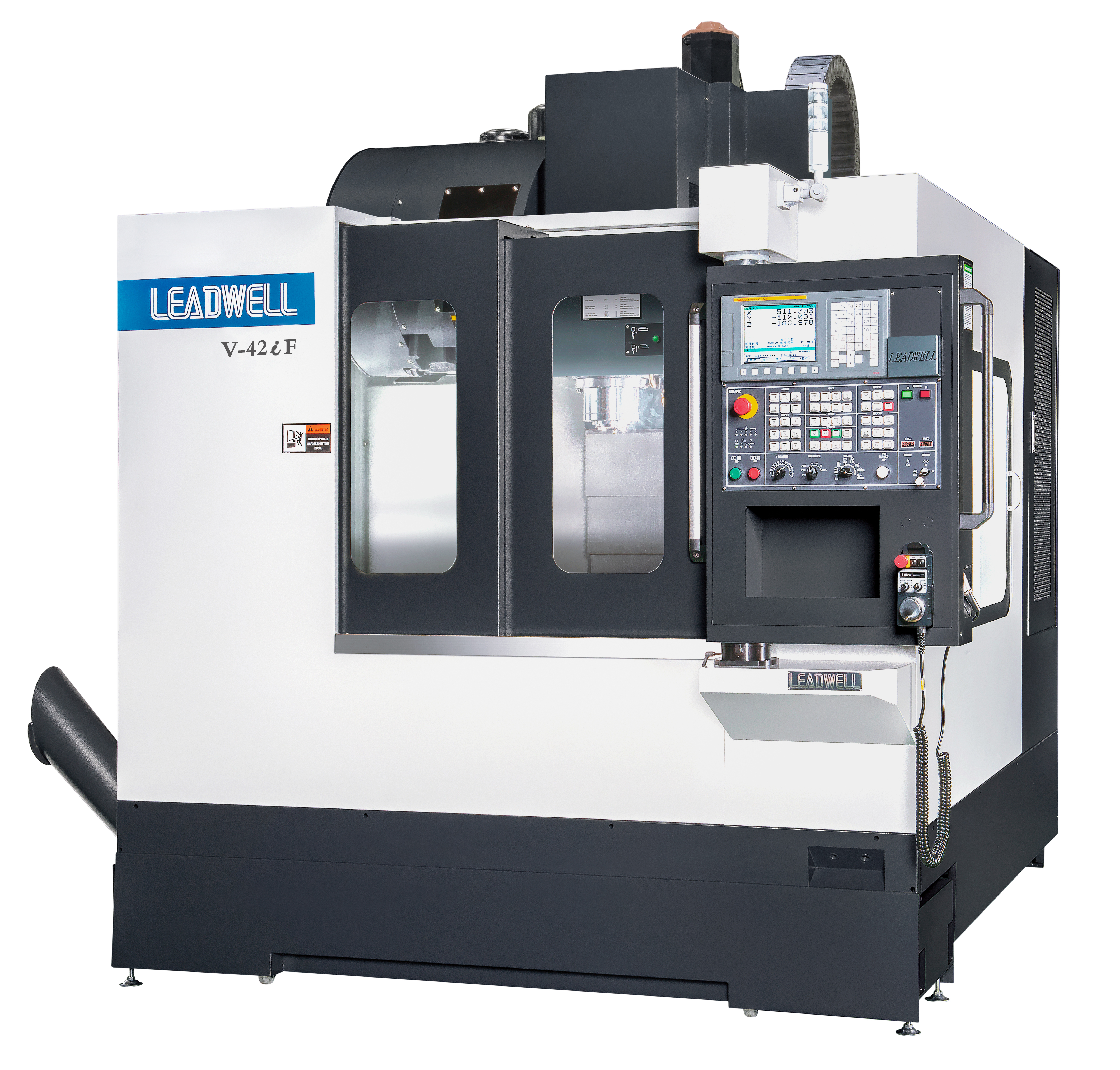

Vertical Machining Centres


Type Linear way VMC
X-Axis Travel 1020mm
Y-Axis Travel 520mm
Z-Axis Travel 610mm
Table size 1100x500mm
Spindle nose No.40
Spindle bearing inner diameter 60mm
Spindle speeds 8000/DDS 10000, 12000, 15000rpm
Tool change time Arm: 1.8sec
Rapid traverse X/Y/Z 36m/min
Max cutting feed rate 10m/min
  • 1020 x 520 x 610mm Travels
  • Generally Ex-Stock
  • Linear Way Machiing Center
  • Siemens 828D Basic or Fanuc control
  • 10000rpm Ceramic Bearing Spindle
  • 8000rpm Steel Bearing Spindle (Optional) or 12000rpm Ceramic Bearing Spindle (Optional)
  • 24 position Servo Arm Type Tool Changer
  • 3C class ball screw/roller bearing linear guide way
  • Rigidity of the table increased on previous series by 50%
  • Six blocks for linear guide way/X axis
  • Coolant and chip separation system
  • Explosion-proof screen windlow
  • User friendly ergonomic design
  • 48m/min Rapid Traverse
  • LED Lighting
  • 4th axis preparation
  • Coolant Through Spindle preparation (Standard)
  • Coolant Through Spindle 25 Bar or 40 Bar Grundfos Pump (Optional)
  • Base Flushing
  • Coolant Gun
  • 11kw Spindle Motor (17/22kw Optional)
