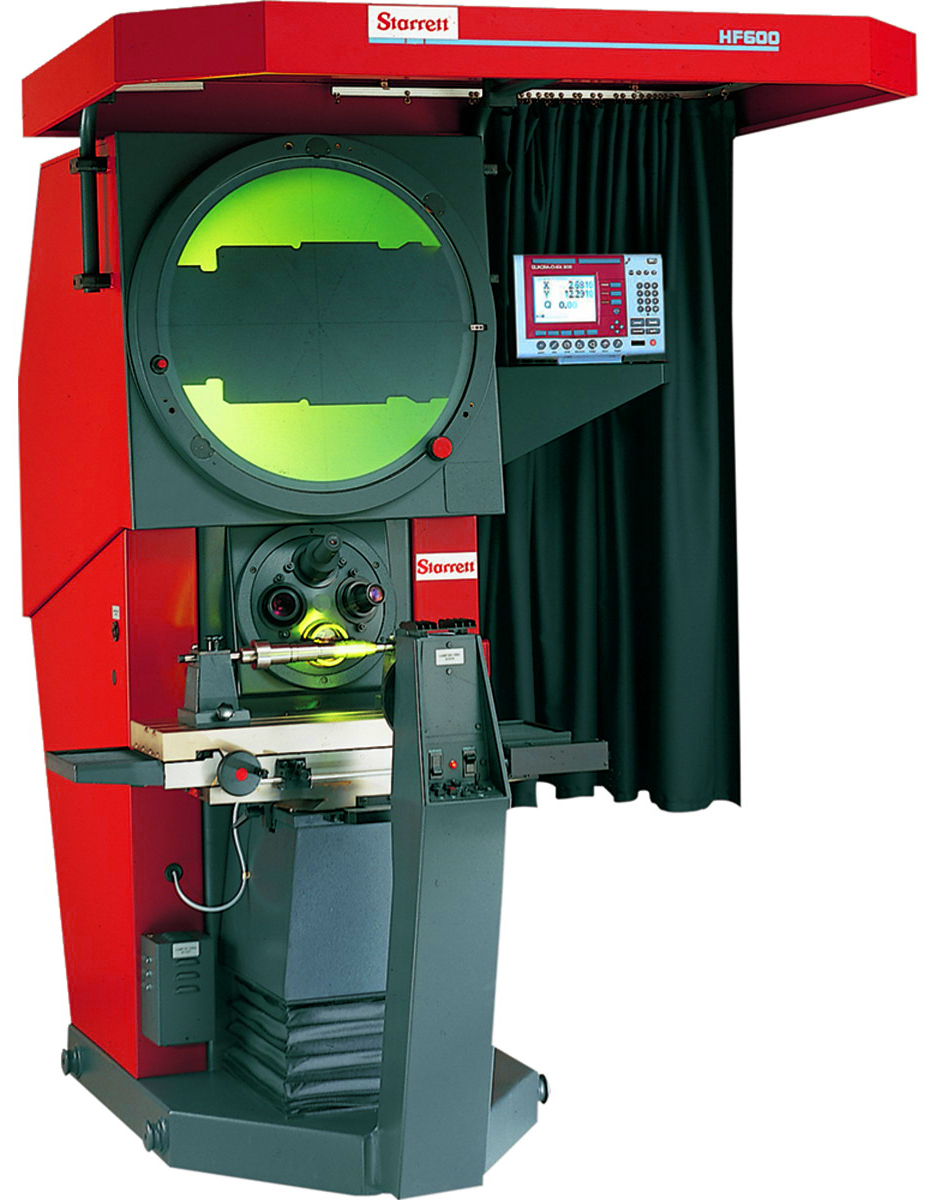

VF600

Shadow Graph

VF600

  • Screen Diameter: 600mm with precision cross lines, calibration markings and overlay clips.
  • Workstage: Top plate - 400mmx225mm, Measuring Travel: 200mmx100mm
  • Workstage Capacity: 30kg maximum (Evenly distributed)
  • Illumination: Profile - Fan cooled, 150w halogen with yellow/green filter, Surface - Fan cooled 100w lamp/fibre optic system.
  • Measurement/display systems: Linear - Heidenhain scales (0.001mm resolution). Simple DRO or Quadra-Chek readout systems with edge sensing option. Angle - Digital protractor (1 minute resolution). Quadra-Chek Q-Axis.
  • Lenses: x10, x20, x25, x 311/4, x50, x100 (x5 to special order)
  • Power Supply: 110/120/230/240/250V.AC50/60Hz, consumption 5A.
  • Fully usable 600mm diameter screen.
  • Screen angled at an optimum 30° to give bright, easily viewed image, and allowing easy tracing or overlay work.
  • Choice of two workstage size options with manual, motorised or CNC control.
  • Fast traverse, quick release mechanism on X and Y Axis.
  • Supplied complete with full canopy and curtains.
  • Single lens mount or 3-lens quick change turret using silo system for maximum lens protection.
  • Available with the full range of Quadra-Chek readout systems.
  • Electronic digital protractor.
  • Comprehensive range of multi-element precision ground lenses.
  • 4Large range of accessories available.
  • 4Lamp mounted helix facility.
