Floor Type Profile Projector

Shadow Graph

Floor Type Profile Projector

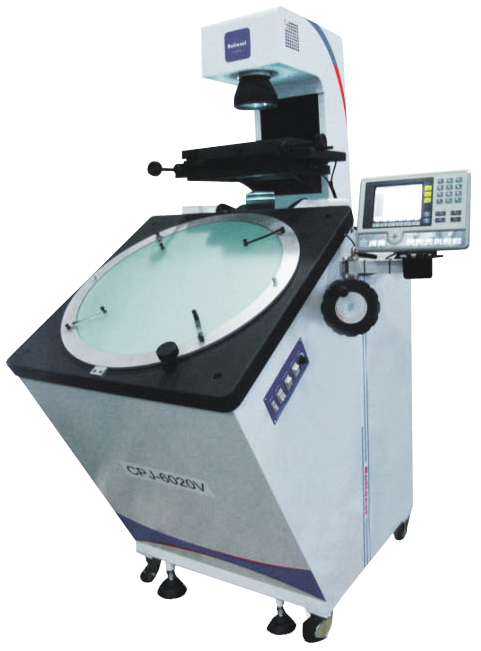

Model CPJ-6020V
X-axis Travel (mm) 200
Y-axis Travel (mm) 100
Metal table size (mm) 404×265
Glass table size (mm) 270×170
Resolution (μm) 0.5
Indication error (mm)

2.5+L/75 (L is the length of the measured object. Unit: mm)

Z-axis Travel (mm) 50 (focusing)
Weight (kg) 360
Dimension (mm) 1200×1140×1940
Projection screen Size (mm) Ф 615
Rotary range 0~360°
Resolution 1' or 0.01°
Lens Magnification 5× (Optional) 10× (Standard) 20× (Optional) 50× (Optional) 100× (Optional)
Field of view (mm) Ф120 Ф60 Ф30 Ф12 Ф6
Working distance (mm) 242.8 143.2 85.5 92 48.5
Max. measuring height 50 50 50 50 48

CPJ-6020V Floor Type Profile Projector is a high precision and high efficiency optical measuring instrument integrating optics, mechanics and electronics. It is widely used in the field of machinery, instrument, meter, electronics, and light industry as well as in measuring chamber and laboratory of universities and institutes, research institutes and metrological verification department. This instrument can efficiently measure the geometric dimension and profile of various complicated shaped workpiece.
