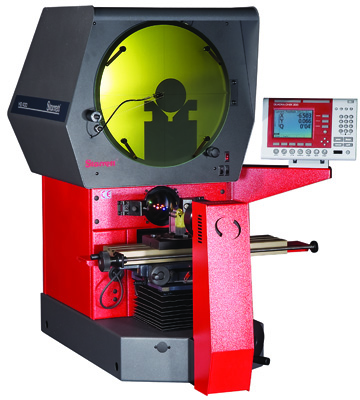

HB400

Shadow Graph

HB400

Features & Specifications

  • Available with a choice of a MetLogix M2 or several Quadra-Chek control systems
  • Distinctive new styling
  • Fully usable 400mm screen diameter
  • Large measuring travel: 300mm X-axis, 150mm Y-axis
  • Exceptionally stable, all metal construction for optimum performance and accuracy
  • High precision workstage with 540mmx127mm top plate, with two machine slots for easy fixturing
  • Stage weight capacity: 100 lbs
  • Quick action change lens system
  • 5x, 20x, 25x, 31.25x and 50x lenses available
  • Dual mirror design for vertically correct image
  • Digital protractor for accurate angle measurements, 1’ resolution
  • ±15° workstage helix adjustment for accurate thread form inspection
  • Fine adjustment on all axes, plus zero backlash, fast traverse mechanism on the X-axis
  • Fully retractable fiber optic surface illumination with heavy-duty shielding
  • Automatic edge detection option
  • Motorized and CNC workstage options
  • Optional OV2 quick change video camera with up to 200x magnification text
