Starrett MV300

Video Measuring

Starrett MV300

X/Y/Z Measuring Range 300x150x125mm
X/Y Accuracy in µm E1=3.5+5L/1000
Z accuracy in µm E1=2.5+5L/1000
Control System / Software Metlogix M3
Zoom Optics 6.5:1
S Video Colour Camera  Supplied as standard
Surface Ring Illumination LED or Fi-O
Transmitted Illumination Supplied as on option
Coaxial Illumination Supplied as on option
Dark Field Quadrant Illumination .5x, 2.0X
Auxiliary Lenses (Optional) Supplied as an option
Workstation  Supplied as an option
Video Pixel Calibration Standards Supplied as an option
Calibration Standards Supplied as an option

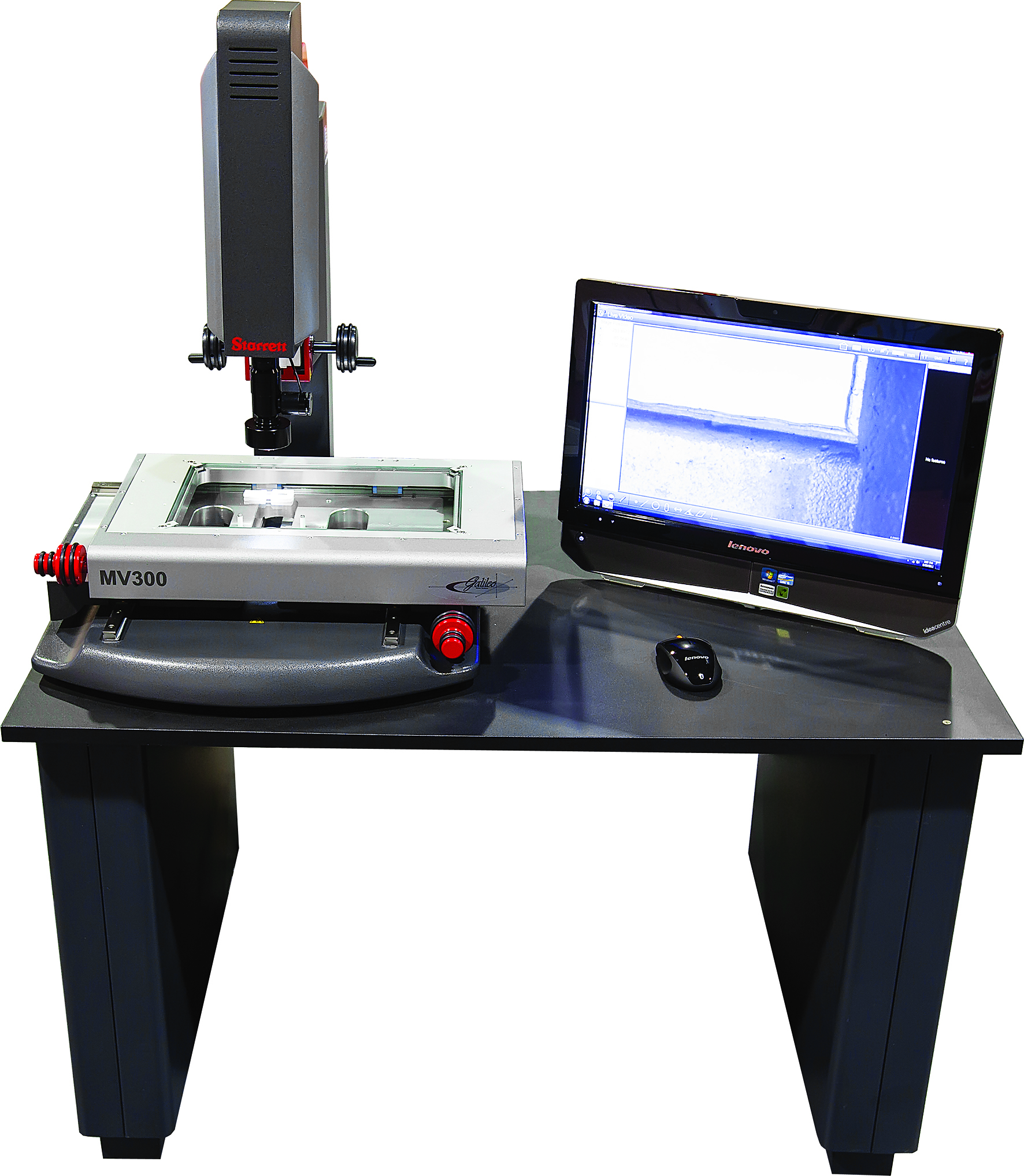

The Starrett MV 300 system is a general-purpose manually driven video based measurement system, ideal for quality assurance, inspection labs, manufacturing, assembly and research facilities.

A precision mechanical bearing X-Y-Z stage and column, combined with Heidenhain scales, translates data accurately and repeatedly to the user friendly Metlogix M3 software, which is all stored and viewed on neat and compact all-in-one touch screen PC.
