AV300

Video Measuring

AV300

X-Y-Z Travel: 300x150x135mm
Z Axis Measuring: Standard
X-Y Accuracy (µm): E2 = 1.9µm + 5L/1000
Z Accuracy (µm): E1 = 2.5 µm + 5L/1000
Scale Resolution: 0.1 µm
Multi-Sensor Compatible: Yes
Base: Cast Aluminum
Control System / Software: M3 or QC5300
Display: 21" Touchscreen PC or 24" Monitor
Zoom Optics - Standard: 6.5:1
Zoom Optics - Optional: 12:1
Digital Video Camera: 1 MP Color
Surface Ring Illumination: LED or FO
Transmitted Illumination: LED or FO
Coaxial Illumination: Optional LED or FO
Darkfiled Quadrant Illumination (Optional LED only): Optional LED
Brightfield Quadrant Illumination (Optional LED only): Optional LED
Auxiliary Lenses (Optional): 0.5X, 1.5X, 2.0X
Renishaw Touch Probe: Optional on QC5300 only
Renishaw Touch Probe Change Rack: Optional on QC5300 only
Workstation Base, Extension and Swing Arm: Optional
Part Fixturing: Optional
Video Pixel Calibration Standard: Optional
Calibration Standards: Optional

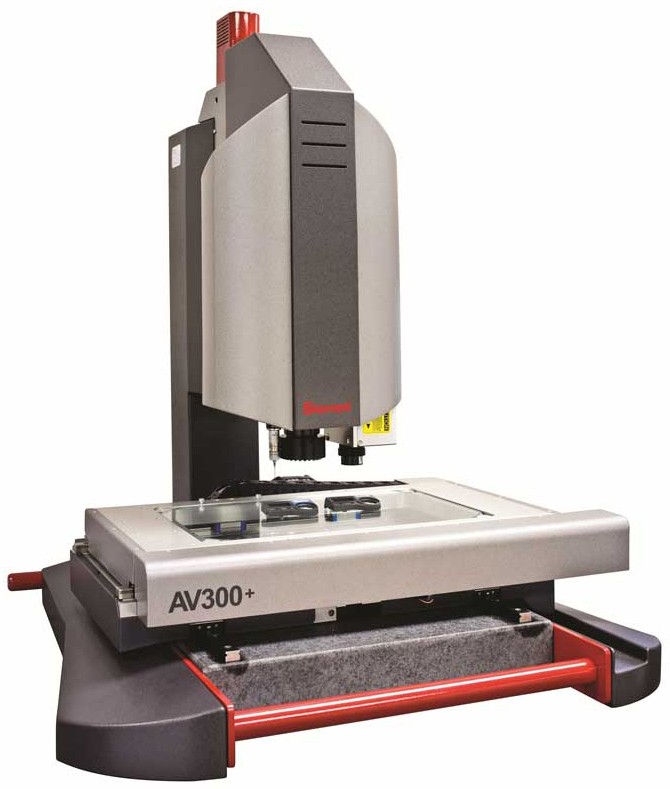

The AV300 CNC vision system offers 12" x 6" x 5.5" travel, Z-axis measuring, your choice of powerful MetLogix or Quadra-Check software control systems, 6.5:1 (optional 12:1) zoom optics and several LED or fiber optic illumination options. These systems are general-purpose CNC video-based measurement systems. Throughput is maximized with either QC5000 or Metlogix M3 software controlling all aspects of Video Edge Detection (VED) and multiple channel Fiber Optic or LED illumination. Available with an all-in-one touchscreen PC with MetLogix M3 DXF/FOV/CNC software, or with a desktop PC with an external monitor and QC5000 software. The M3 software supports 2D geometrical constructs (lines, angles, circles), while the QC5000 software also supports 3D constructs (inclined planes, cones, spheres). Starrett automatic vision (AV) systems are ideal for quality assurance, parts inspection, and production runs. Flexible and powerful the AV series allows users to cost effectively achieve maximum throughput of their inspection process, allowing measured data to be effectively archived or networked to other devices. Also see our multi-sensor metrology systems, which can provide vision metrology operation with travel up to 50" x 36" x 8" (1270 x 915 x 200 mm).
