Vision Fixtures

Renishaw's vision fixtures offer two unique fixturing solutions designed to fit your specific vision system or multisensory machine:

• Quick load corner (QLC)
• Interchangeable vision fixture (IVF)

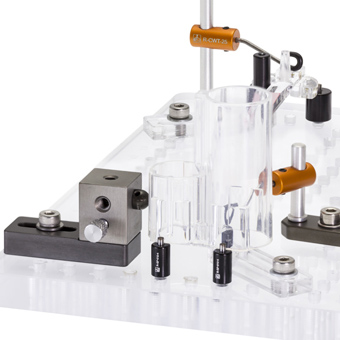

Each system uses an acrylic base plate that allows for the use of backlighting for a clear view of the part on your vision system.

Vision Fixture Kits

Renishaw vision fixtures can be purchased in preconfigured kits and additional components can be purchased separately. A typical kit consists of a quick load corner (QLC), one base plate and a comprehensive set of components. The type of parts you are going to fixture will determine which kit you choose. Renishaw offers two kit types:

• Clamping kit
• Magnetic and clamping kit (contains magnets for fixturing steel parts)

Fixturing components are easily adjustable and designed to hold components firmly with the minimum necessary force to avoid damage or distortion. The wide range of parts available offers flexibility when setting up a fixture to ensure a maximum clearance for inspection.

Base Plates

There are two base plate options to choose from:

• Multi-hole: offers greater flexibility to set up and check as many parts as possible at one time with a clear area in the centre of the plate.
• Multi-window: more windows for the clearest view of small parts.
