NC-4

Renishaw Machine Tool Probing (Tool Setting )

NC-4

High-precision, high-speed, non-contact tool measuring and broken tool detection on all sizes of vertical and horizontal machining centres, multi-tasking machines and all gantry machining centres. Designed for the ultimate in process tool measurement for fast accurate checking of tool wear and tool breakage detection

Precision optics:
Allows fast, non-contact tool setting and tool breakage detection on a variety of machining centres.

Available as fixed system and separate system variants, the NC4 incorporates the unique MicroHole™ protection system and the innovative fail‑safe PassiveSeal™, maintaining IPX8 environmental protection.

Precision optics are supplied as standard. These enable the compact series to achieve unsurpassed performance in a unit particularly suited to small machines and machines where space is at a premium, while separate systems allow simple installation on large machine tools with a range of up to 5 metres.

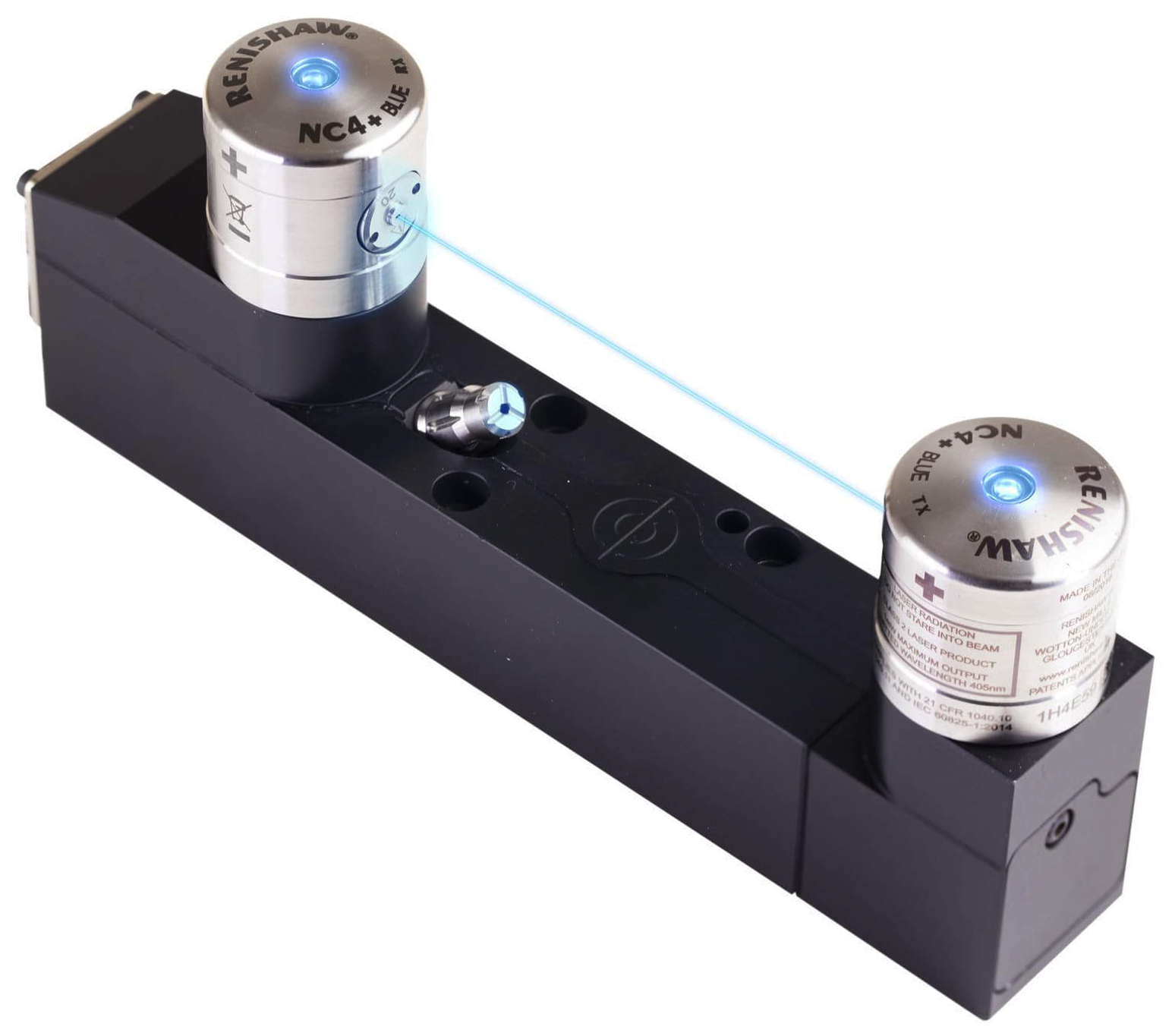

For applications using small diameter tools, the NC4+ is available, providing excellent performance with small tools and superb tool-to-tool accuracy.

  • Precise tool length and tool diameter measurement.
  • High-speed broken tool detection mode.
  • Measures and detects tools of Ø0.03 mm or larger (dependent on separation and mounting).
  • Compact design is ideal for machines where large non-contact systems are unsuitable.
  • Reliable in the harshest of environments.
  • ±0.10 μm 2s repeatability.
