Horizontal Machining Centres

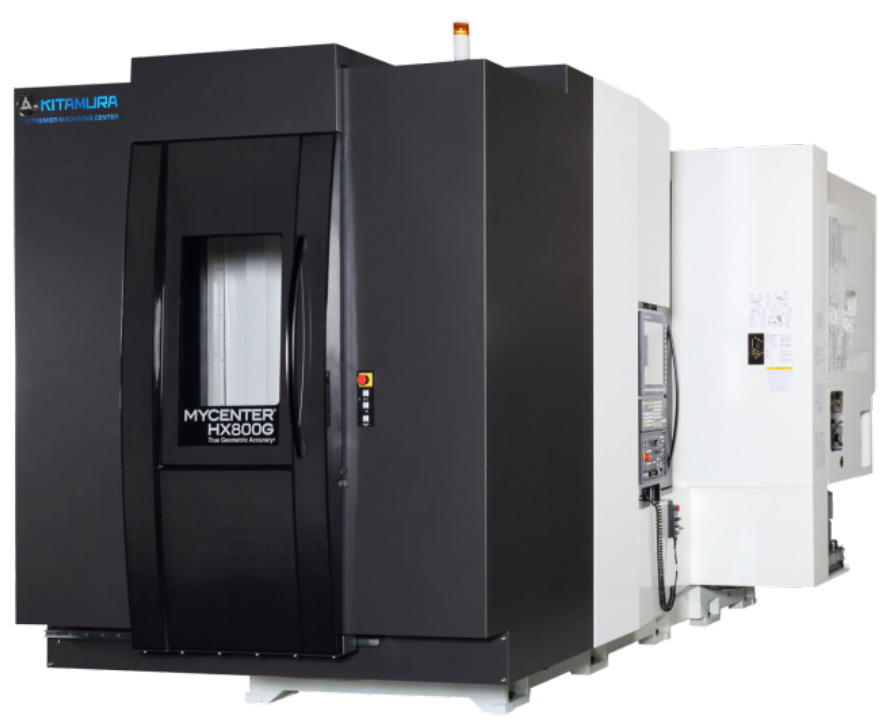

Mycenter-HX800G
| Table size | 800x800mm |
| Maximum table load | 3000kg |
| Maximum workpiece diameter | 1,525mm |
| Maximum workpiece height | 1,550mm |
| X axis travel | 1,5500mm |
| Y axis travel | 1,300mm |
| Z axis travel | 1,400mm |
| B-axis | 0 to 360 degrees (full 4th axis) |
| Spindle taper | # 50 NST (HSK-A100 Option) |
| Speed | 35-12000U/min, 8000U/min opt. |
| Spindle motor | 40kw |
| Rapid traverse X, Y, Z | 60m/min |
| Feed rate X, Y, Z | 60m/min |
| Speed of rotation (B-axis) | 12 000degrees/min |
| Number of pallets | 2 |
| Changing times | 30sec |
| Max Tool size | 125mm/320mm |
| Max Tool length | 650mm |
| Max Tool weight | 35kg |
| Tool change time | 2.3sec |
| Chip to chip | 6.0sec |
- #40 Taper, 20,000rpm and #50 Taper, 12,000rpm spindle configurations. HSK spindle available as an option
- Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
- Solid box way construction, linear scales on all axes and twin ballscrew design in the X & Y axes
- Full 4th axis rotary table for 360ᴼ cutting capability
- World's fastest rapid feed rates of 2,362ipm on solid box ways
- Standard 2-station APC offers the ability to add pallets and pallet pool systems in the field
- Beats the competition in work envelope size and stroke!
