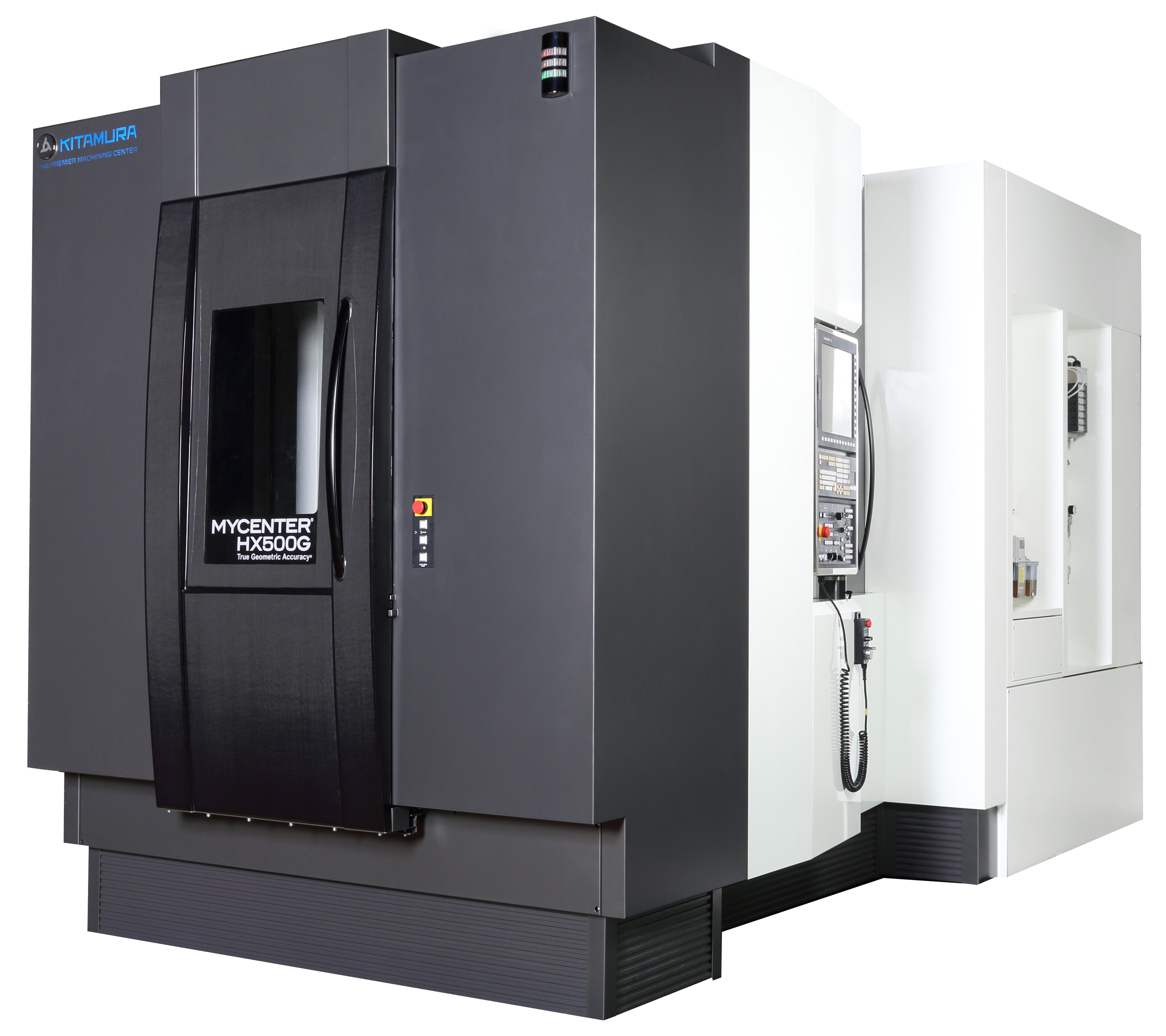

Mycenter-HX500G

Horizontal Machining Centres

Mycenter-HX500G

Table Size 500x500mm
Travel (X, Y, Z) 870x800x930mm
Spindle Taper NST No. 40/NST No. 50
Spindle Speed 20~20,000rpm(#40), 35~12,000rpm(#50)
Tool Storage Capacity 50 Pcs, 62,100,150,200 opt.
Tool Change Time (T-T/C-C) 1.8 sec/2.8 sec (#40), 3.0 sec/7.0 sec (#50)
Rapid Feed (X, Y, and Z x B) 60m/minx12,000deg/min
Power Requirement 55KVA
  • #40 Taper, 20,000rpm and #50 Taper, 12,000rpm spindle configurations. HSK spindle available as an option
  • Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
  • Solid box way construction, linear scales on all axes and twin ballscrew design in the X & Y axes
  • Full 4th axis rotary table for 360ᴼ cutting capability
  • World's fastest rapid feed rates of 2,362ipm on solid box ways
  • Standard 2-station APC offers the ability to add pallets and pallet pool systems in the field
  • Beats the competition in work envelope size and stroke!
