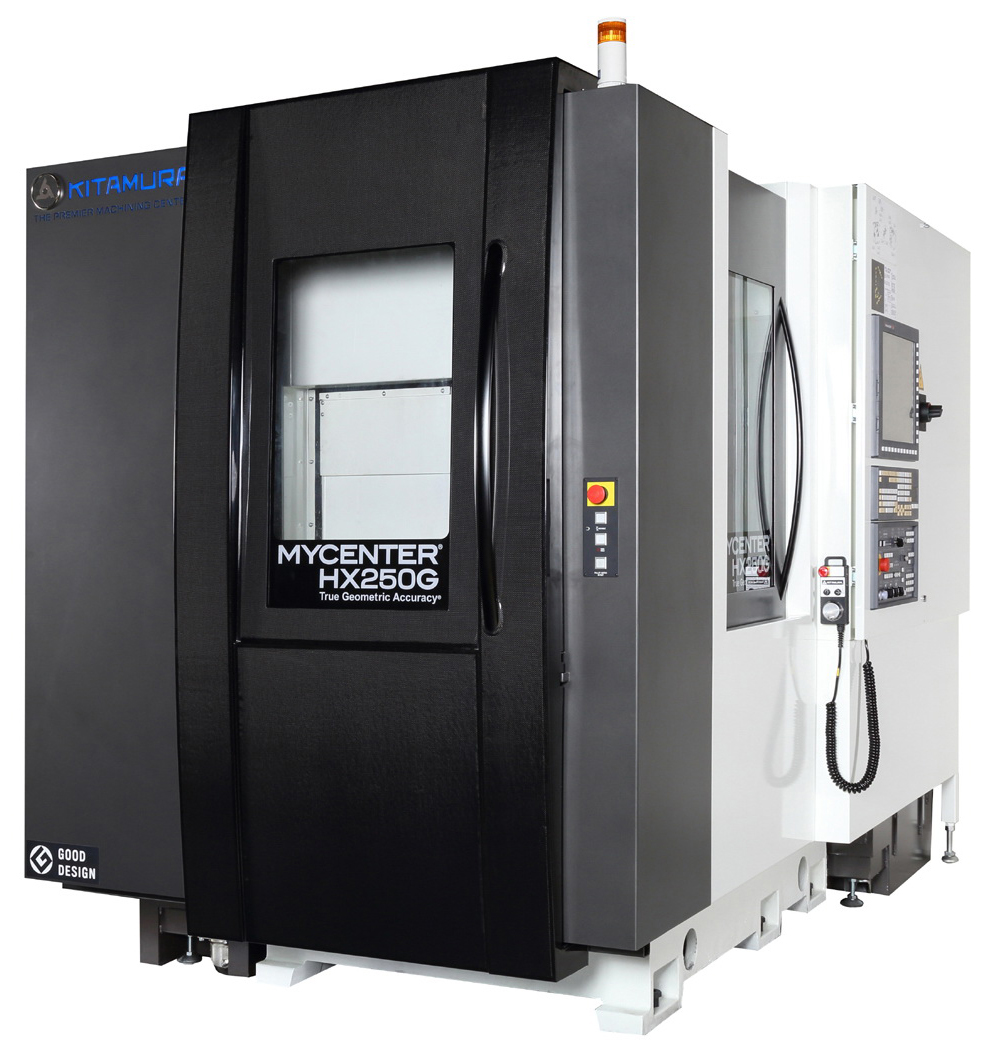

Mycenter-HX250G

Horizontal Machining Centres

Mycenter-HX250G

Table Size 254x254mm
Travel (X, Y, Z) 305x305x330mm
Spindle Taper NST No. 30
Spindle Speed 150~15,000rpm, 30,000 opt.
Tool Storage Capacity 40 Pcs - Expandable in the Field to 102 Tools!
Tool Change Time (T-T/C-C) 1.2 Sec/3.0 Sec
Rapid Feed (X, Y, and Z x B) 60m/min x 12,000deg/min
Power Requirement 30KVA
  • Ideal for simultaneous 4-axis machining of small, detailed, highly accurate parts
  • Amazingly small footprint saves on valuable floor space
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • World's fastest rapid feed rates at 2,362ipm
  • Rigid Meehanite cast iron construction
  • High power, high-speed processing Arumatik-Mi CNC
  • Powerful 15,000rpm, dual contact spindle - Now Available, 30,000rpm HSK-E40 spindle!
