Horizontal Machining Centres

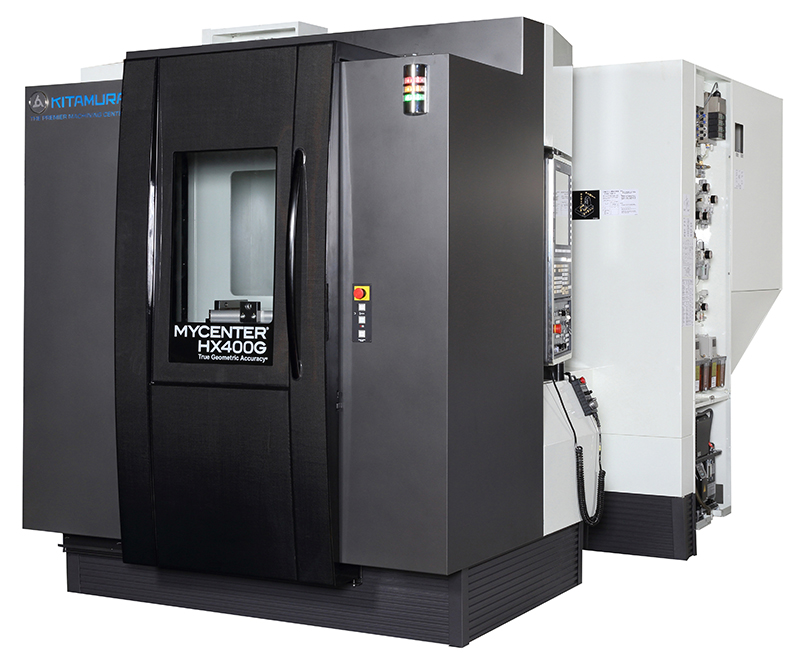

Mycenter-HX400G
| Table Size | 400x400mm |
| Travel (X, Y, Z) | 610x610x610mm |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 20~15,000rpm, 20,000rpm opt. |
| Tool Storage Capacity | 50 Pcs, 100, 150, 200 opt. |
| Tool Change Time (T-T/C-C) | 1.3 sec/2.5sec |
| Rapid Feed (X, Y, and Z x B) | 60m/min) x 12,000deg/min |
| Power Requirement | 45KVA |
- Linear scale feedback system – fine pitch, high resolution ballscrews
- Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
- Expandable, 2-station rotating pallet system
- Full 4th axis rotary table with high resolution rotary scale for 360ᴼ cutting capability
- Highest grade Meehanite cast iron construction with world's fastest rapid feed rates of 2,362ipm with solid box ways
- High-speed, 15,000 direct driven, dual contact spindle. Optional 20,000rpm now available!
- High precision contour control for complex contouring & mold applications
