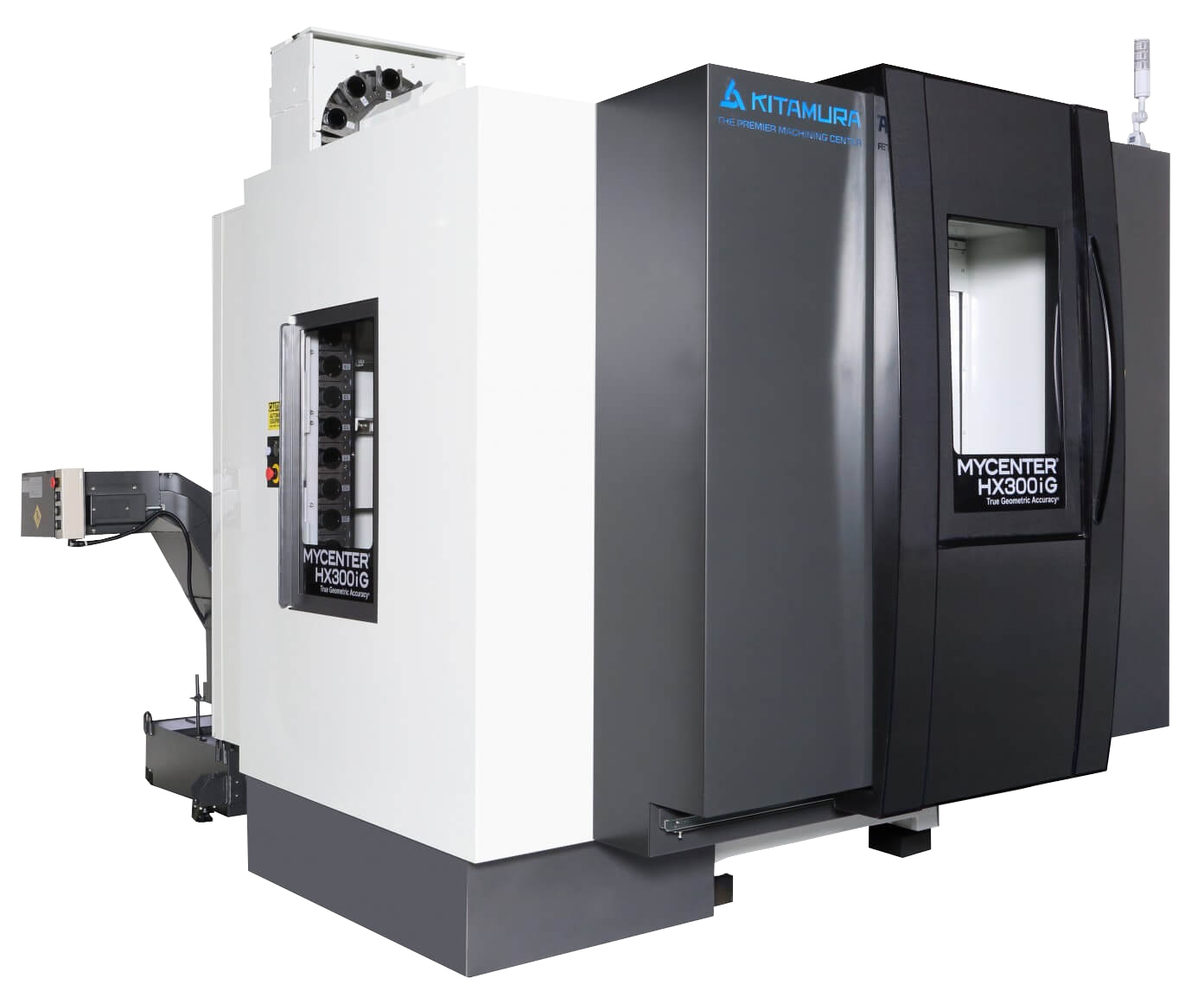

Mycenter - HX300G

Horizontal Machining Centres

Mycenter - HX300G

Table size 305x305mm
Travel (X,Y,Z) 460 x510 x560 mm
Spindle Taper #40 NST
Spindle Speed 40 to 15,000min
Tool Storage Capacity 50 Tools
Tool Change Time (T-T/C-C) 1.3 sec /2.5 sec
Rapid Feed (X, Y, and Z x B) 60 m/min x 54,000deg/min
Power Requirments  45KVA




  • Field expandable 2-station APC with high-speed 4th Axis rotary table and rotary scale. DD Motor driven with rapids 54,000deg/min
  • Ultra-high- speed rapid/cutting feeds,60m/min
  • Ultra-high-speed tool change, T-T 1.3 seconds
  • High-performance THK double roller linear guideways system
  • Powerful 15,000min, 30HP Direct Drive Dual Contact Spindle 20,000min, HSK spindle is an available option
  • Ballscrew cooling and fine resolution linear scale feedback in X,Y,Z axes
