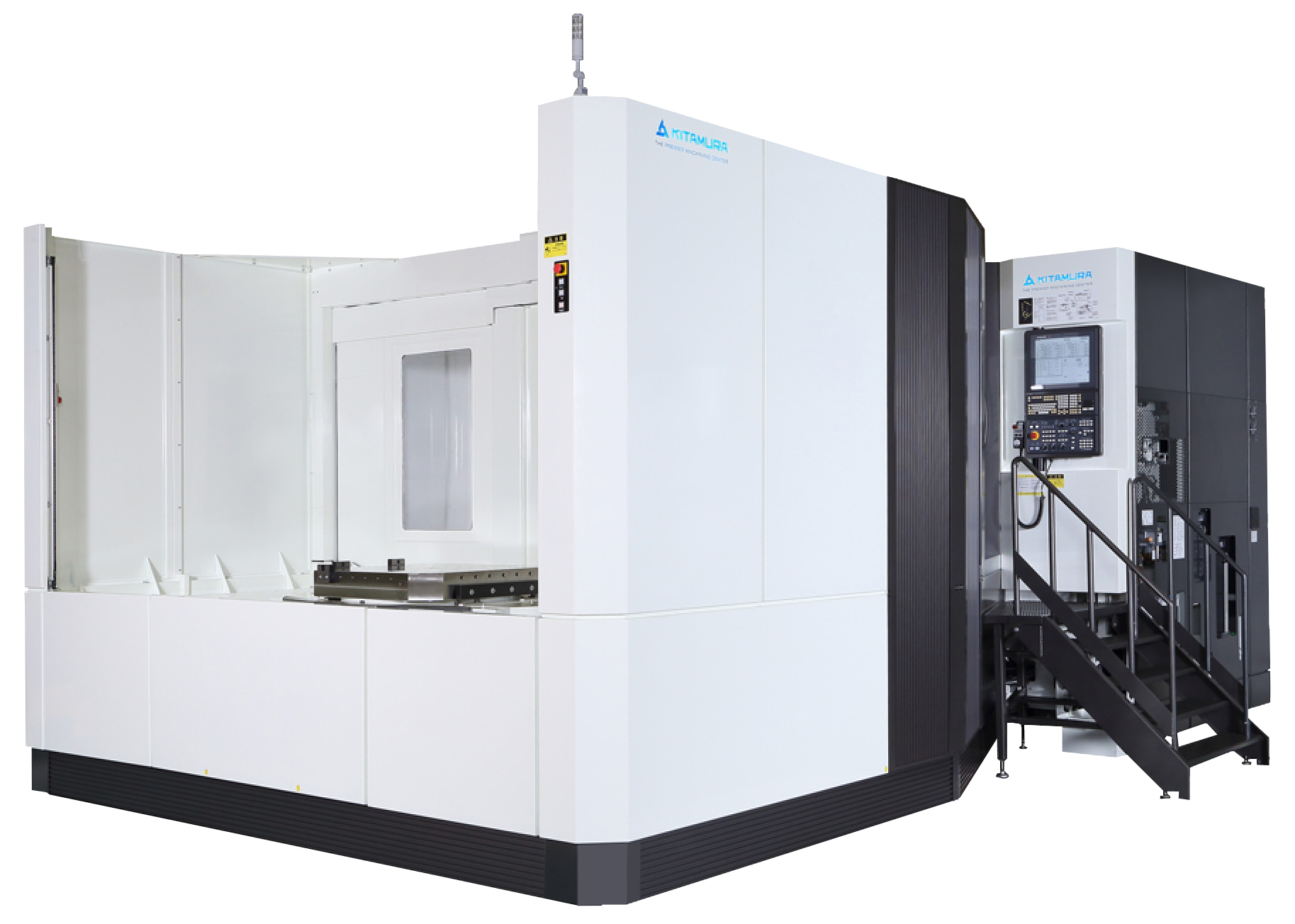

Mycenter HX1000G

Horizontal Machining Centres

Mycenter HX1000G

Table Size 1,000x1,000mm
Travel (X, Y, Z)  2,040x1,320x1,370mm
Spindle Taper  NST No. 50
Spindle Speed  20~8,000rpm, 35~12,000rpm opt.
Tool Storage Capacity 150Pcs, 250, 300 opt.
Tool Change Time (T-T/C-C)  3.0 sec/7.0 sec
Rapid Feed (X, Y, Z)  36m/min
Power Requirement  80KVA
  • Solid box way design combined with the rigidity of high grade meehanite casting
  • Positioning accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
  • Linear scale feedback on X, Y, Z axes
  • 1ᴼ indexer is positively positioned within ±1 arc/sec by a powerfully rigid curvic coupling
  • Maximum workpiece size 80.71” dia x 61.02” height. Table load capacity of 6,600Lbs +
  • Patented twin ballscrew/twin servo motor driven axis drive system
  • Flexibility with the ability to add a 5th axis in the field
