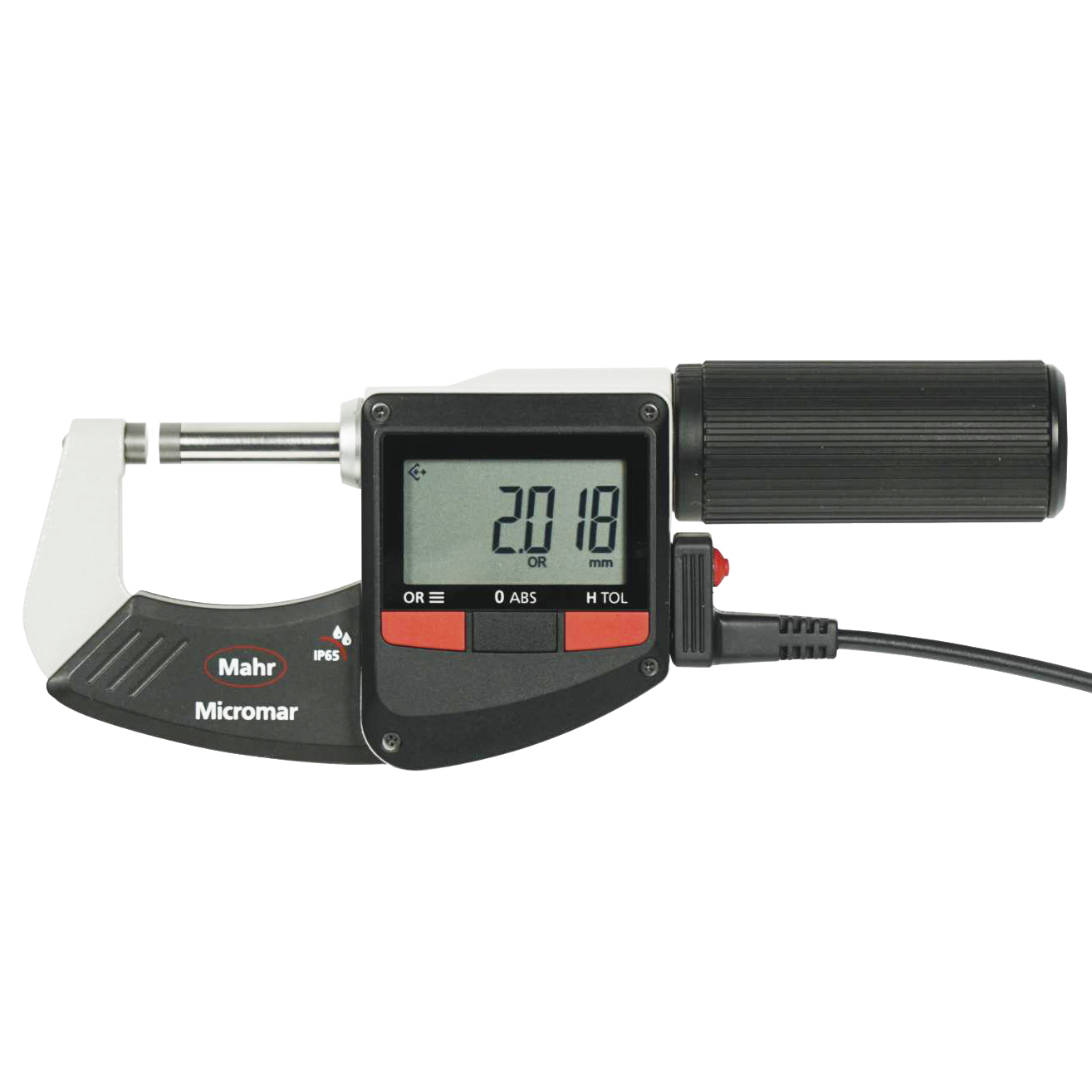

Micromar 40 EWR-L Digital Micrometer

Micromar Micrometers

Micromar 40 EWR-L Digital Micrometer



  • Technical data
  • Applications
  • Functions



Order no. Measuring range mm Measuring range inch Resolution mm/inch Error limit µm Parallel error in µm Flatness in µm Spindle diameter Spindle thread pitch_mm Measuring force (N)
4157020
0 - 25
0 - 1"
0.001 / .00005"
2 µm
2 µm
0.6 µm
6.5 mm
5 mm
5 - 10
4157021
25 - 50
1 - 2"
0.001 / .00005"
2 µm
2 µm
0.6 µm
6.5 mm
5 mm
5 - 10
4157022
50 - 75
2 - 3"
0.001 / .00005"
3 µm
3 µm
0.6 µm
6.5 mm
5 mm
5 - 10
4157023
75 - 100
3 - 4"
0.001 / .00005"
3 µm
3 µm
0.6 µm
6.5 mm
5 mm
5 - 10




  • - High contrast analog display
  • - Stainless spindle is hardened throughout and ground
  • - Spindle and anvil are carbide-tipped
  • - QUICK DRIVE
  • - Sliding spindle
  • - Ratchet is integrated in the thimble
  • - Lacquered steel frame, heat insulated
  • - MarConnect (bidirectional)
  • - USB
  • - Digimatic
  • - Battery life approx. 2 years
  • - IP 65
  • - Battery
  • - Instruction manual
  • - Setting standard (measuring range of 25-50 mm)
  • - Case
10 mm
