Metronor DUO Portable CMM System

Portable Measuring Arms

Metronor DUO Portable CMM System

APPLICATION SPECIFICATION COMMENT
Range Distance from sensors 1.5 – 15 m (5 – 50’)
Accuracy U95 distance measurement accuracy +/- 0.025 + L/60000mm
Environment No warm-up

Operating Temperature: 10 to 45˚C (50 to 113˚F)

Storage Temperature: -25 to 65˚C (-13 to 150˚F)

Operating Humidity < 95% relative humidity, non-condensing

Pressure, Humidity, Temperature: No effect on measurement accuracy

Vibration Stability Control (option): 0 – 100 Hz, < 3 mm amplitude

Electrical Power  Auto switching (Battery operation optional) 100-240 V AC, 50-60 Hz













The Metronor DUO system combines large volume and increased accuracy, with the widest range of applications. Utilizing Metronor’s patented principle for electro-optical coordinate measurements, Metronor DUO is our most sought system, providing high-end coordinate measuring capability anywhere in the production process. Use the handheld probe to provide CMM capability – measure features such as holes, slots and edges as well as surfaces. Perform a GD&T analysis – or compare to CAD in real-time.

Compare tools, parts and assemblies to CAD or blue-print, use the LED application kit option to efficiently study stability, deformation and process repeatability, or take the system to your supplier or customer to investigate problems with interfacing parts. Metronor DUO also supports efficient alignment of objects in position and orientation (6 DOF) for example in tool building or jig-less assembly. Using two cameras and a hand-held, wireless probe, Metronor DUO provides accuracy, versatility and portability to address all your geometry-related issues.

Like all Metronor systems, it’s designed for use in rough shop floor environments and exhibits industry-leading reliability and availability. Also, at Metronor we develop modular systems. So a Metronor DUO can be easily upgraded to a Metronor DUO Split.  This boosts your investment – by purchasing a DUO you’re not only buying the tool to solve your geometry problems – it is an investment for the future. A system that can grow alongside your production.

Simple to operate, it is the most affordable high-end large-volume portable CMM system on the market. It is also extremely portable – the complete system comes in a single, roll-away transport case and weighs only 30 kilos (66 lbs).

Benefits

- Complete and truly portable: One box, 30kg, for complete system including computer and tripods
- Extended probing capabilities including hidden features (450mm with optional Light pen)
- Operator friendly: Probing without beams, wires or arms
- Fast and easy set-up and use
- No warm-up or leap-frogging required
- No moving parts eliminate re-calibration
- Can be upgraded  to DUET system if needs change
- High accuracy and flexibility

Contents

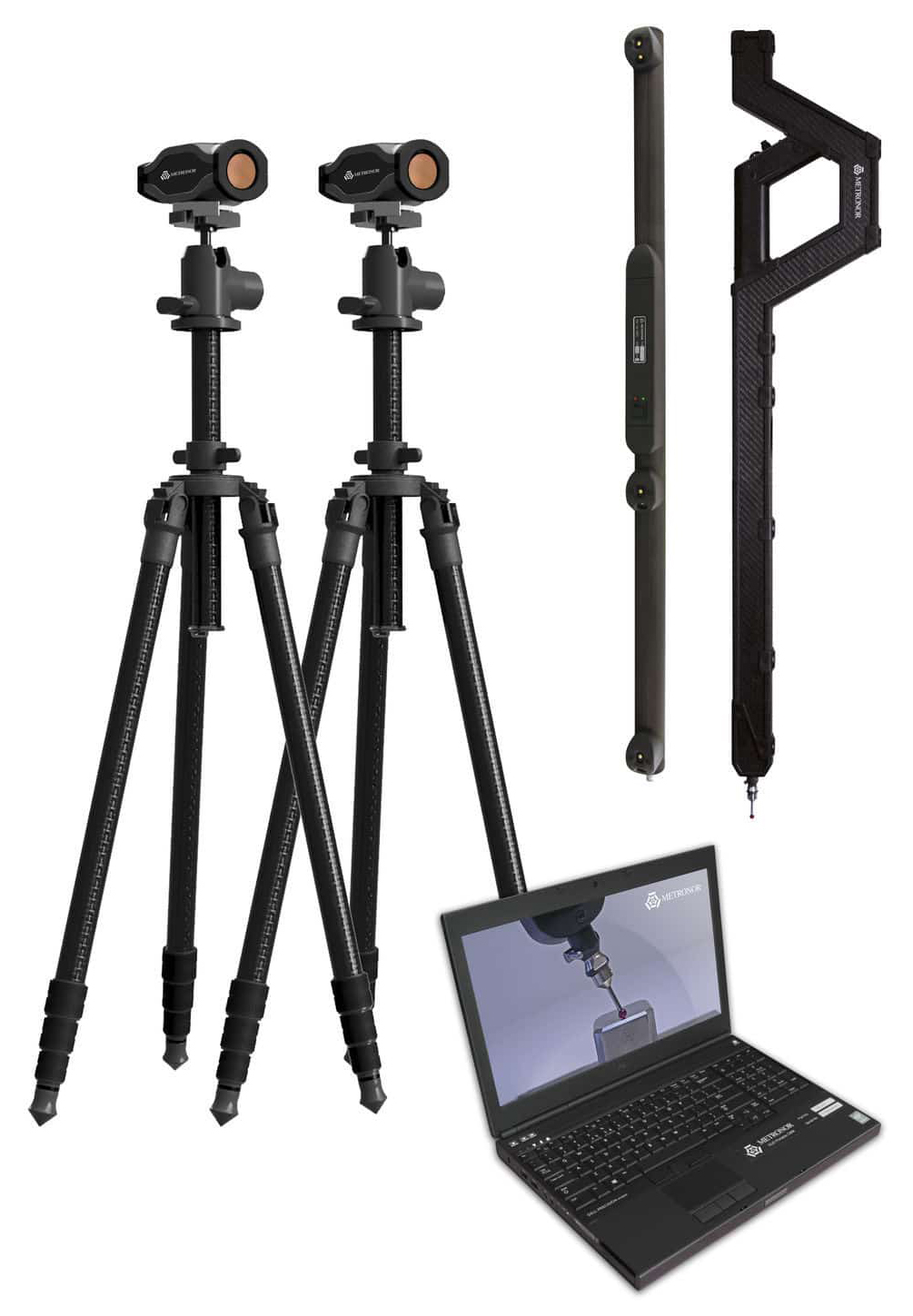

Pair of Metronor camera CAM38 (110000) with 10m signal & power/sync cables
- Two SOLO/DUO tripods (711100) with Pan/tilt head (711000)
- LP89 Lightpen (116152) with WiFi communication and re-chargeable Li-Ion battery
- LP89 comes with spare Li-Ion battery and battery charger
- Standard Probe Kit (116200) and Calibration Tool (716400)
- Reference bar RB68 (115150)
- Laptop computer for SOLO/DUO (714005)
- Interface Unit IU2 (714864)
- Metronor Metrolog EVO (331500), Metronor System SW (MSS) (330000) and SOLO technology license
- Required system and power cables
- Rollaway transportation case
