Altera SL-Series
S,M,SL and SLHA Series
ALTERA S ALTERA M ALTERA SL ALTERA SLHA
Volumetric accuracy from 1.8 µm + L/400 from 1.5 µm + L/375 from 1.1 µm+L/400 from 0.7 µm+L/600
Repeatability from 1.7 µm from 1.5 µm from 0.7 µm from 0.5 µm
Velocity from 762 mm/s from 833 mm/s up to 850 mm/s up to 317 mm/s
Acceleration from 2,306 mm/s2 from 2,514 mm/s2 up to 1,407 mm/s2 up to 566 mm/s2
Measuring Volumes
8.7.6 10.10.8 15.12.10 25.15.10 20.15.15 25.20.15
10.7.6 15.10.8 20.12.10 25.15.15
15.7.6 20.10.8 25.12.10
25.10.8

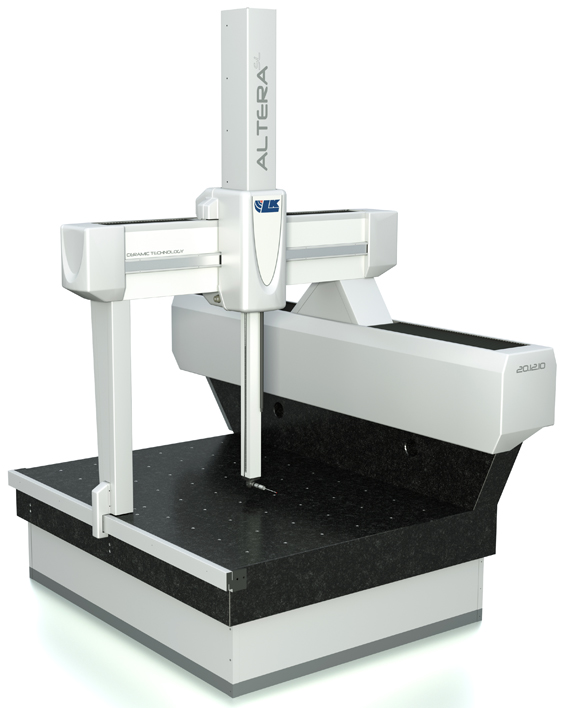

The ALTERA SL series of ultra-high accuracy CMMs achieve sub-micron* accuracy. Drawing on over 50 years of LK CMM experience, the ALTERA SL has been optimized for the most challenging tasks and highest precision. The innovative short-leg bridge design increases accuracy to the highest level for metrology laboratory equivalent measurement uncertainty.
