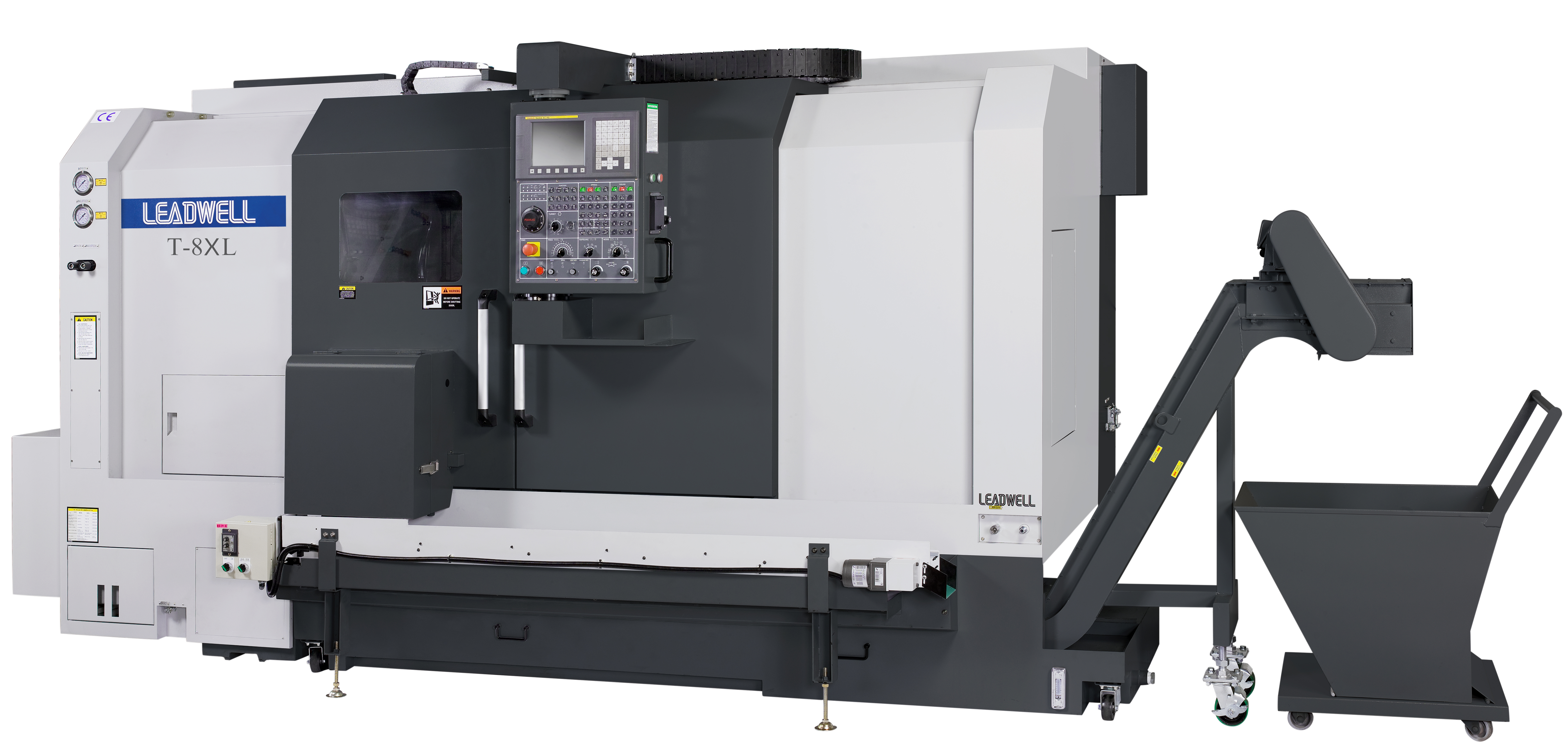

Slant Bed Turning Centers


Max. swing 670mm
Bar capacity 77mm
X axis 225+25mm
Z axis 1050mm
Spindle speeds range 3500rpm
Chuck size 254mm
  • Largest Linear Way Model from Leadwell with Powerful Motor configuration
  • Available with a 1050mm Turning Length
  • A2-8 / 85mm Bar Capacity with 10" or 12" chuck
  • True One Piece Cast Iron Construction
  • 36m/min Rapid Traverse
  • Cartridge Type Spindle for easy servicing
  • LEADWELL uses only premium quality preloaded double-nut ball screws
  • The heavy-duty tailstock is attached to the lower guide of the machine base. The heavy casting, large diameter quill and precision Morse taper center provide outstanding rigidity
  • High Speed Linear Motion Guides - All servo motor driven axes are mounted on precision linear bearings, which ride on hardened steel ways. These precision guideways require no adjustment, and the servo motors consume less power
  • The automatic tool setter and programmable Tailstock is an option on T series machines
  • Hydraulic or Servo Type turret
  • LEADWELL unique parts catcher improves productivity with bar feeder option. It automatically rotates into to position under the finished part and transfers it outside the operator door.
  • LEADWELL offers two options that turn their CNC lathes into make a multi-process turning center. These options provide the benefits of a lathe, plus extra versatility of a machining center.
  • Sub-Spindle Option
  • C-axis with Live Tooling Option
  • Available ex-stock (Subject to Prior Sale )
