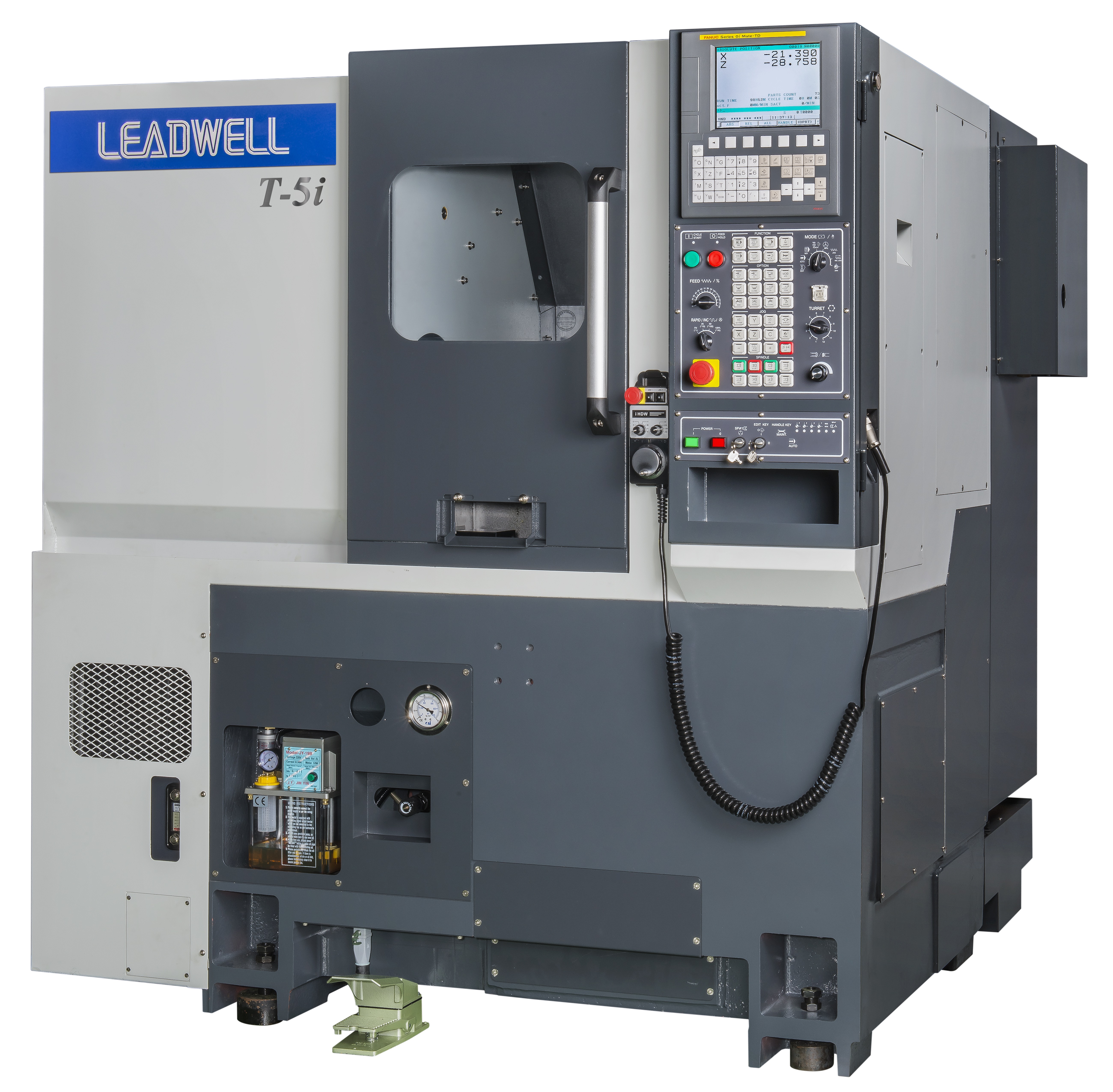

T-5i

Slant Bed Turning Centers

T-5i

Capacity  330mm
Bar Capacity 35mm
Chuck size 6inch
X axis 230mm
Z axis 105+20mm
Spindle speed 45-4500rpm
Hole through spindle 62mm
Number of tool positions 12
X rapid traverse     20m/min
Z rapid traverse 24m/min
Spindle Motor 15HP
  • Available as Gang Type or Turret Type high speed linear way turning center
  • Available with Siemens 828D Basic or Fanuc Oi control systems
  • True One-piece Cast Iron Construction
  • High Precision Cartridge Type Spindle for easy servicing
  • LEADWELL uses only premium quality preloaded double-nut ball screws
  • Available with or without Tailstock
  • C-axis with Live tool turret available as an option
  • Sub-Spindle configuration available as an option
  • High Speed Linear Motion Guides - All servo motor driven axes are mounted on precision linear bearings, which ride on hardened steel ways. These precision guideways require no adjustment, and the servo motors consume less power
  • The automatic tool setter is an option on T/LTC series machines
  • LEADWELL unique parts catcher improves productivity with bar feeder option. It automatically rotates into to position under the finished part and transfers it outside the operator door.
  • LEADWELL offers two options that turn their CNC lathes into make a multi-process turning center. These options provide the benefits of a lathe, plus extra versatility of a machining center.
  • Powerful, compact, mass production turning center with a number of references in South Africa

LEADWELL VIDEO T-5iM
