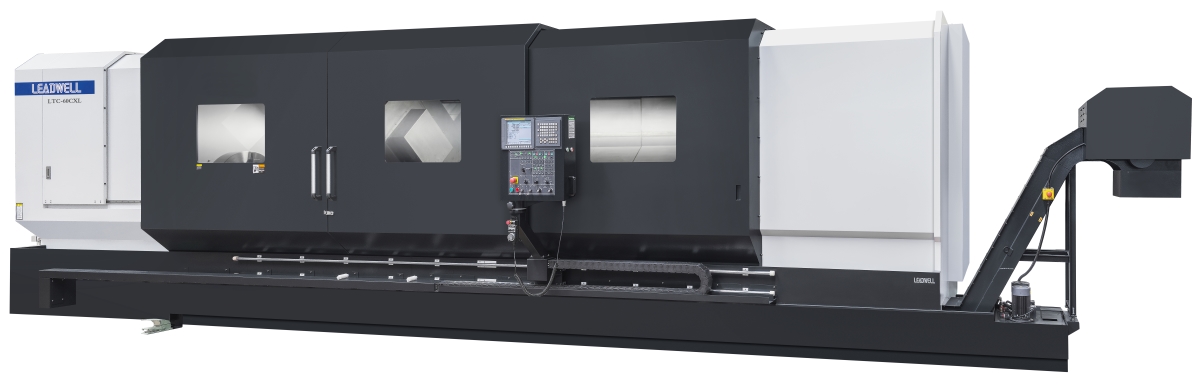

LTC60

Slant Bed Turning Centers

LTC60

Max. swing 1020mm
Bar capacity 117mm
X axis travel 400+28/437+18/VDI 60430+25/BMT 75320+10mm
Z axis travel 5000/6000mm
Y axis travel ±100mm
Spindle speed 1500rpm
Chuck size  533mm
  • Heavy Duty Turret - The T/LTC series turret features a robust casting and a large coupling face adding extra rigidity to the machine
  • Cast Iron Construction
  • Cartridge Type Spindle
  • LEADWELL uses only premium quality preloaded double-nut ball screws
  • The heavy-duty tailstock is attached to the lower guide of the machine base. The heavy casting, large diameter quill and precision Morse taper center provide outstanding rigidity
  • High Speed Linear Motion Guides - All servo motor driven axes are mounted on precision linear bearings, which ride on hardened steel ways. These precision guideways require no adjustment, and the servo motors consume less power
  • The automatic tool setter is an option on T/LTC series machines
  • LEADWELL unique parts catcher improves productivity with bar feeder option. It automatically rotates into to position under the finished part and transfers it outside the operator door.
  • LEADWELL offers two options that turn their CNC lathes into make a multi-process turning center. These options provide the benefits of a lathe, plus extra versatility of a machining center.
  • Sub-Spindle Option
  • Live Tooling Option
  • C-Axis Option
