Lathes

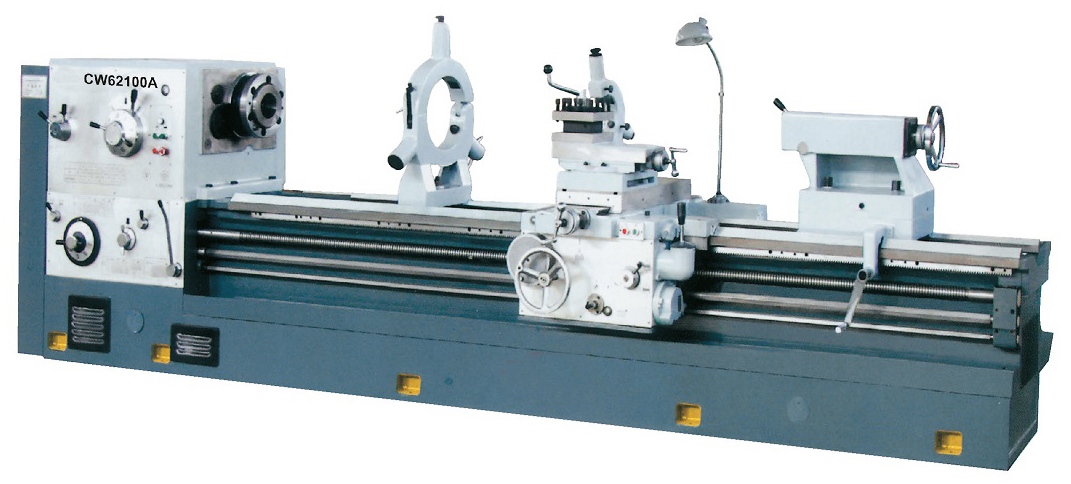

CW series
| Max. swing over bed | 1000mm |
| Max. swing over carriage | 720mm |
| Center distance | 750mm/1000mm/1500mm/2000mm |
| 3000mm/4000mm/5000mm/6000mm | |
| Width of gap | 320mm |
| Swing over gap | 1230mm |
| Width of guide way | 550mm |
| Spindle bore diameter | 130mm |
| Spindle speed | (18 speeds) 7.5~1000rpm |
| Longitudinal feed | (64) 0.1~24.3mm/r |
| Cross feed | (64) 0.05~12.15mm/r |
| Rapid traverse speed | 3.8m/min |
| Metric thread | (39)1~240mm |
| Inch thread | (26) 14~1TPI |
| Module thread | (53) 0.5~120mm |
| Diametrical pitch thread | (24) 28~1 |
| Max. travel of cross slide | 493mm |
| Travel of top slide | 200mm |
| Main motor power | 11kw |
| Rapid traverse motor power | 1.1kw |
| Coolant pump motor power | 0.09kW |
Features
- Heavy Duty Machine for long turning lengths
- Precision Ground Bed Ways
- Fully Encloded Feedbox
- 3-jaw chuck
- Steady rest
- Center tools
- Face plate
- Drive plate
- Toolpost guard
- Chuck guard
- Full splash guard
- Foot brake.
