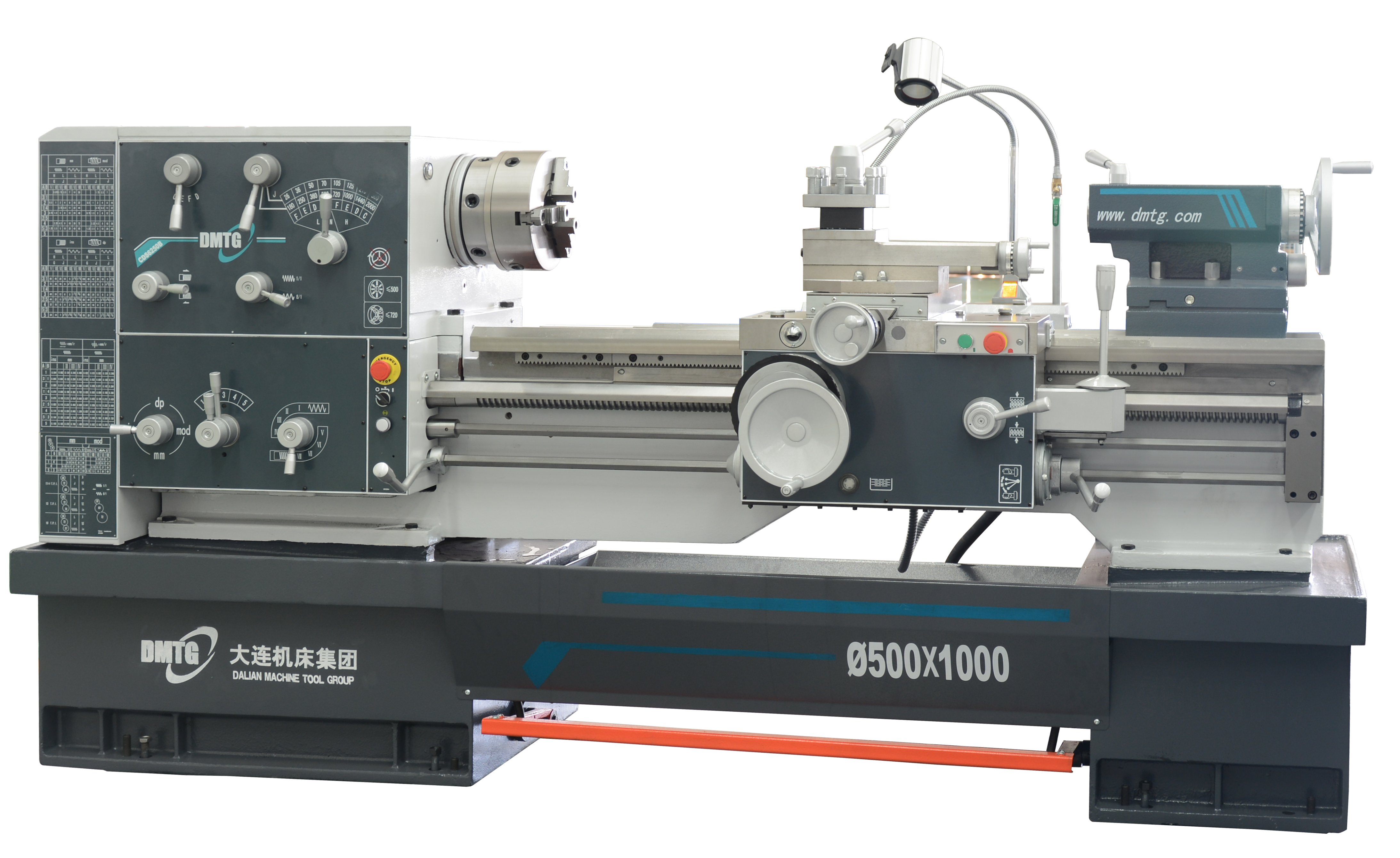

CDS6250
| Swing over bed | 500mm |
| Swing over cross slide | 290mm |
| Swing over gap | 760mm |
| Gap length | 280mm |
| Dist. centers | 750/1000/1500/2000/3000 |
| Spindle bore | 82/105 |
| Taper of spindle bore | 90/1:20 |
| Spindle nose | D8 |
| No. of Spindle speed | 16 |
| Spindle speed ranges | 26-2000/26-1700rpm |
| Maximum spindle motor power | 705kw(3/10HP) |
| Width over bedways | 394 mm |
| Cross slide travel X axis | 355mm |
| Travel of top side | 150mm |
| Max. dimension of tool shank | 25 x 25 mm |
| Range of Imperial Pitches | 7/16-80 TPI |
| Range of Diametral Pitches | 7/8-160DP |
| Range of Metric Pitches | 0.35-80 mm |
| Range of Module Pitches | 0.2-40 MOD |
| Tailstock quill diameter | 75 mm |
| Tailstock quill taper | No. 5MT |
| Tailstock quill travel | 150 mm |
Features
- 3-jaw chuck
- Steady rest
- Center tools
- Face plate
- Drive plate
- Toolpost guard
- Chuck guard
- Full splash guard
- Oil gun
- Foundation bolts
- Tool brake
