V-30iT

What We Do

5-Axis Machining Centers

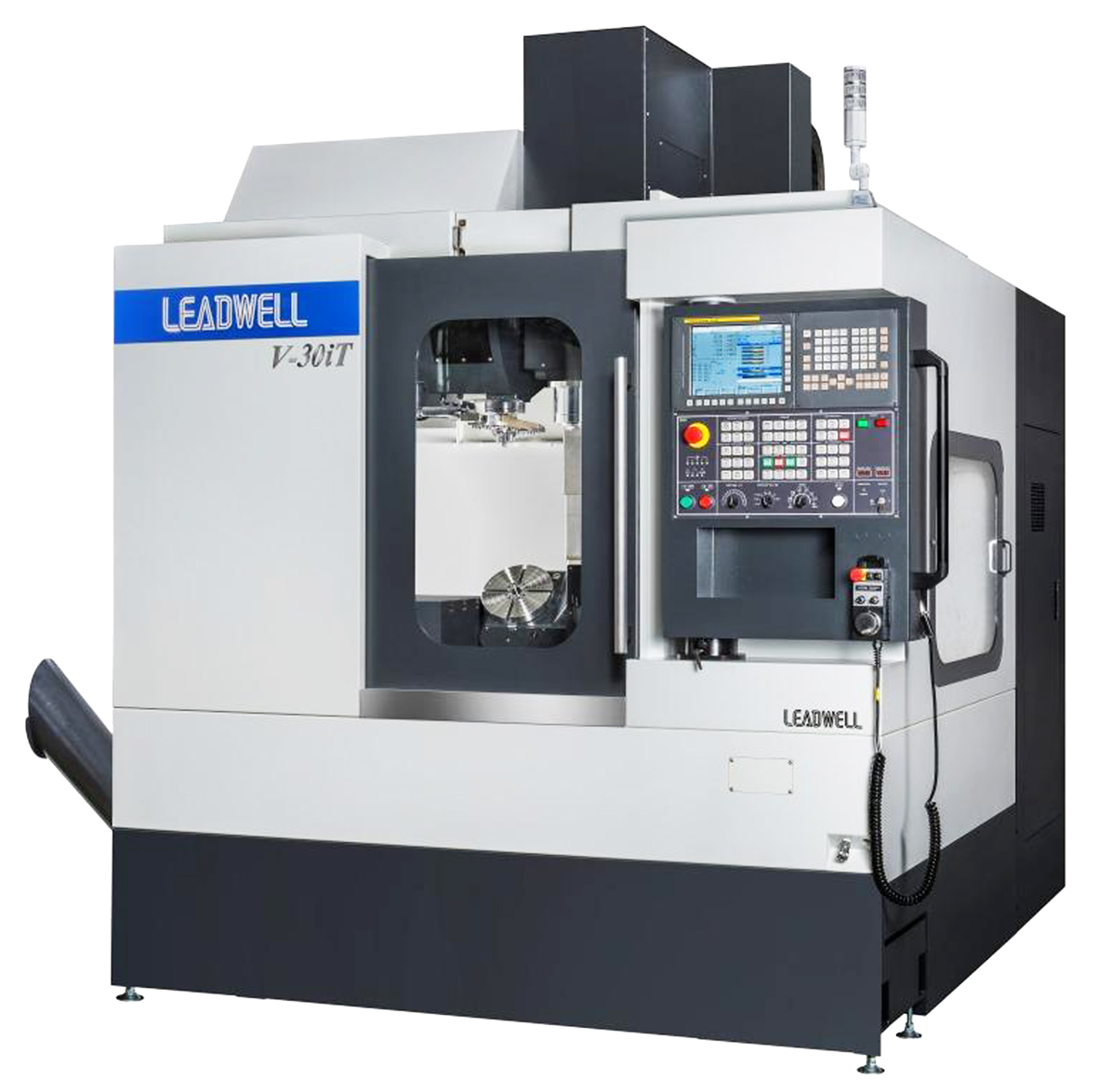

V-30iT

• Rigid cross roller linear ways in XYZ-axis

• X-axis travel 800mm

• Y-axis travel 460mm

• Z-axis 390mm

• 48m/m rapids in X- and Y-axis

• 36m/m rapids in the Z-axis

This versatile V-30iT features an 8.07 diameter integrated trunnion rotary table that holds a load of up to 35 kgs from 0-45 degrees and 25 kgs in the 60-90 degree range. The rotary tabletop surface is precision ground with 10mm T-slots. The included standard flat worktable measures 300 x 450mm and can be removed for any custom fixture required by the application.

  • Available as 4+1 , 3+2 configurations
  • Fully enclosed guarding
  • Auger Type Chip conveyor (Chain Type Opt.)
  • LED Lighting
  • Coolant Gun
  • Coolant Through Spindle Preparation
  • Remote MPG with emergency stop
  • Base Flushing System
  • Spindle Coolant Ring
  • 24 Position Arm Type ATC
  • 10000rpm spindle (Ceramic Bearing)
  • Options of 8000rpm Steel Bearing , 12000rpm Ceramic Bearing Spindes
  • Available with Fanuc Oi control only
