5-Axis Machining Centers

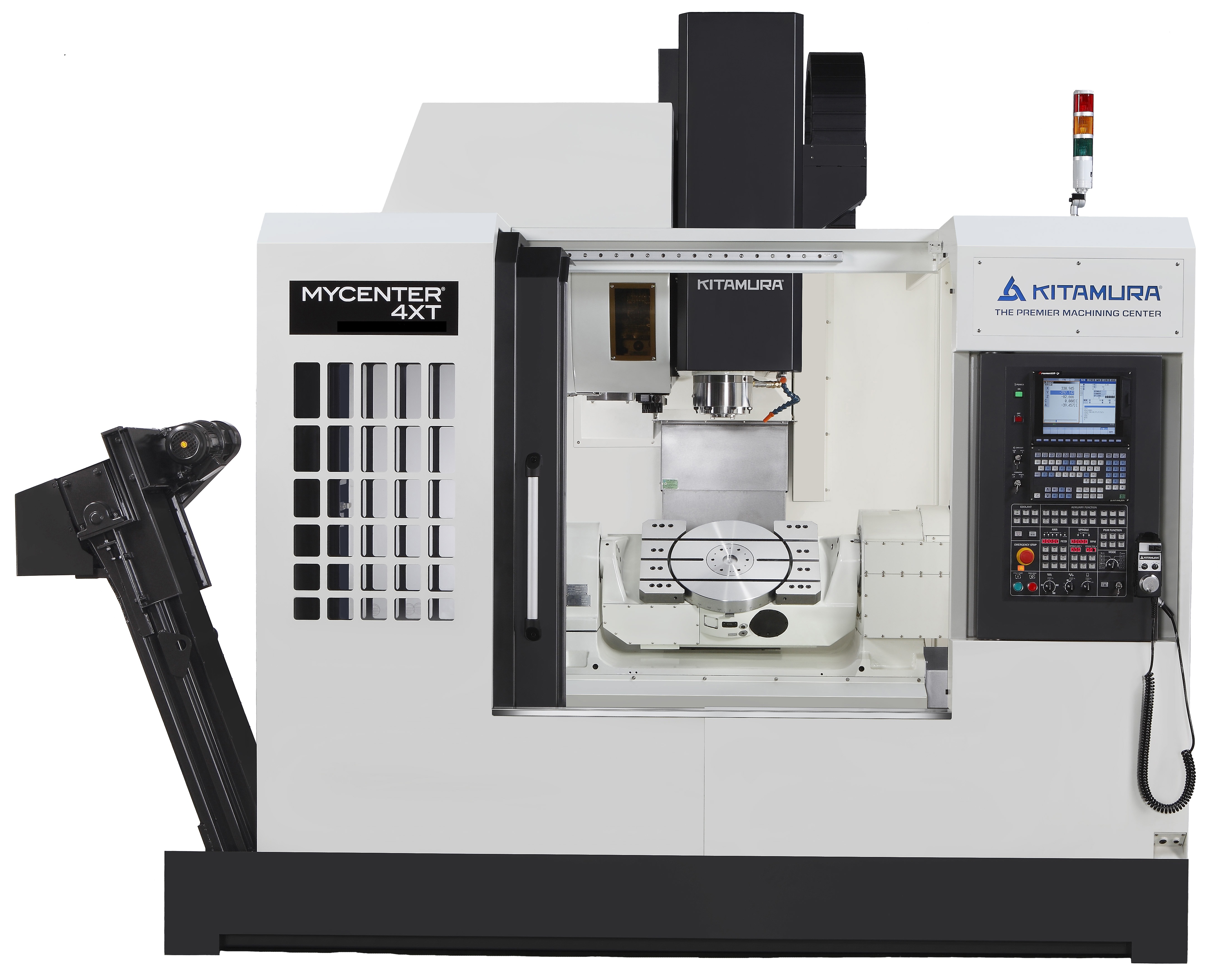

Mycenter-4XT
| Rotary Table Size | 400mm |
| w/Full Table Length | 365x600mm |
| Travel (X, Y, Z) | 800x610x510mm |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 15,000rpm |
| Tool Storage Capacity | 30 Pcs |
| Tool Change Time (T-T/C-C) | 2.5 Sec/7.0 Sec |
| Rapid Feed (X, Y, Z) | 36m/min |
| Power Requirement | 35KVA |
- Built-in 4th/5th Axis Trunnion Table
- Rigid solid box guideways incorporate a unique 4-slideway base construction for optimum rigidity
- High speed rapids of 1417ipm (X, Y & Z) boosts work throughput
- High speed 15,000rpm, 35HP, Dual Contact Spindle
- Standard base wash system, internal chip augers and scraper type chip conveyor
- Plumbed for coolant thru the spindle (220psi/1000psi option)
- Affordably priced and feature packed!
