5-Axis Machining Centers

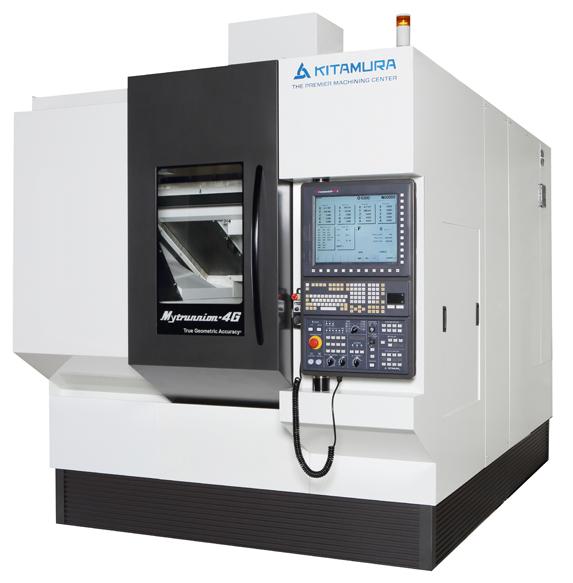

Mytrunnion-4G
| Table Size: 15 | 400mm round dia, 550mm round dia opt. |
| Travel (X, Y, Z) | 610x610x500mm |
| Travel (A, C) | -120~+30 deg/0~360 deg |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 40~20,000rpm |
| Tool Storage Capacity | 50Pcs |
| Tool Change Time (T-T/C-C) | 5.9 Sec/9.4 Sec |
| Rapid Feed (X, Y, Z) | X&Y 50m/min Z- 25m/min |
| Rapid Feed (A, C) | 18,000 deg/min (50rpm) |
| Power Requirement | 45KVA |
- Ideal for ultra-high precision simultaneous 5-axis machining
- Positioning Accuracy: ±0.000039” Full Stroke, Repeatability: ±0.00002”
- Sliding overhead door allows for easy workpiece loading/unloading
- Powerful #40, 15,000rpm, 15HP Direct Drive, Dual Contact Spindle. Optional HSK-A63 Spindle Configuration available
- Linear Scale Feedback on all Axes
- Expansive 21.7"Dia. x 15.7"H (550 x 400mm) work envelope beats the competition
- Highest grade meehanite cast iron construction for superior vibration absorption and improved surface finishes
