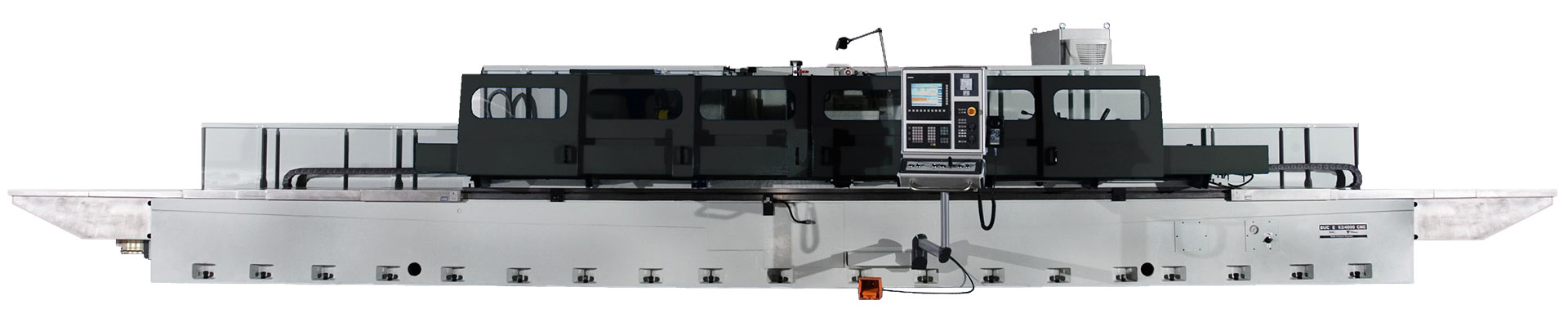

BUC E CNC Grinding machine

Cylindrical Grinding

BUC E CNC Grinding machine

Swing diameter 630 / 850mm
Distance between centers 2000 / 3000 / 4000 / 5000mm
Max. weight of workpiece 3000kg
Wheel head swivel +30°/-10°(manual)
Max. number of used tools 1+1
Grinding wheel dimensions 750 x 100 x Ø 305mm
Wheel head motor power 18.5kW







The BHM Grinder is designed for controlled grinding of cylindrical and conical external surfaces of medium-weight workpieces by use of longitudinal or plunge-cut grinding methods. Form grinding and grinding of various transitions among different diameters can be performed. The BHM also allows grinding of face surfaces and cylindrical and conical internal holes by using the internal grinding attachments. The workpieces may be clamped between centers or by using flying-mode into the chuck. The drive headstock as well as grinding wheel head may be inclined for grinding cones. It is possible to grind either at the centers or in flying-mode with the workpiece clamped in the chuck or on the magnetic plate.

The grinding wheel head and table are moved in the line by ball screws and servomotors. The BUC E CNC is designated for workpieces weighing up to 3 000kg.
