BHC Cylindrical Grinder - 5 ton

Cylindrical Grinding

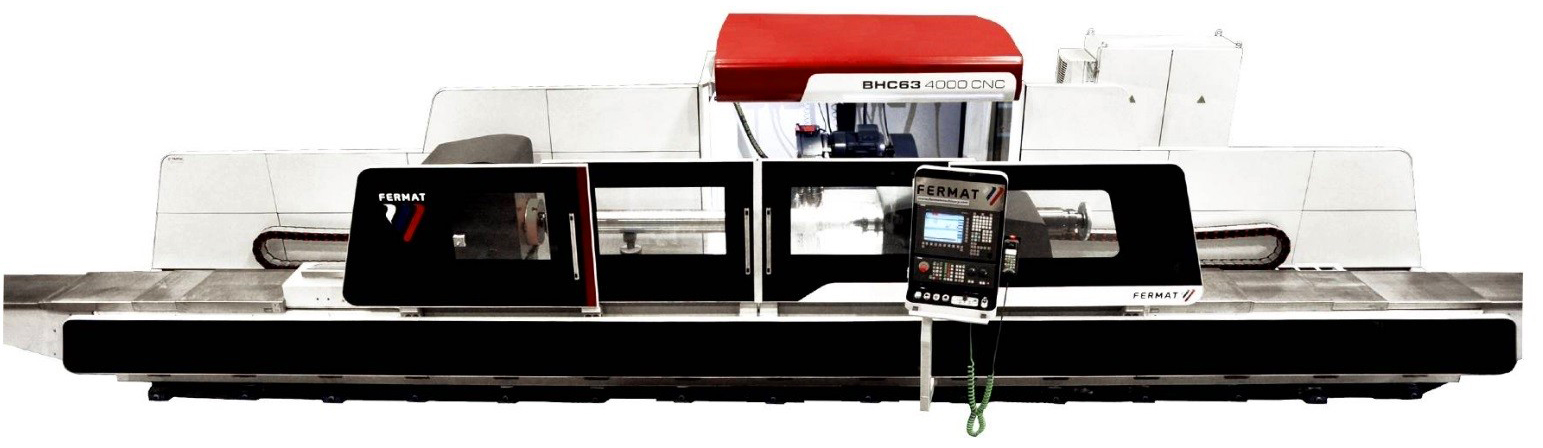

BHC Cylindrical Grinder - 5 ton

Swing diameter 630/850/1000/1200mm
Distance between centers 2000/3000/4000/5000/6000mm
Max. weight of workpiece 4000/5000kg
Wheel head swivel +30°/-30°(manual)
Max. number of used tools 1+1
Grinding wheel dimensions 750x100x305mm
Wheel head motor power 18,5kw




Without controlled B-Axis.

The BHCR is a fully CNC controlled grinding machine with controlled X-Axis (grinding wheel head in-feed), Z-Axis (longitudinal table feed), controlled C-Axis (grinding wheel peripheral speed).

Designed primarily for CNC controlled grinding performed on external cylindrical surfaces of various diameters, and their adjoining face areas and radiuses, including automatic dressing by the CNC dresser, and stabilization via the CNC system. The machine can be equipped with automatic balancing system, in-process gauge, axial probe, super finish attachment, automatic (electric) rests, XZ ruler etc.

The BHC can perform grinding with longitudinal feed and a moving table, plunge-cut grinding with a fixed or oscillating table, grinding in the cycle of plunge-cut,and longitudinal grinding.

The grinding wheel head feed-in and table carriage are driven by servomotors and ball screws. The BHC center grinding machine represents a very stable and accurate machine that can be used for a series production applications, including single-part production for workpieces up to 4000 kg. 5000kg optional.
