0860 INTERNAL THREAD GRINDER

What We Do

Thread Grinding

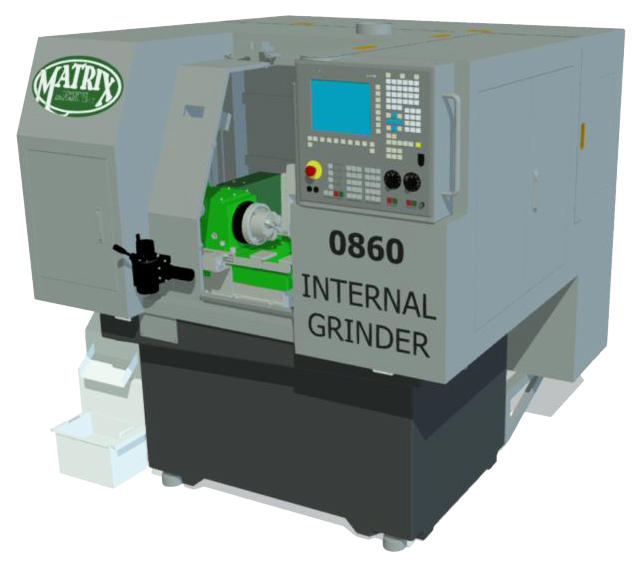

0860 INTERNAL THREAD GRINDER
Max Diameter Swing           160mm
Max Diameter Ground Bore           80mm
Min Diameter Ground Bore           20mm
Length of Ground Bore           20~60mm

Work Head: (C Axis)
Torque Rating           47.8N-m
Work Speed Range           1 to150 RPM
C Axis Resolution           (TBC)

Wheel Head:
High Frequency Spindle           12000~20000RPM
Helix Capacity (Manually adjustable)           ±10°

Wheel Head: (Z Axis)
Table Slide Travel           90mm
Table Slide Position Resolution           (TBC)
Table Slide Traverse Speed           0 to 0.3 M/min

Wheel Head; (X Axis)
Wheel Head Slide Travel           90mm
Wheel Head Position Resolution           (TBC)
Wheel Head Slide Traverse Speed           0 to 1.5 M/min

Wheel Dressing Unit:
Pedestal Mounted           Manually adjustable helix ±10°
Variable Speed           0 to 3000RPM
Dressing Feed Rate           Programmable

Control System:
CNC System           SIEMENS 808D
System Specification           SIEMENS
User Interface           MATRIX HMI
8″ Colour TFT Screen           SIEMENS 808D
Operating & Programming           MPF & SPF

Machine- Physical:
Approx. Gross Machine Weight           3,500 Kg
Approx Machine Floor Area           1900mm(Wide)x1800mm(High)x1800mm(Deep)



Max Diameter Swing 160mm, Max Diameter Ground Bore 80mm, Min Diameter Ground Bore 20mm, Length of Ground Bore 20~60mm, Work Head: (C Axis) Torque Rating 47.8N-m, Spindle speed: 3000 rpm (18,850 rad.min-1)
