0850 EXTERNAL THREAD GRINDER

What We Do

Thread Grinding

0850 EXTERNAL THREAD GRINDER
Max Diameter Admitted           350 mm
Max Diameter Ground           350 mm
Min Diameter Ground           10 mm
Max Length Between Centres           800 mm
Max Length of Thread Ground Between Centres           800 mm (Component Dependent)
Lead Range           300 mm

Work Head: (C Axis)
Servo Motor Rating           154 Nm @ 120 RPM
Work Speed Range           0.4 to 120 RPM
C Axis Resolution           0.001⁰

Wheel Head:
Spindle Power           8.8 Kw @ 2000 RPM
Automatic Balancing           Integral Dynamic Balancing Unit
Helix Capacity (A axis)           ± 45⁰

Capacity (Z Axis)
Table Slide Travel           950 mm
Table Slide Position Resolution           0.0001 mm
Table Slide Traverse Speed           0 – 7 M/Min

Capacity: (X Axis)
Wheel Head Slide Travel           360 mm
Wheel Head Position Resolution           0.0001 mm
Wheel Head Slide Traverse Speed           0 – 7 M/Min

Wheel Dressing Unit:
Work Head Mounted           Fixed
Variable Speed           0 ~ 6000 RPM (Bi-Directional)
Dressing Feed Rate           Programmable

Control System:
CNC System           Siemens 840 DE Solution Line
System Specification           PCU50.5
User Interface           Siemens HMI Advanced Software
10.4″ Colour TFT Screen           Resolution 640 x 480 Pixels
Operating & Programming           Matrix Advanced Programming

Machine – Physical:
Approx Gross Machine Weight           10000 Kg
Approx Machine Floor Area           5100 mm x 4200 mm

NOTE: These capacities are subject to inevitable restrictions, depending upon wheel head, Helix Angle, Work Holding, and Support Equipment.

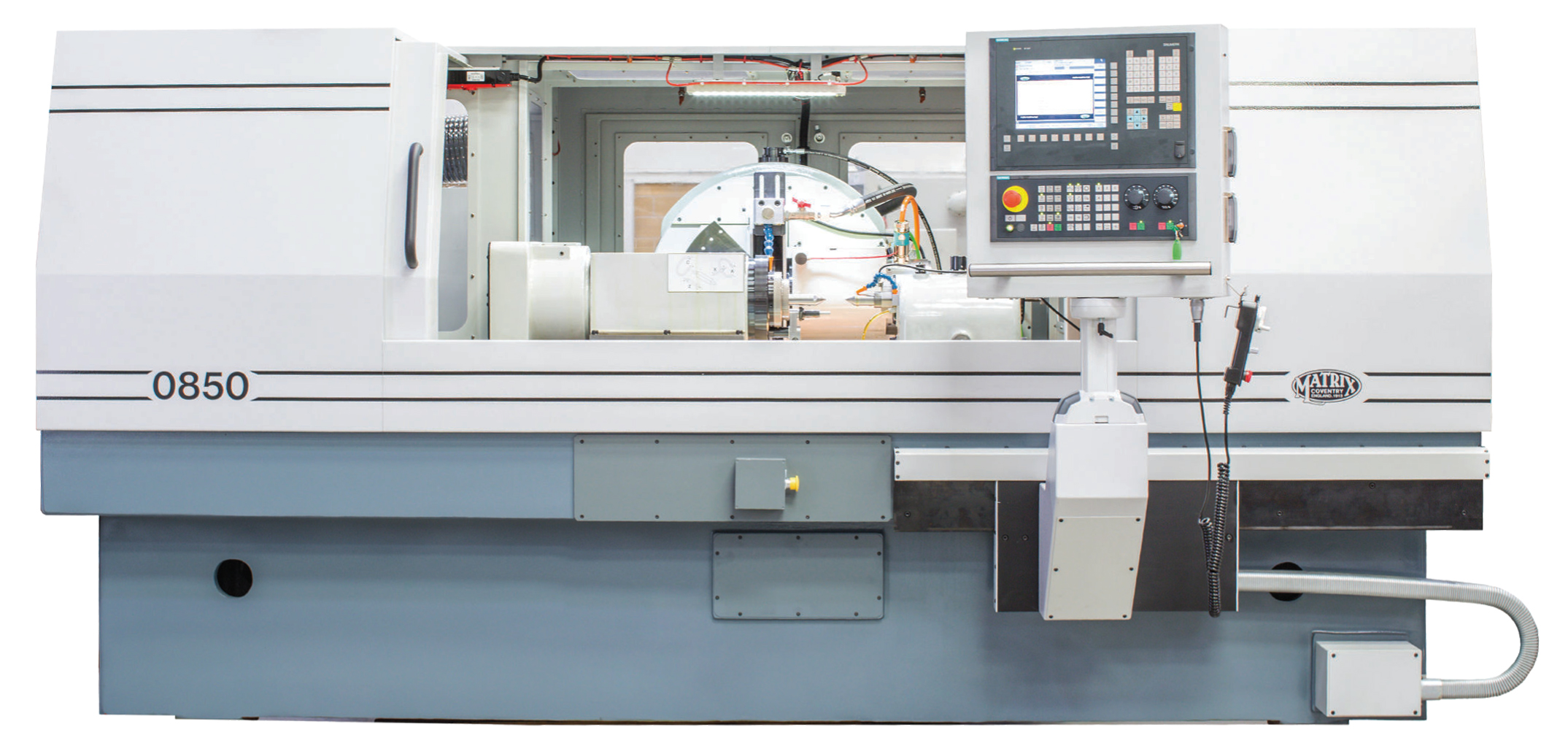

The 0850 is manufactured by Matrix Machine Tool. It is an external grinding machine. with a size of 2.1 m x 1.7 m. This machine can allow components up to 800 mm between centers, and can bear a maximum load of 100 kg.

This unit is suitable for applications as thread rolls, duplex worms and manufacturer of large gauges including API. As standard, the unit is supplied with a patented profile software, and coolant system with chiller.
