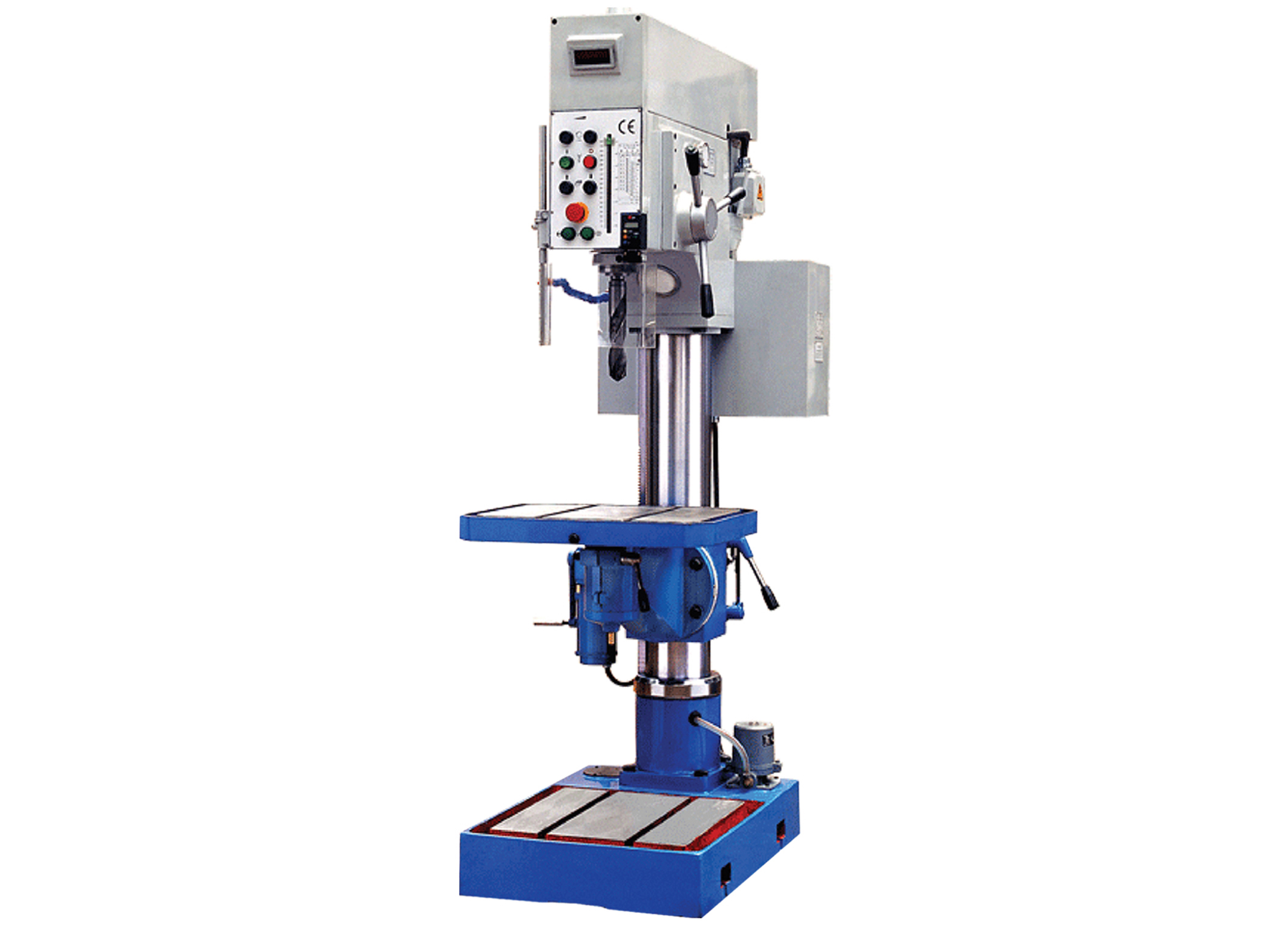

Z5050

Geared Head

Drilling capacity	50mm
Tapping capacity	M30
Diameter of column	160mm
Spindle travel	240mm
Distance spindle axis to column	360mm
Max.Distance spindle nose to table	600mm
Max.Distance spindle nose to base	1200mm
Spindle taper	MT4
Spindle speed range	2460rpm
Number of spindle speeds	12
Spindle feeds	4
Feed rates mm/rev	0.1, 0.2, 0.3, 0.4
Dimension of worktable surface	510×380mm
Max. travel of worktable	420mm
Dimension of base	450×440mm
Power of Main motor - 2 speed	2.2/2.8 Kw
Net Weight	690kg
