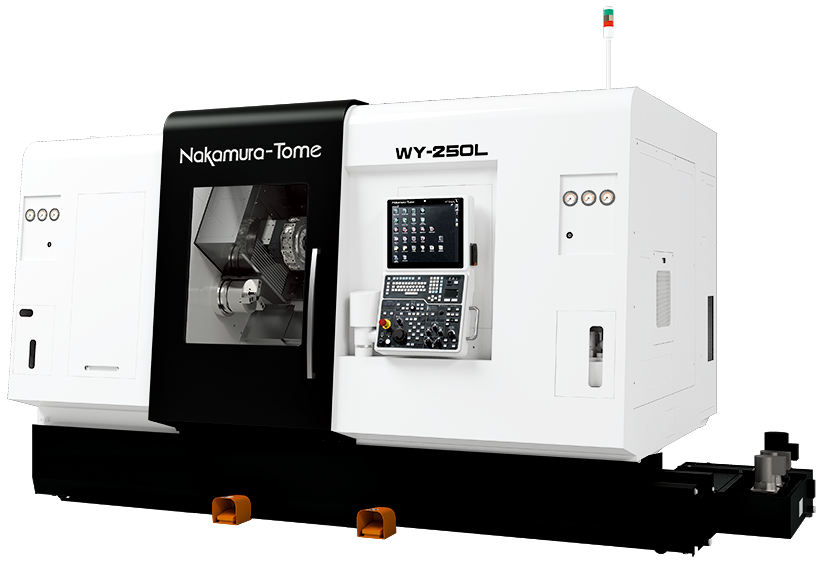

Multi Tasking Turning Center
WY250L
| φ51mm(Only R) | φ65mm(op.R) | φ71mm(op.) | φ80mm(op.) | |
|---|---|---|---|---|
| Max. Turning Diameter | 225mm | 180mm | ||
| Max. Turning Length | 910mm | |||
| Distance Between Spindles | max.1,200mm/min.255mm | |||
| L Bar Capacity | - | 65mm | 71mm | 80mm |
| R Bar Capacity | 51mm | 65mm | - | - |
| L Chuck Size | - | 8″ | ||
| R Chuck Size | 6″ | - | - | |
| L Spindle Speed | - | 4,500min-1 | 4,000min-1 | 3,500min-1 |
| L Spindle Drive Motor | - | 18.5/11kW, 26/22kW(op.)(※R-Spindle is automatically upgraded to 18.5/15kW) | ||
| R Spindle Speed | 5,000min-1 | 4,500min-1 | - | - |
| R Spindle Drive Motor | 15kW/11kW, 18.5/15kW(op.)(※L-Spindle is automatically upgraded to 26/22kW) | - | - | |
| Floor space | height:2,563mm(Maximum height of moving part) / width:4,620mm / depth:2,593mm | |||
A Multitasking Machine with Opposed Twin Spindles and Twin Turrets, Featuring A Y-axis on All Turrets as Standard
Distance between spindles 1,200mm.
Both Y-axes are standard.
Up to 48 Tools
Milling motor power 5.5/3.7kW, Max. Speed 6,000min-1.
L/R Spindle motor power: L 18.5/11kW, R 15/11kW.
(Op. L:26/22kW,R:18.5/15kW).
Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times.
