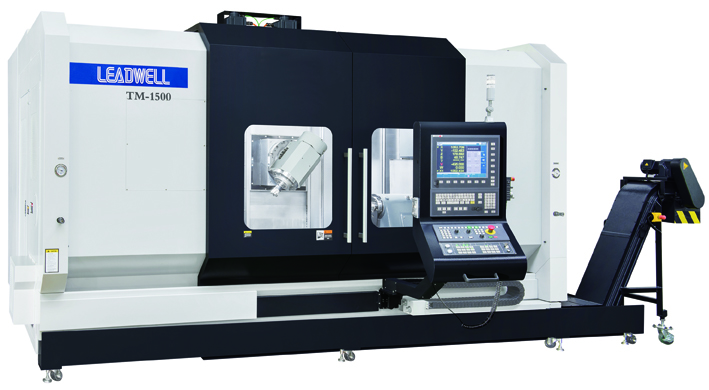

Multi Tasking Turning Center
TM 1500
| Max. swing mm (in) | 790(31) |
| Max. turning diameter mm (in) | 780(30.7) |
| Bar capacity mm (in) | 115(4.5) |
| X/Z/Y axis travel mm (in) | 730+40(28.7+1.57)/1550(61)/±200(7.87) |
| B axis travel mm (in) mm (in) | 240゜(-10゜~+230゜) |
| Spindle speed (chuck/electro) rpm | 1500/12000 |
| Chuck size mm (in) | 381(15) |
| Type of spindle nose | A2-11 |
| Spindle motor power Kw(hp) | 30(40) |
| Tool storage capacity | 40 |
| X/Z/Y axis rapid traverse m/min(imp) | 20/30/20(787.4/1181/787.4) |
Features
- The multi-function machine with B-axis can easy have bevel angle drilling and cutting work.
- The B-axis is driven by DD build-in motor, the best torque is 1200Nm, and with curved coupling it can easy do a heavy cutting job shop work and also curved surface milling.
- The machine use special Electro Spindle, the spindle speed can reach 12000rpm and torque 103Nm, it is a special machine can do first mill and end mill in the same machine.
- The Y-axis design is perpendicular type, and match with our moving column machine structure, the Y-axis have complete movement. It will not have dead space for the travel. (Y-axis travel +/-220mm).(applying for patent now.)
- 12”chuck (C-axis) + servo tailstock (M.T #5) + 40 tools ATC (Capto C6) + 1550mm Z-axis travel + B-axis (-100°~+140°)=Perfect machine.
