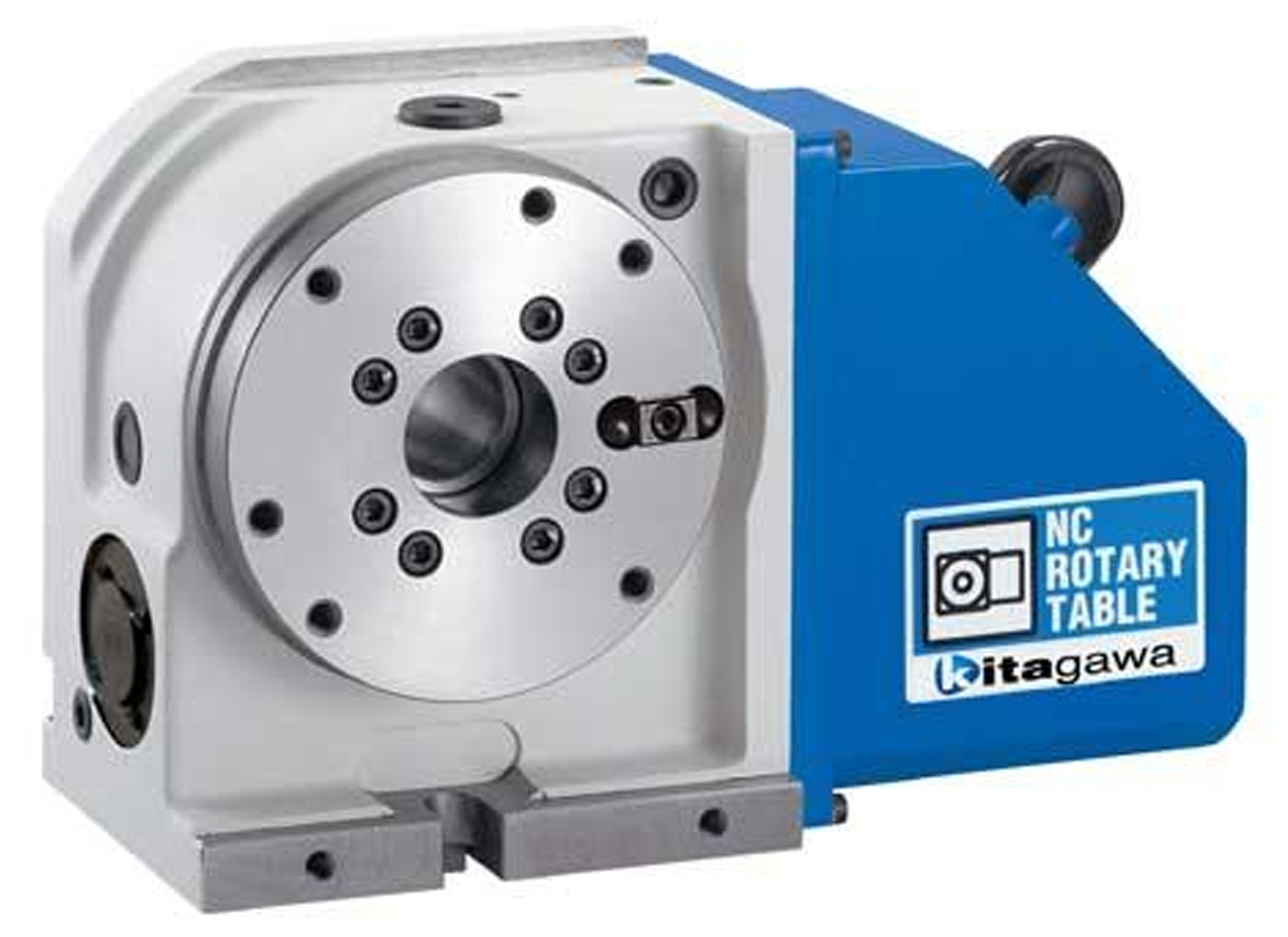

MR Series

4th Axis Table

MR Series

Model MR120 MR160 MR200
Right-handed type
Left-handed type
Table Diameter (mm) ø128 ø165 ø202
Centre Hole Diameter (mm) ø50H7 ø50H7 ø65H7
Through Hole Diameter (mm) ø32 ø40 ø45
Centre Height (mm) 120 140 140
Clamping Method Pneumatic Pneumatic Pneumatic
Clamping Torque (N・m)
(at 0.5 MPa)
150 310 350
Motor Axis Reduced Inertia
(kg・m2)
0.00004 0.00008 0.00017
Servomotor (for Fanuc spec.) αiF 2/5000-B αiF 2/5000-B αiF 4/5000-B
Total Reduction Ratio 1/60 1/72 1/90
Max. Rotation Speed (min-1) 50
(at motor 3000min-1)
41.6
(at motor 3000min-1)
33.3
(at motor 3000min-1)
Allowable Work Inertia (kg・m2) 0.22 0.51 1.00
Indexing Accuracy (sec) 20 20 20
Repeatability (sec) 4 4 4
Mass of Product (kg) 33 41 61
Allowable Load Horizontal (kg) 120 160 200
Vertical (kg) 60 80 100
Manual Tailstock (as an option) MR120RN MR160RN MR200RN
Tail Spindle (as an option) TSR121A MSR142A/TSR142A MSR142A/TSR142A
Rotary Joint (as an option) RJ32-12Q04
Hydraulic/Pneumatic 3 ports
RJ40H16Q
Hydraulic/Pneumatic 4 ports
RJ40H20Q02
Hydraulic/Pneumatic 4 ports

- Compact design
- Powerful pneumatic clamping torque by triple disk brake system
- High speed rotation
- High accuracy
- Built-in rotary joint as option
- Ideal for compact machining centers
