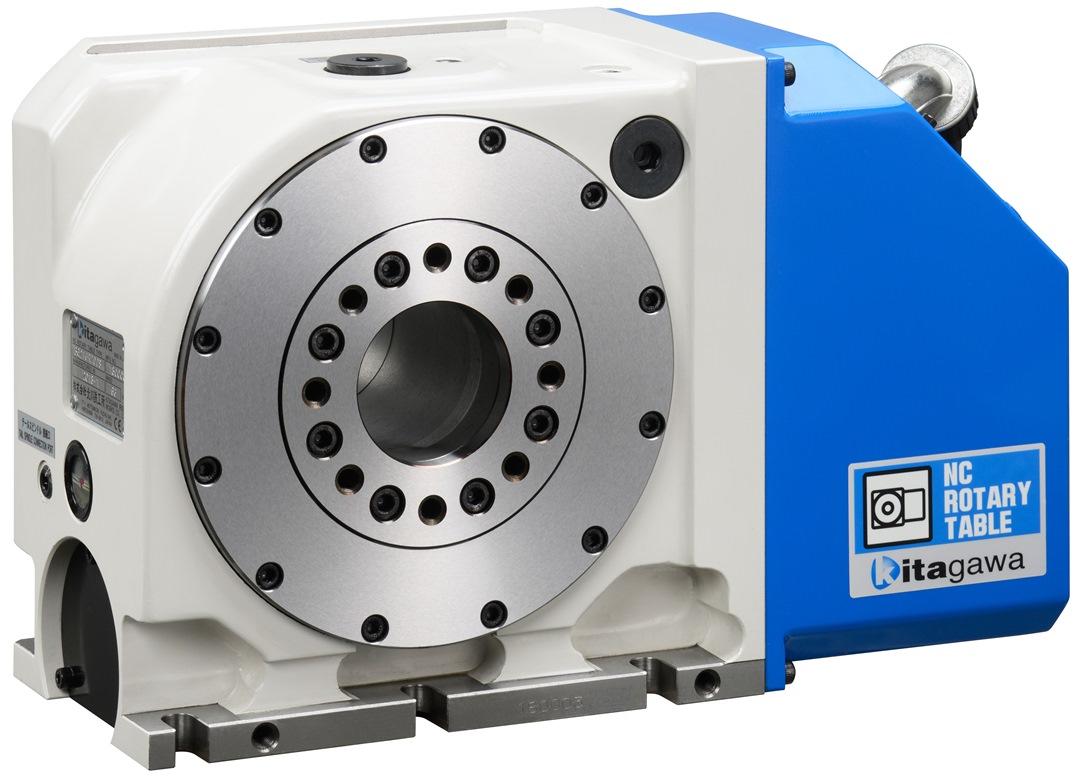

4th Axis Table
MK Series
| Model | MK200R/L | MK250R/L | |||
|---|---|---|---|---|---|
| Right-handed type | ○ | ○ | |||
| Left-handed type | ○ | ○ | |||
| Table diameter (mm) | ø 135 | ø 155 | |||
| Centre hole diameter (mm) | ø 65H7 | ø 70H7 | |||
| Through hole diameter (mm) | ø 70 | ø 70 | |||
| Centre Height (mm) | 140 | 180 | |||
| Clamping method | Pneumatic | Pneumatic | |||
| Clamping torque (N·m) (at 0.5MPa) |
570 | 1000 | |||
| Motor axis reduced inertia (kg·m2) |
0.000095 | 0.00041 | |||
| Servo motor (Fanuc spec.) | αiF4/5000-B | αiF4/5000-B | |||
| Total reduction ratio | 1/90 | 1/90 | |||
| Max. rotation speed (min-1) (at motor 3000min- 1) |
33.3 | 33.3 | |||
| Allowable work inertia (kg·m2) | 1.00 | 1.95 | |||
| Indexing accuracy (sec) | 20 | 20 | |||
| Repeatability (sec) | 4 | 4 | |||
| Mass of product (kg) | 60 | 95 | |||
| Allowable load | Horizontal (kg) | 200 | 250 | ||
| Vertical (kg) | 100 | 125 | |||
| Manual tailstock (Option) | MR200RN | MR250RN | |||
| Tail spindle (Option) | MSRC140/MSR142A | MSR181A | |||
- Performance improved, Powerful clamping torque
- Improved mounting, Reduced effective thickness and improved chip flow
- Wide selection of rotary joints, Multi-purpose hole for automation, High-pressure rotary joints for fixture miniaturization and fast actuation
