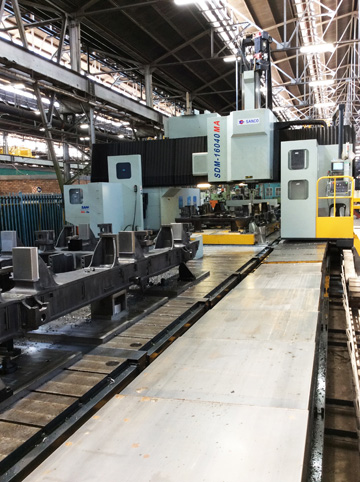

CNC Bridge Type
SDM16040MA
| Table size | 16000mmx3150mm(16000x4150mmOPT) |
| Table Length | 16000mm |
| Table Width | 3200mm(4150mm OPT) |
| T-slots | 28x10x250 |
| Maximum weight | 27 000kg |
| X/Y/Z Axis travels | 16200x4500x1400 |
| Vertical spindle nose to table | 100-1500mm STD (400-1800, 700-2100 Options) |
| Vertical Spindle Center to column | 485mm |
| Horizontal Head spindle center to table | 165-1415mm |
| Nose to Vertical Spindle | 1500mm |
| Distance Between Columns | 4000mm |
Head 1
| Horizontal Spindle speed | 3500rpm |
| Horizontal Head Min Indexing | 5 degrees |
| Horizontal head position accuracy | 0.02/300mm |
| Coolant Through Spindle | YES |
Head 2
| Horizontal Spindle speed | 3500rpm |
| Horizontal Head Min Indexing | 90 degrees |
| Horizontal head position accuracy | 0.02/300mm |
| Coolant Through Spindle | YES |
Head 3
| Horizontal Spindle speed | 3500rpm |
| Horizontal head position accuracy | 0.02/300mm |
| Coolant Through Spindle | YES |
Head 4
| Vertical Spindle Speed | 4200rpm |
| Vertical (with 60 position Auto Tool Changer) | 4000rpm |
| 90º Horiz (with 60 position Auto Tool Changer) | 3500rpm |
| No of tools | 60 tools |
| Max tool weight | 20kg |
| Auto Tool change Tool to tool time | Vert: 18sec / Horizontal: 13sec |
| Rapid federate X/Y/Z | 10/10/10m/min |
| Cutting | 0.001 |
| X axis accuracy | 8200-0.06/10200-0.07/12200-0.08 |
| Y axis accuracy | 0.04 |
| Z axis accuracy | 0.02 |
Sanco manufacture a full range of ruggedly constructed SDM series double column CNC machining centres designed for large mould and mould base machining. They are constructed with extra heavy duty linear guideways on X & Y axis and are available on Z axis as an option. The Z axis is hydraulically counter balanced for exceptional stability and smoothness.
Spindle & Head Options
- Spindle speed options: 4000, 6000, 8000, 10,000, 12,000, 15,000, 20,000rpm -
- dependant on spindle drive & taper configuration
- Spindle drive options: Direct drive, Direct ZF gearbox, belt driven ZF gearbox (std), inbuilt spindle motor
- Spindle taper options: BT50 (std) BT40 or HSK63A (opt)
Optional
- Automatic tool changer options (ATC)
- Milling heads (several styles available)
- Long nose spindle
- 4th Axis rotary table
- Thermal distortion compensation module
- Linear scale feedback
- Coolant through spindle (CTS)
- Work and tool measuring
- Control options: Fanuc/Siemens/Heidenhain
