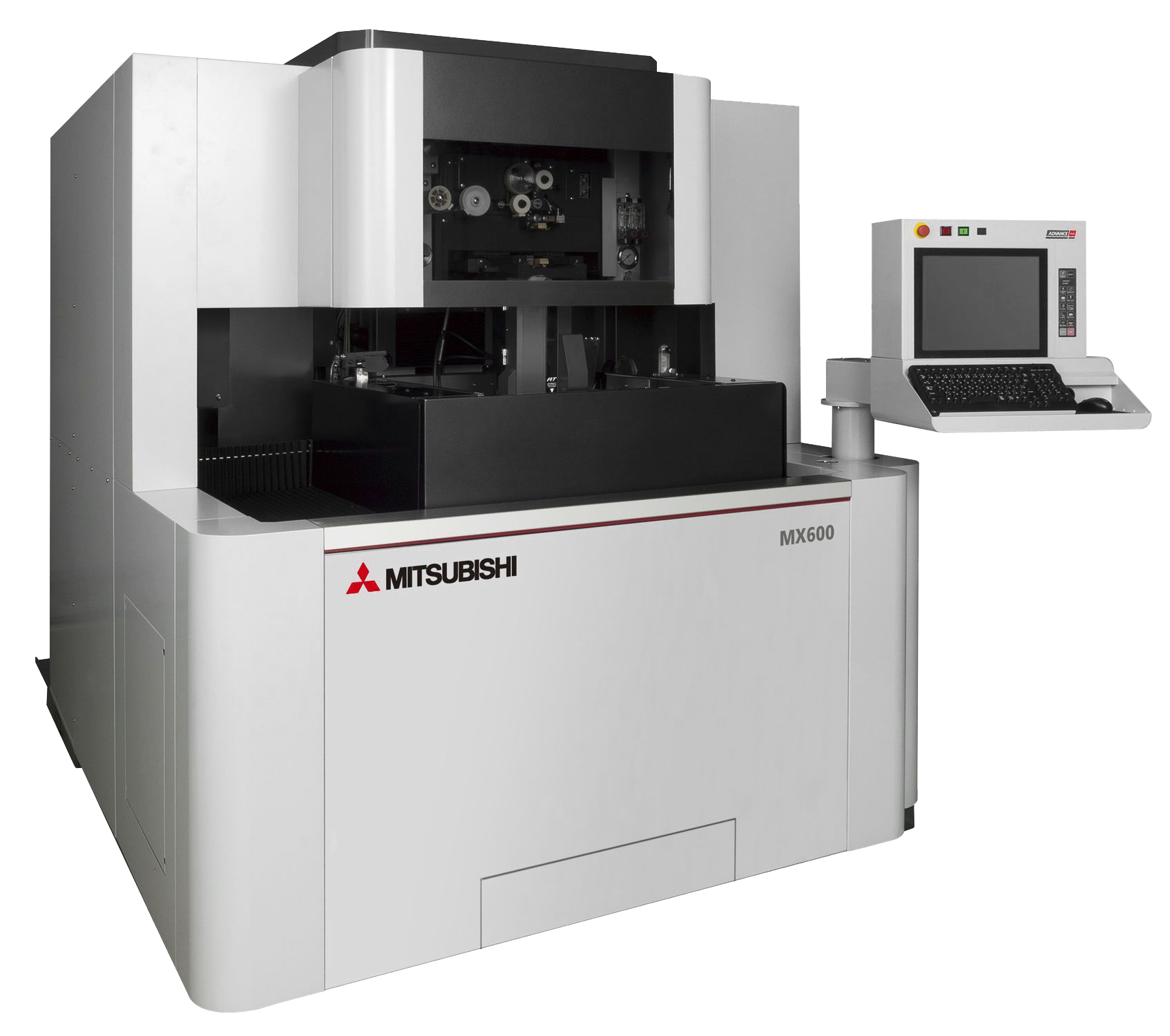

WEDM - MITSUBISHI
MX600 Advance Tubular
| Travel (X/Y/Z) in mm | 300 / 200 / 180 |
| Travel (U/V) in mm | 70 / 70 |
| Taper angle (workpiece height) in °/mm | 15 / 100 |
| Max. workpiece dimensions (W x D x H) in mm | 620 x 610 x 100 |
| Max. workpiece weight in kg | 300 |
| Table dimensions (W x D) in mm | 560 x 485 |
| Table layout | Hardened 4-side table |
| Possible wire diameters in mm | 0,03–0,20 |
| Wire spool capacity in kg | 10 |
| Automatic wire threader | Yes |
| Overall dimensions (W x D x H) in mm | 1970 x 2800x 2100 |
| Machine weight in kg | 3400 |
| Mains voltage | 3-phase 400 V/AC ± 10 %, 50/60 Hz, 20 kVA |
| Tank capacity in L | 300 |
| Temperature control | Dielectric cooling unit |
Features
- Advanced manual control box
- Oil specialized power supply (nPV power supply)
- Super finish circuit (nFS circuit)
- LAN/W • DNC
- File server connection (FTP)
- Angle Master (S/W)
- Anti-virus protection
- Sleep mode
